Danfoss 4TA6FJC6

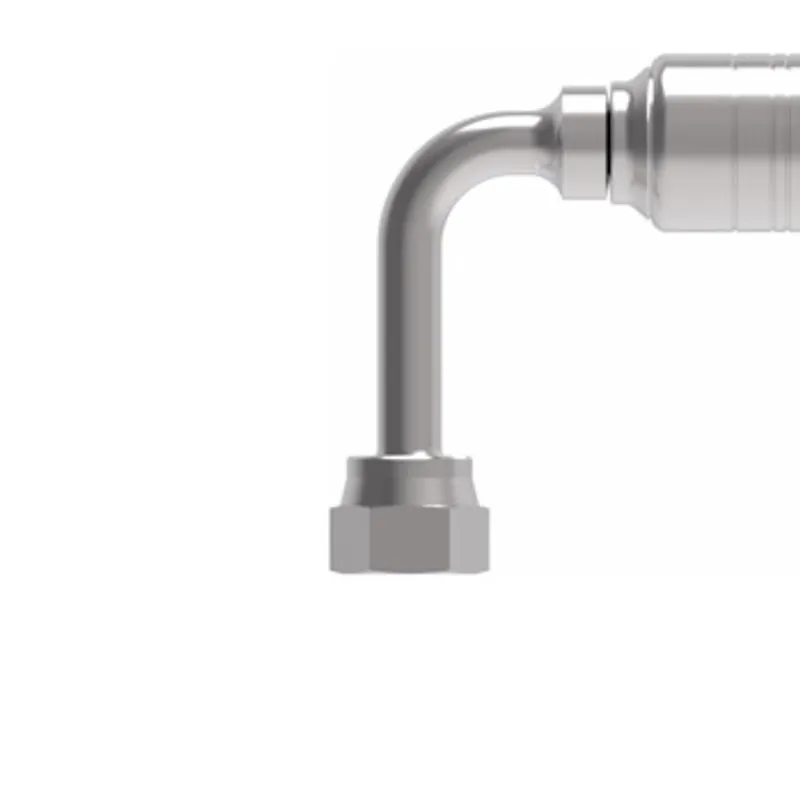

HOSE FTG, 4T/06, JIC-F/06, CS, 90D

MPN: 4TA6FJC6
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4TA6FJC6?

Danfoss HOSE FTG, 4T/06, JIC-F/06, CS, 90D, manufacturer part number 4TA6FJC6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	810903035227
A dimension IN	2.220
A dimension MM	56.300
Angle shape	90 Degree
Brand	Synflex Optimum by Danfoss
Compatible hose ID IN	0.380
Construction Style	Crimp
Drop dimension IN	2.180
Drop dimension MM	55.40
End size 1	-6
End type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.669
Hex size 1 MM	17.000
Hose cut off factor IN	1.230
Hose cut off factor MM	31.200
Inside diameter IN	0.240
Inside diameter MM	6.200
Product height in	3.030
Product height mm	76.962
Product length in	2.560
Product length mm	65.024
Product material	Carbon steel
Product width in	0.962
Product width mm	24.434 mm
Thread sealant	No
Thread size 1	9/16-18 UNF
Working pressure max BAR	400
Working pressure max PSI	5800
