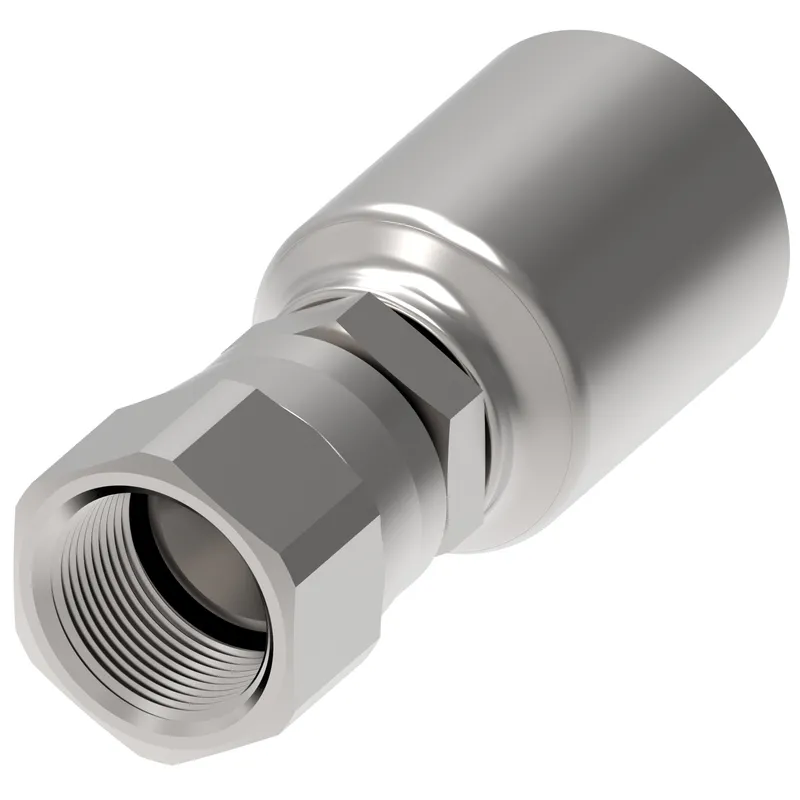

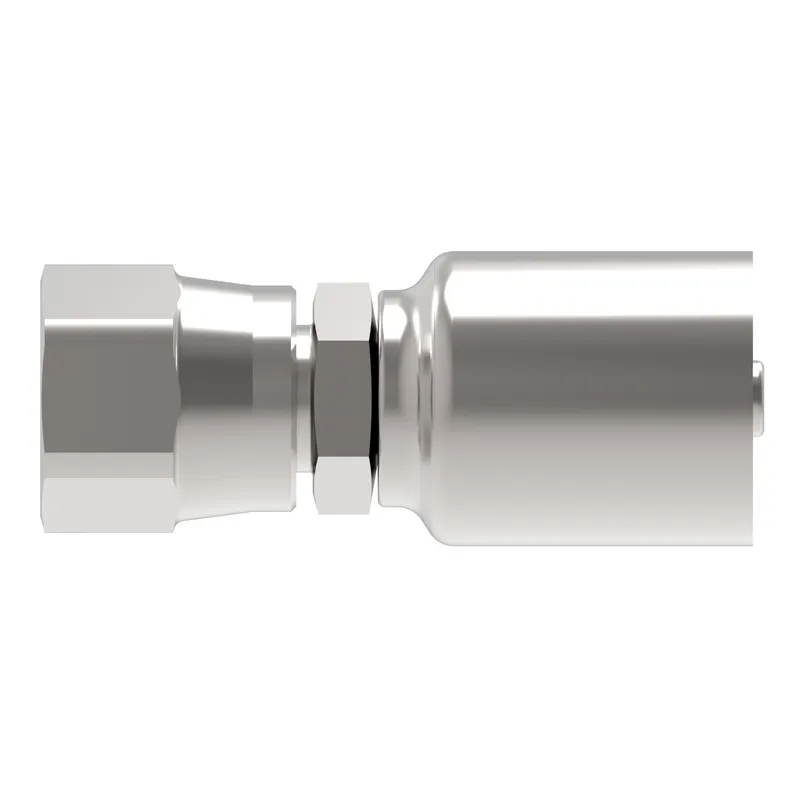

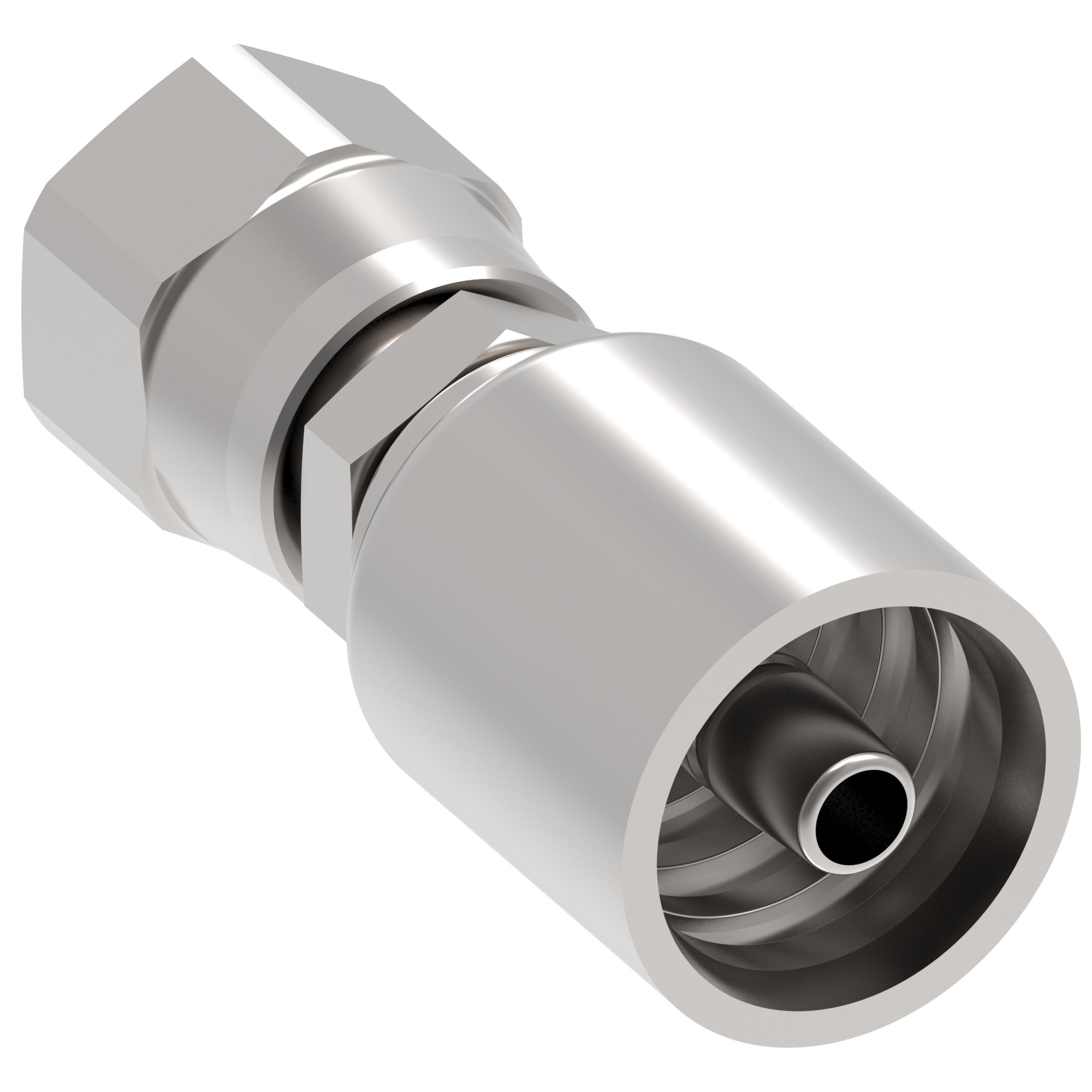

Danfoss 4TA6FJ4

HOSE FTG, 4T/04, JIC-F/06, CS, STR

MPN: 4TA6FJ4
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4TA6FJ4?

Danfoss HOSE FTG, 4T/04, JIC-F/06, CS, STR, manufacturer part number 4TA6FJ4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	810903035180
A dimension IN	2.150
A dimension MM	54.600
Angle shape	Straight
Compatible hose ID IN	0.250
Construction Style	Crimp
End size 1	-6
End type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.669
Hex size 1 MM	17.000
Hex size 2 IN	0.551
Hex size 2 MM	14.000
Hose cut off factor IN	1.106
Hose cut off factor MM	28.100
Inside diameter IN	0.170
Inside diameter MM	4.200
Product height in	0.826
Product height mm	20.980
Product length in	1.990
Product length mm	50.546
Product material	Carbon steel
Product width in	0.826
Product width mm	20.980 mm
Thread sealant	No
Thread size 1	9/16-18 UNF
Working pressure max BAR	400
Working pressure max PSI	5800
