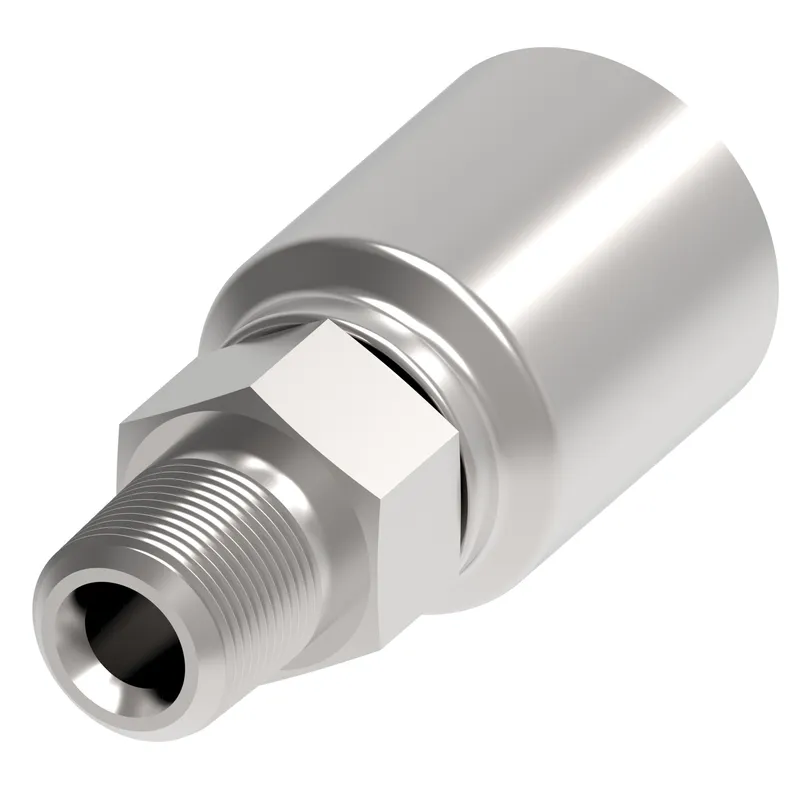

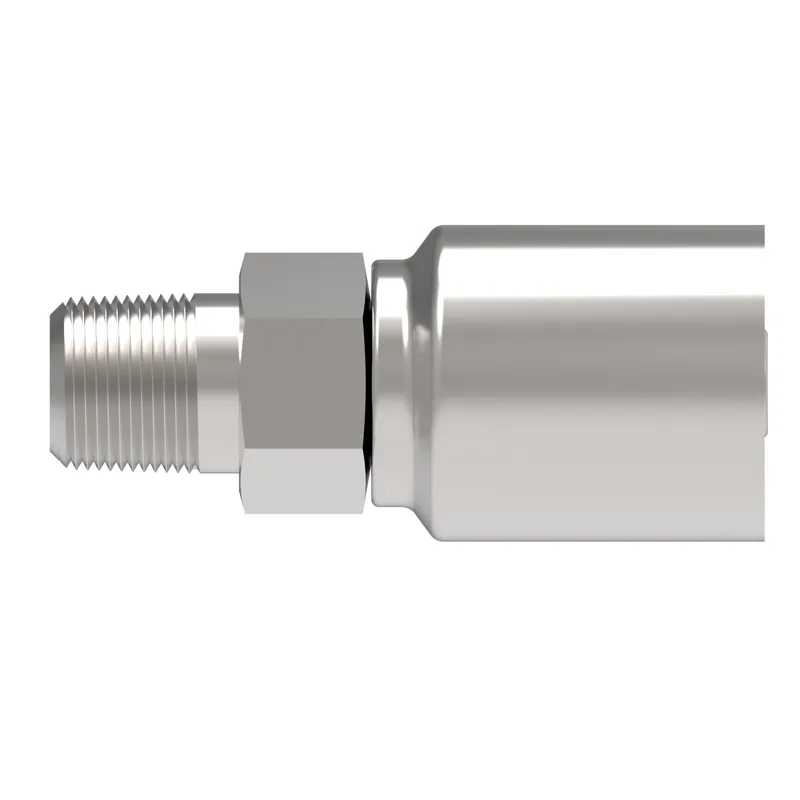

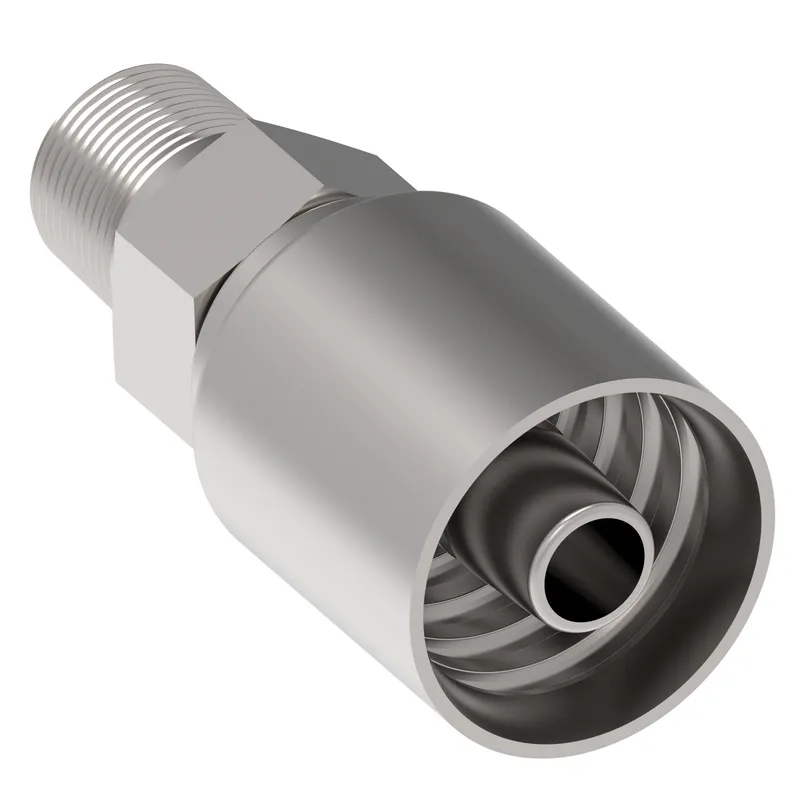

Danfoss 4TA4MP4

HOSE FTG, 4T/04, NPTF-M/04, CS, STR

MPN
4TA4MP4
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4TA4MP4?

Danfoss HOSE FTG, 4T/04, NPTF-M/04, CS, STR, manufacturer part number 4TA4MP4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC810903035029
A dimension IN2.030
A dimension MM51.500
Angle shapeStraight
Compatible hose ID IN0.250
Construction StyleCrimp
End size 1-4
End type 1Male pipe (NPTF)
Finish platingDura-Kote
Hex size 2 IN0.551
Hex size 2 MM14.000
Hose cut off factor IN1.140
Hose cut off factor MM28.900
Inside diameter IN0.170
Inside diameter MM4.200
Product height in0.826
Product height mm20.980
Product length in2.030
Product length mm51.562
Product materialCarbon steel
Product width in0.826
Product width mm20.980 mm
Thread sealantYes
Thread size 11/4-18 NPTF
Working pressure max BAR655
Working pressure max PSI9100

4TA4MP4: frequently asked questions

When can 4TA4MP4 be shipped?

4TA4MP4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 4TA4MP4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 4TA4MP4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4TA4MP4, subject to availability and destination.
