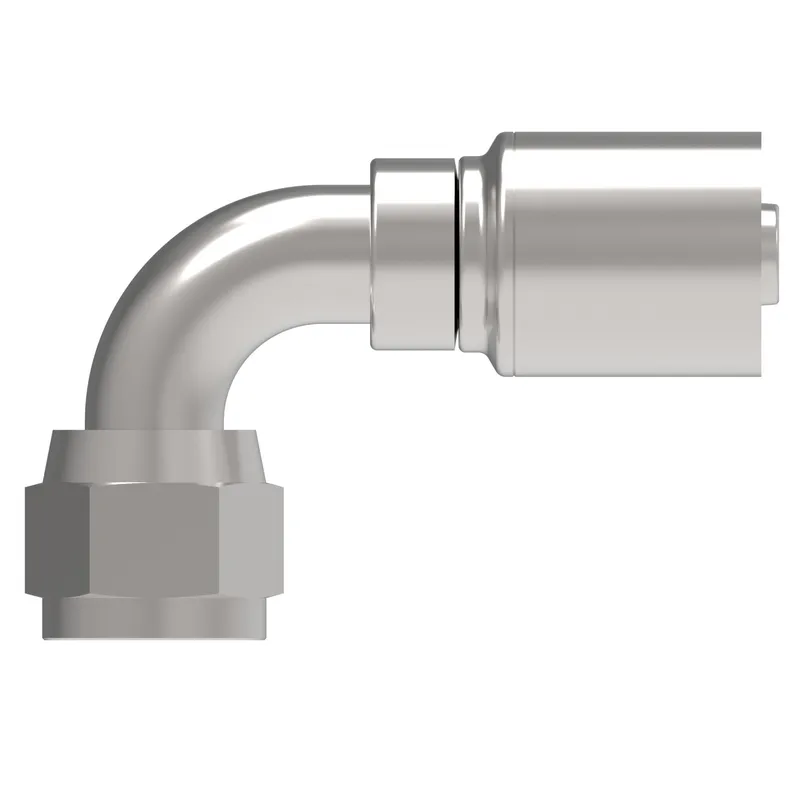

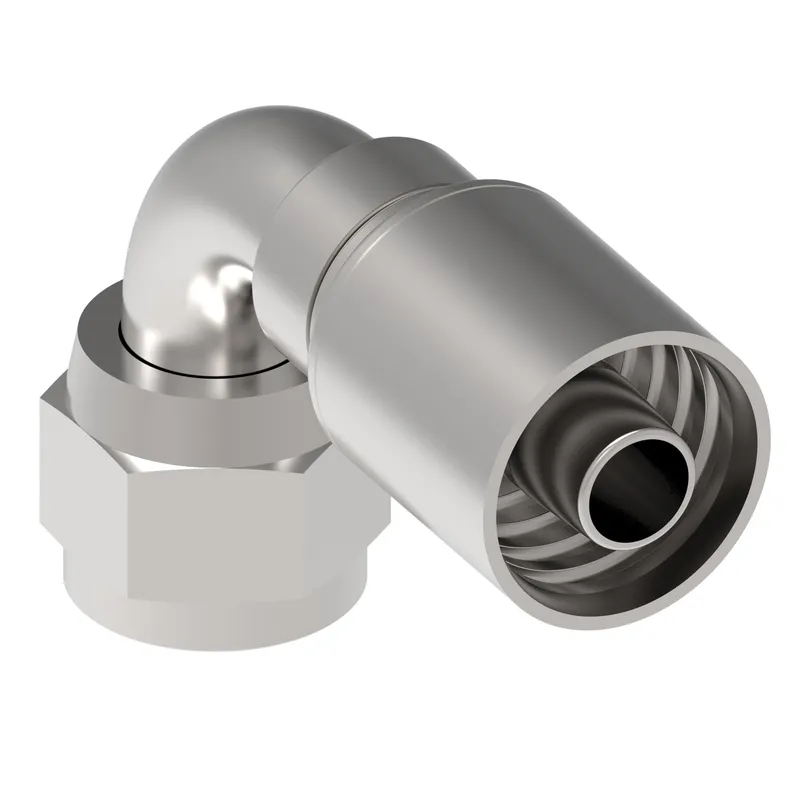

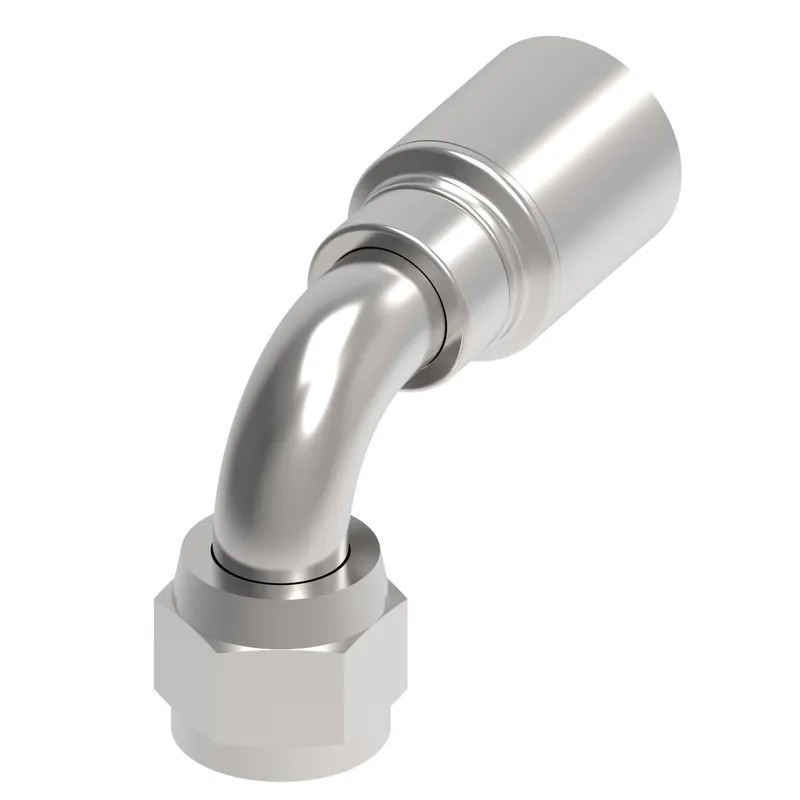

HOSE FTG, 4T/04, JIC-F/04, CS, 90D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Thermoplastic hydraulic hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 4TA4FJB4 be shipped?
4TA4FJB4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 4TA4FJB4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 4TA4FJB4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4TA4FJB4, subject to availability and destination.
Danfoss HOSE FTG, 4T/04, JIC-F/04, CS, 90D, manufacturer part number 4TA4FJB4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 810903034947 |
| A dimension IN | 1.810 |
| A dimension MM | 45.900 |
| Angle shape | 90 Degree |
| Compatible hose ID IN | 0.250 |
| Construction Style | Crimp |
| Drop dimension IN | 1.000 |
| Drop dimension MM | 17.00 |
| End size 1 | -4 |
| End type 1 | Female 37 degree swivel |
| Finish plating | Dura-Kote |
| Hex size 1 IN | 0.551 |
| Hex size 1 MM | 14.000 |
| Hose cut off factor IN | 0.920 |
| Hose cut off factor MM | 23.300 |
| Inside diameter IN | 0.150 |
| Inside diameter MM | 3.700 |
| Product height in | 1.490 |
| Product height mm | 37.846 |
| Product length in | 2.090 |
| Product length mm | 53.086 |
| Product material | Carbon steel |
| Product width in | 0.830 |
| Product width mm | 21.082 mm |
| Thread sealant | No |
| Thread size 1 | 7/16-20 UNF |
| Working pressure max BAR | 450 |
| Working pressure max PSI | 6550 |
