Danfoss 4TA2MP4

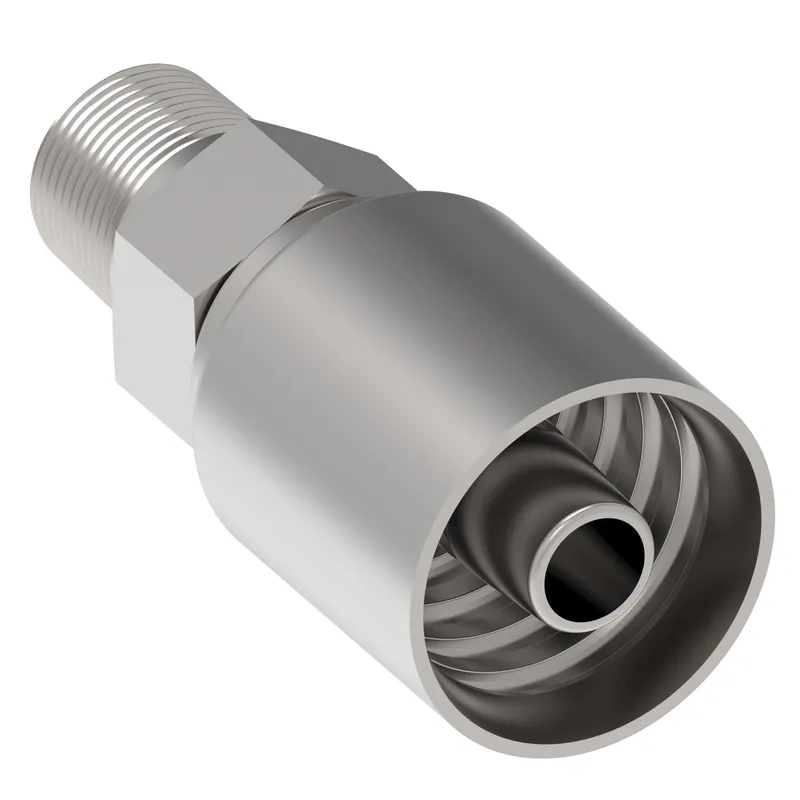

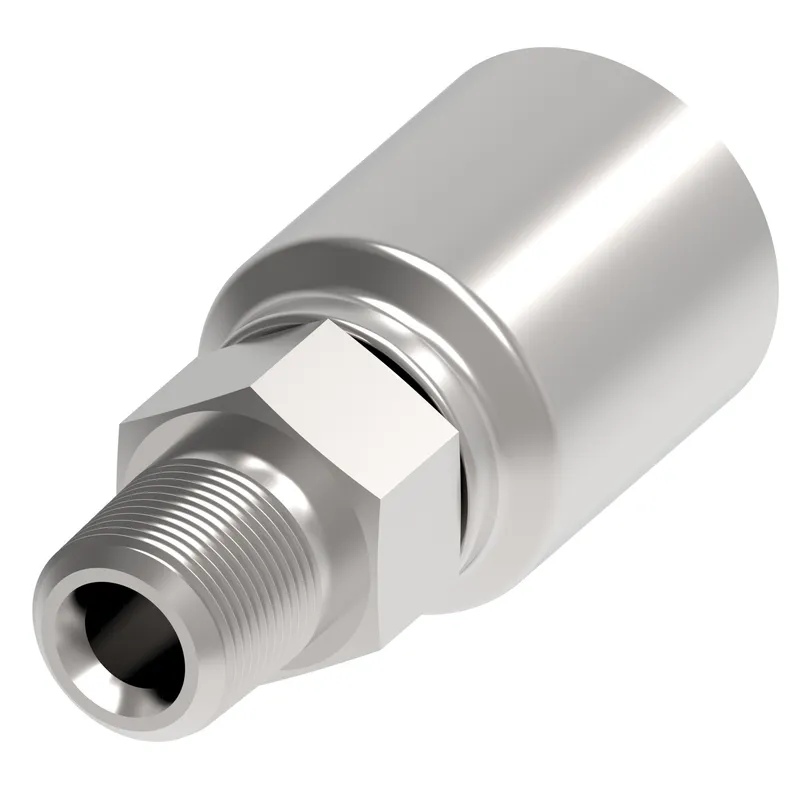

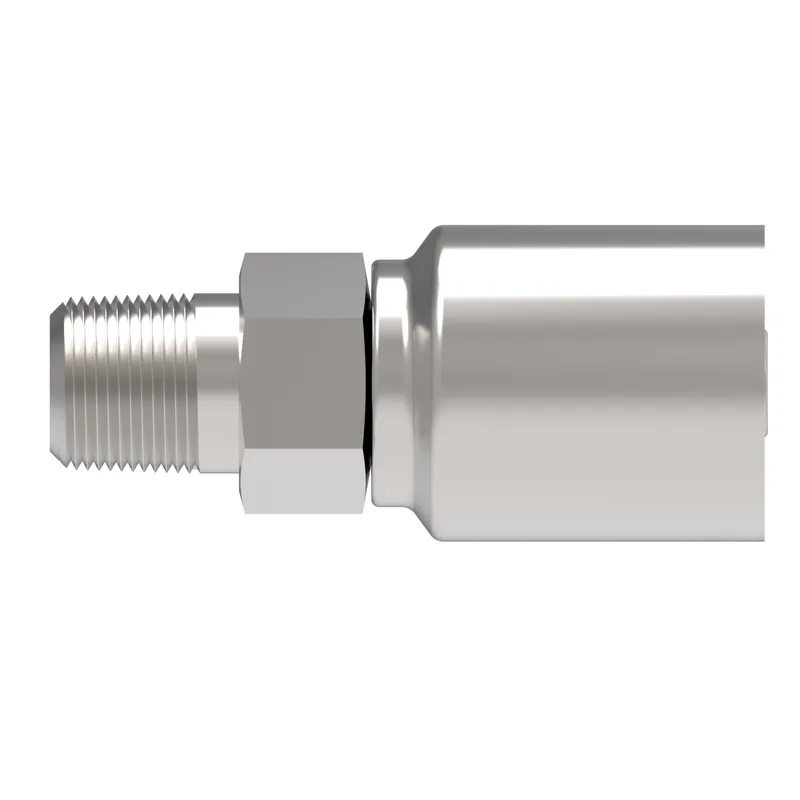

HOSE FTG, 4T/04, NPTF-M/02, CS, STR

MPN: 4TA2MP4
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4TA2MP4?

Danfoss HOSE FTG, 4T/04, NPTF-M/02, CS, STR, manufacturer part number 4TA2MP4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	810903034916
A dimension IN	1.810
A dimension MM	45.900
Angle shape	Straight
Brand	Synflex Optimum by Danfoss
Compatible hose ID IN	0.250
Construction Style	Crimp
End size 1	-2
End type 1	Male pipe (NPTF)
Finish plating	Dura-Kote
Hex size 2 IN	0.551
Hex size 2 MM	14.000
Hose cut off factor IN	0.920
Hose cut off factor MM	23.300
Inside diameter IN	0.170
Inside diameter MM	4.200
Product height in	0.826
Product height mm	20.980
Product length in	1.810
Product length mm	45.974
Product material	Carbon steel
Product width in	0.826
Product width mm	20.980 mm
Thread sealant	Yes
Thread size 1	1/8-27 NPTF
Working pressure max BAR	690
Working pressure max PSI	10000
