Danfoss 4T8LM4

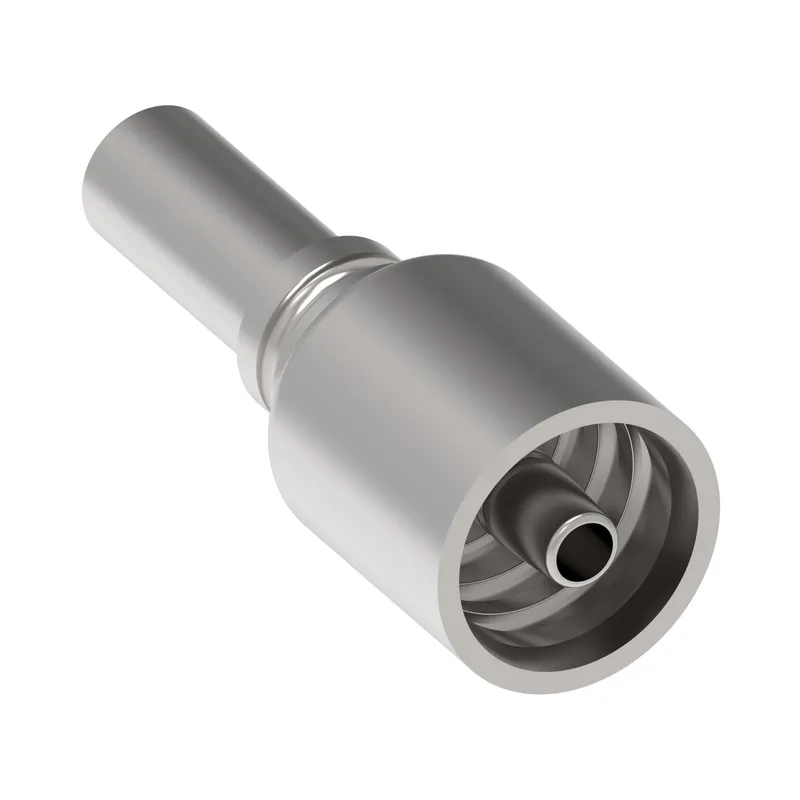

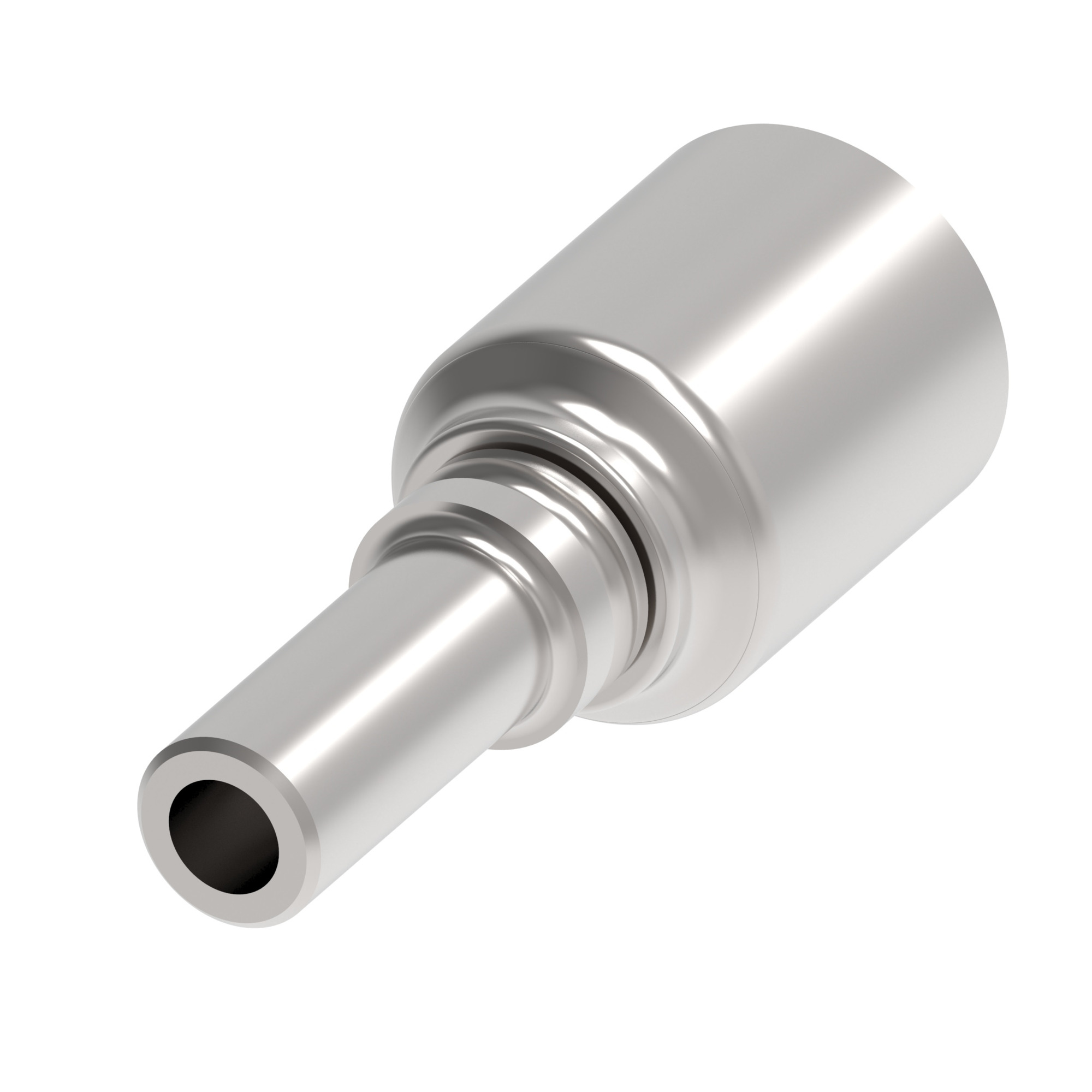

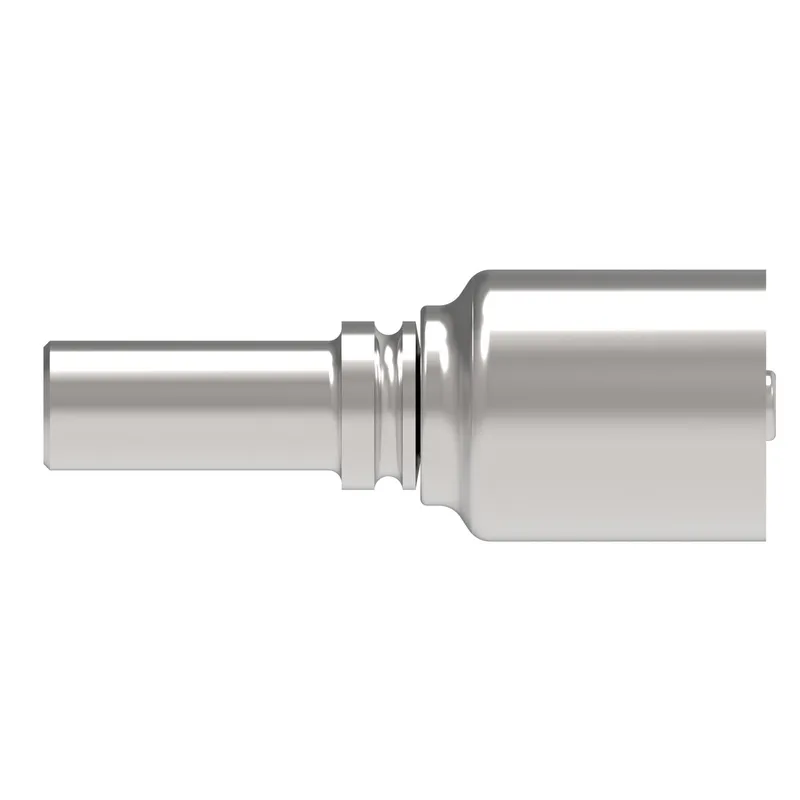

HOSE FTG, 4T/04, STPIPE/08, CS, STR

MPN: 4T8LM4
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4T8LM4?

Danfoss HOSE FTG, 4T/04, STPIPE/08, CS, STR, manufacturer part number 4T8LM4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.220
A dimension MM	56.300
Angle shape	Straight
Brand	Synflex Optimum by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.350
Construction Style	Crimp
End size 1	-8
End type 1	Standpipe Metric
Finish plating	Dura-Kote
Hose cut off factor IN	1.300
Hose cut off factor MM	32.900
Hose size	-4
Inside diameter IN	0.160
Inside diameter MM	4.200
Product height in	0.944
Product height mm	24.000
Product length in	2.216
Product length mm	56.300
Product material	Carbon steel
Product width in	0.944
Product width mm	24.000 mm
Thread sealant	No
Working pressure max BAR	400
Working pressure max PSI	5800
