Danfoss 4T8EK5

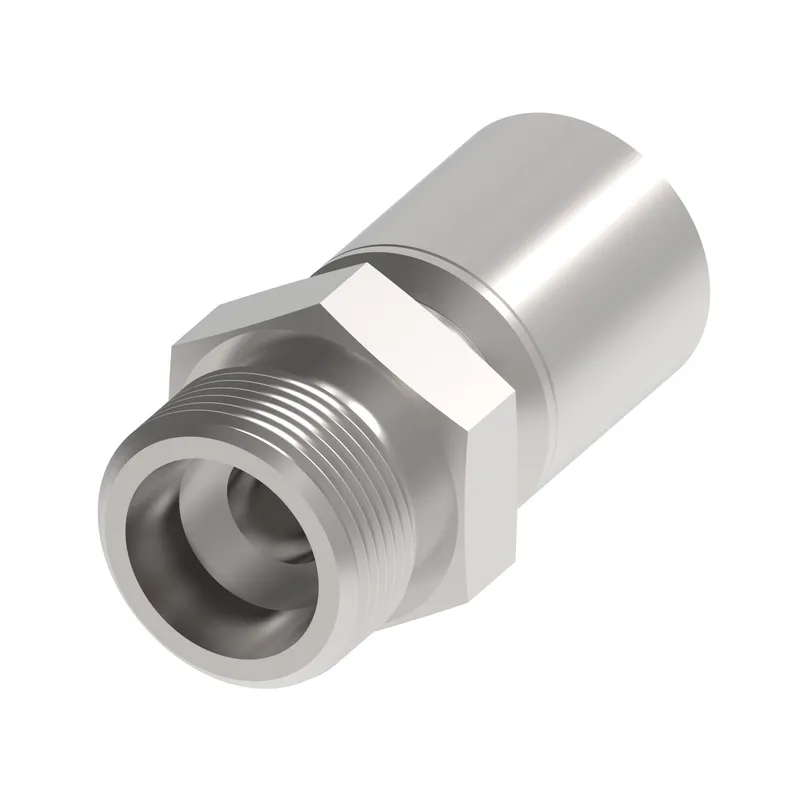

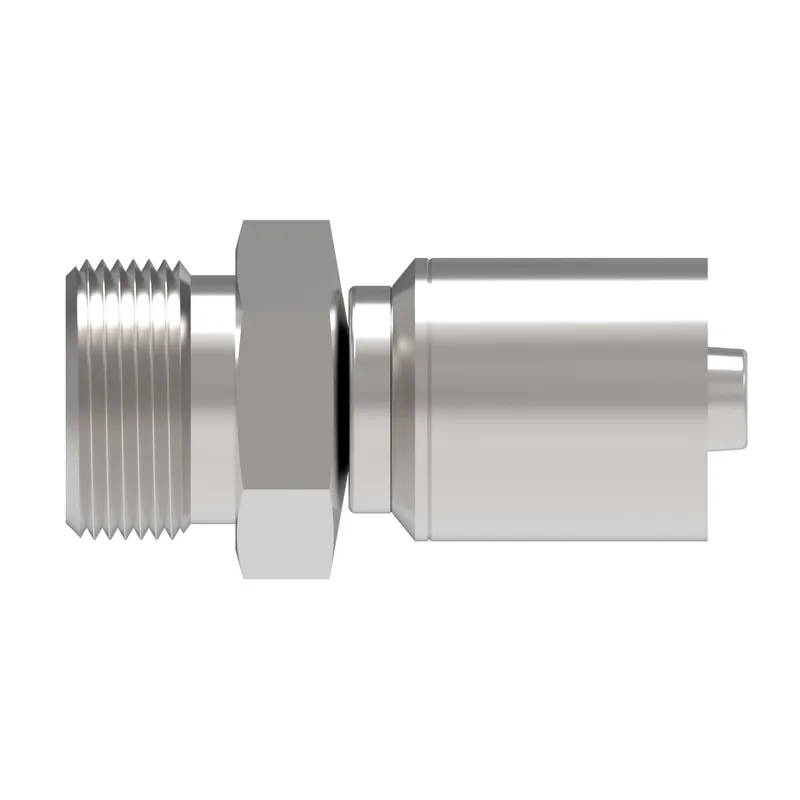

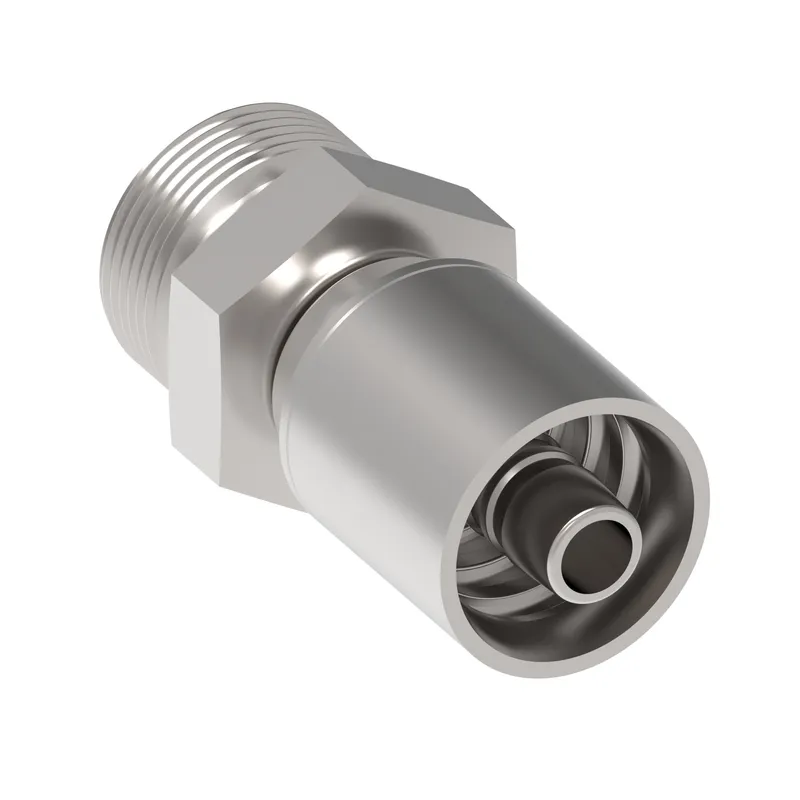

HOSE FTG, 4T/05, DKH-M/08, CS, STR

MPN: 4T8EK5
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4T8EK5?

Danfoss HOSE FTG, 4T/05, DKH-M/08, CS, STR, manufacturer part number 4T8EK5. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.900
A dimension MM	48.200
Angle shape	Straight
Brand	Synflex Optimum by Danfoss
Compatible hose ID IN	0.310
Compatible hose ID MM	7.938
Construction Style	Crimp
End size 1	-8
End type 1	24 deg. tube port heavy duty
Finish plating	Dura-Kote
Hex size 1 IN	0.866
Hex size 1 MM	22.000
Hose cut off factor IN	0.960
Hose cut off factor MM	24.300
Hose size	-5
Inside diameter IN	0.210
Inside diameter MM	5.300
Product height in	0.866
Product height mm	22.000
Product length in	1.897
Product length mm	48.200
Product material	Carbon steel
Product width in	0.866
Product width mm	22.000 mm
Thread sealant	No
Thread size 1	M20X1.5
Working pressure max BAR	400
Working pressure max PSI	5800
