Danfoss 4SP13

Cplng, 4000 SERIES FEMALE, BRASS

MPN: 4SP13
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

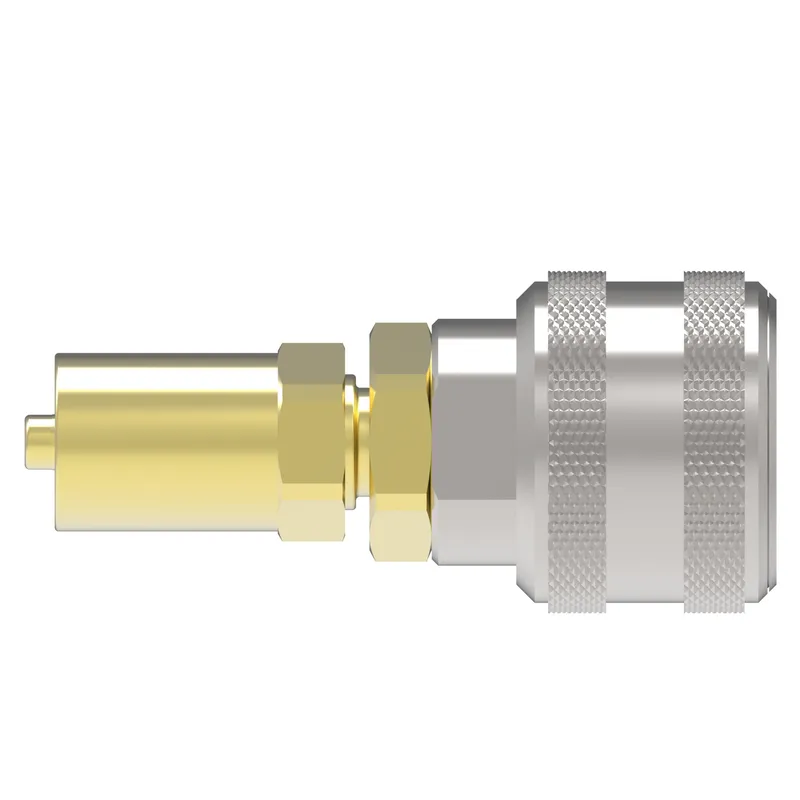

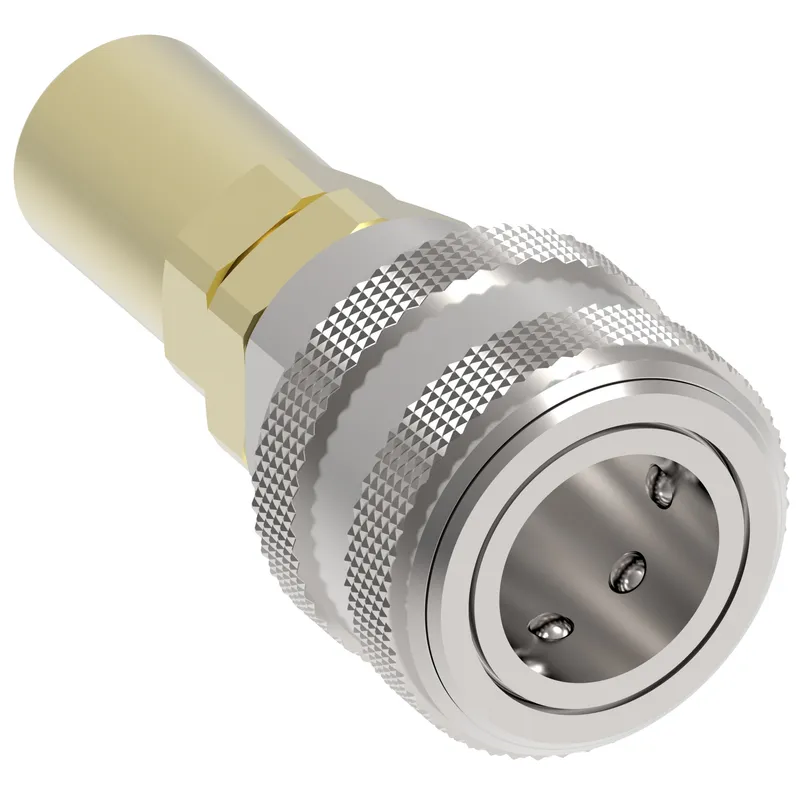

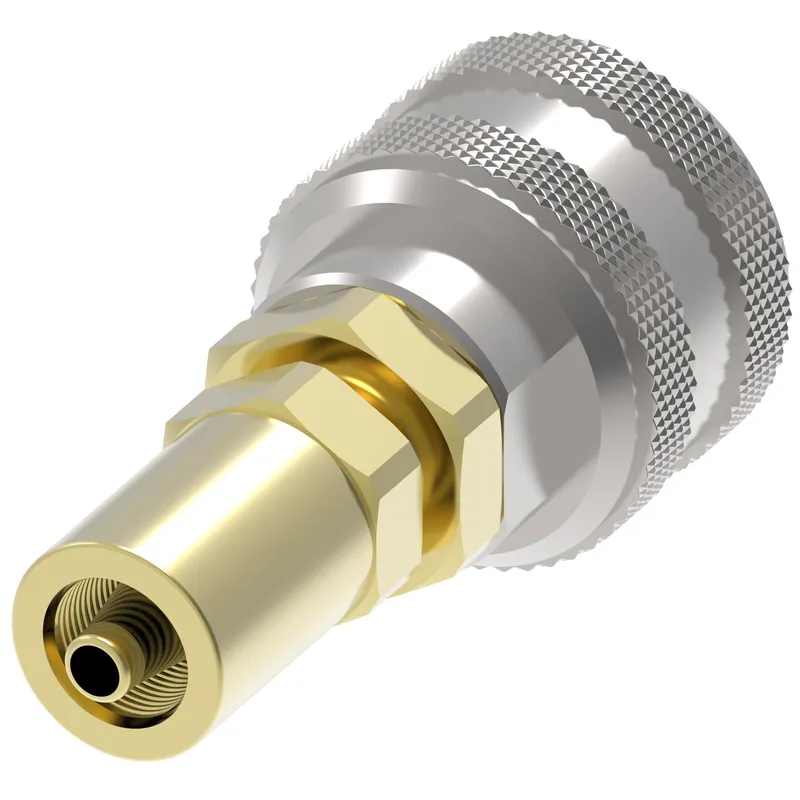

What is the Danfoss 4SP13?

Danfoss Cplng, 4000 SERIES FEMALE, BRASS, manufacturer part number 4SP13. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146102973
Angle shape	Straight
Body size	1/8
Brand	Danfoss
Burst pressure min bar	276
Burst pressure min psi	4000
Connection style	Manual connect
End type 1	Female Push to Connect
End type 2	Line/hose/tube
Flow rate GPM	336.56
Flow rate LPM	1274.02
Fluid compatibility	Air, Gases and liquids
Hex size 1 IN	0.940
Hex size 1 MM	23.876
Item type	Female half
Latch type	Push/pull
Product length in	3.670
Product material	Brass
Safety locking mechanism	Pin lock
Seal material	Nitrile (NBR)
Sub brand	Hansen
Valve type	2 way
Working pressure max psi	1000
Working pressure max BAR	69
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
