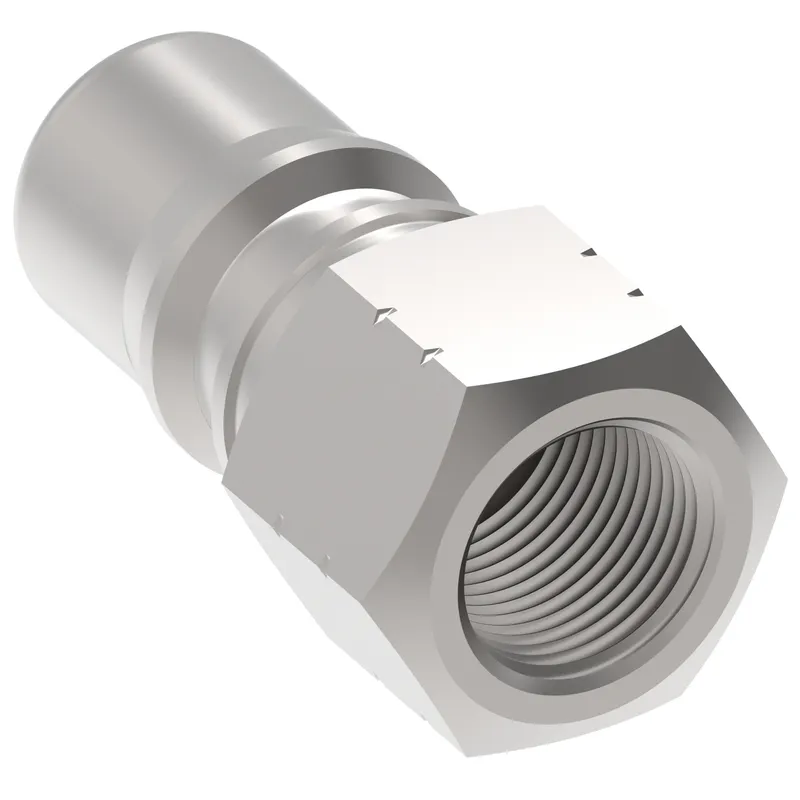

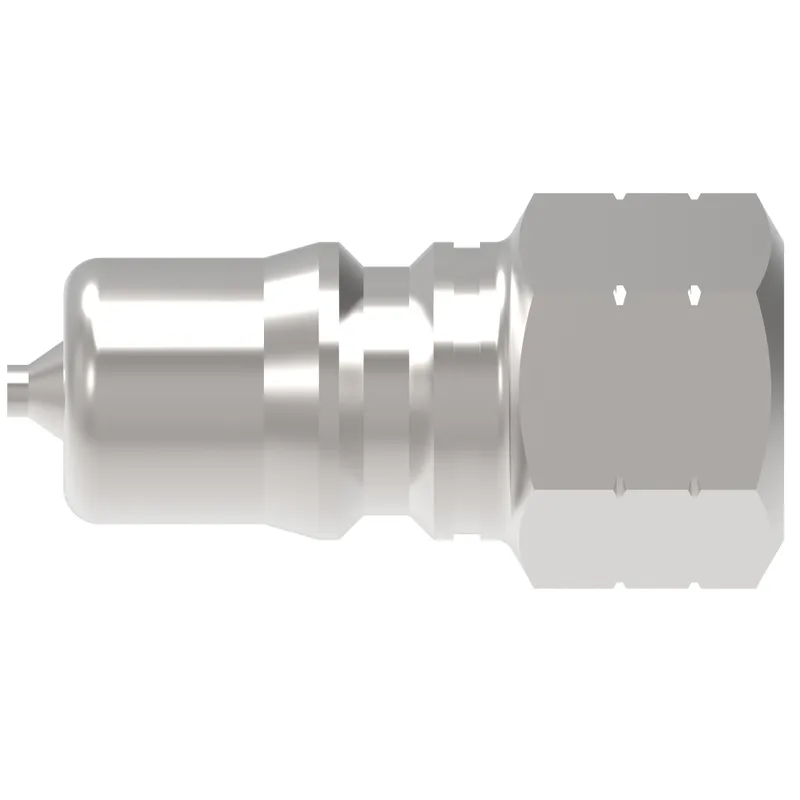

Danfoss 4KP26192

COUPLING,HK,M,1/2,CS,-8NPTF,EPDM

MPN: 4KP26192
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4KP26192?

Danfoss COUPLING,HK,M,1/2,CS,-8NPTF,EPDM, manufacturer part number 4KP26192. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146160560
Air inclusion max cc	3.60
Air inclusion max in3	0.22
Angle shape	Straight
Application	Aerospace, Agriculture, Chemical, Construction, Consumer products, Fluid transfer, Food and beverage, General industry, Hvac, Hydraulics, Law enforcement/rescue, Medical, Military, Oil and gas, Transportation, Trucks
Body size	1/2
Certifications	ISO 7241-1 Series B
Connection style	Manual connect
End size 1	-8
End size 2	-8
End type 1	Male push to connect
End type 2	Female pipe (NPTF)
Finish plating	Zinc
Flow rate GPM	12.00
Flow rate LPM	45.43
Fluid compatibility	Hydraulic fluid
Fluid loss cc	3.50000
Fluid loss in3	0.21400
Hex size 1 IN	1.130
Hex size 1 MM	28.702
Item type	Male half
Latch type	Push/pull
Product material	Carbon steel
Safety locking mechanism	None
Seal material	Ethylene propylene (EPDM)
Thread size 1	1/2-14 NPTF
Valve type	2 way
Working pressure max psi	5000
Working pressure max BAR	345
Working temperature max C	149
Working temperature max F	300
Working temperature min C	-54
Working temperature min F	-65

4KP26192: frequently asked questions

When can 4KP26192 be shipped?

4KP26192 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 4KP26192 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 4KP26192 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4KP26192, subject to availability and destination.
