Danfoss 49X6Z

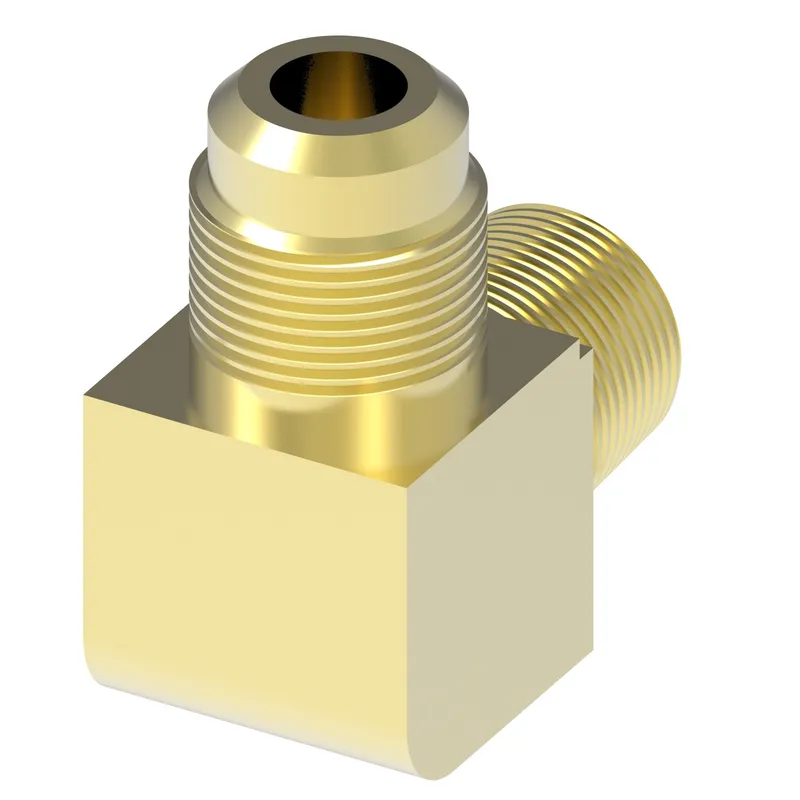

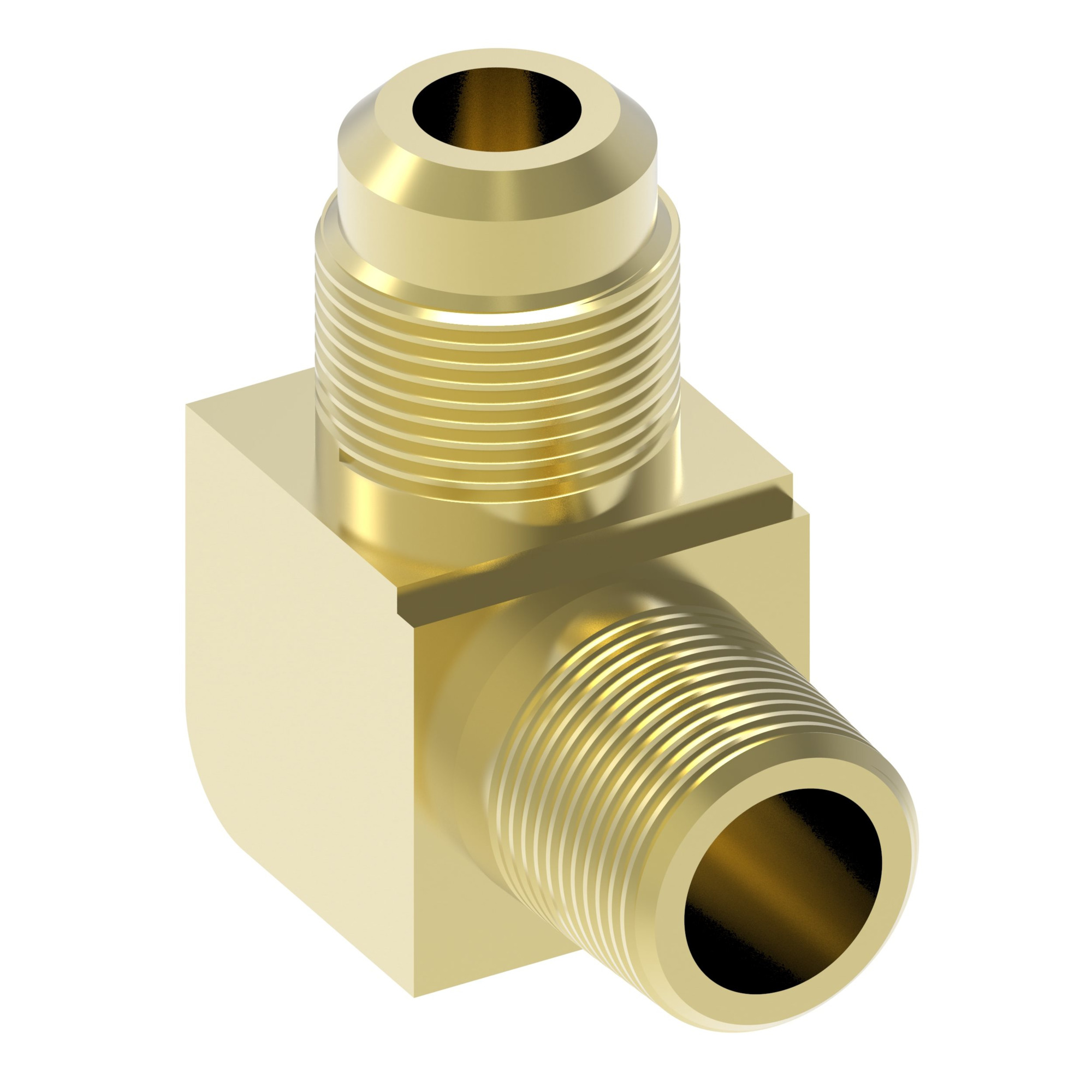

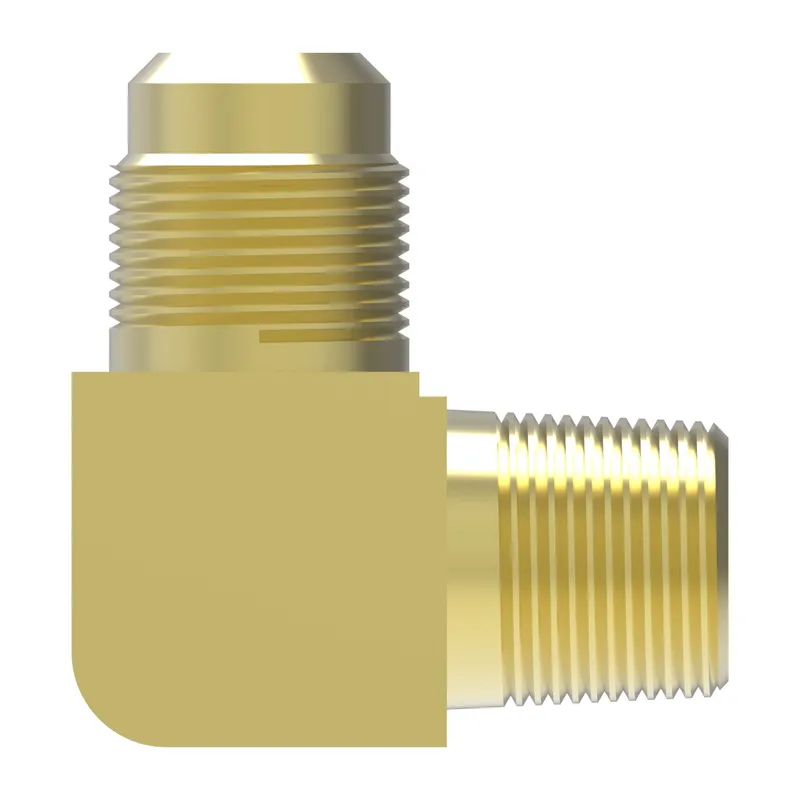

101-40006-36 ELBOW/SEALA NT

MPN: 49X6Z
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 49X6Z?

Danfoss 101-40006-36 ELBOW/SEALA NT, manufacturer part number 49X6Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	725975712184
Angle shape	90 Degree
Brand	Danfoss
Drop dimension IN	1.050
Drop dimension MM	26.70
End Type 1	Male pipe (NPTF)
End Type 2	Male 37 degree
Hex size 1 IN	0.680
Hex size 1 MM	17.300
Item type	Adapter-elbow
Product material	Brass
Thread sealant	No
Thread size 2	5/8-18 UNF
Tube outside diameter 1 IN	0.310
Tube outside diameter 1 MM	7.9
Tube outside diameter 2 IN	0.280
Tube outside diameter 2 MM	7.1
Working pressure bar	138.0
Working pressure psi	2000
Working temp max C	121
Working temp max F	250
Working temp min C	-54
Working temp min F	-65
