Danfoss 49X4

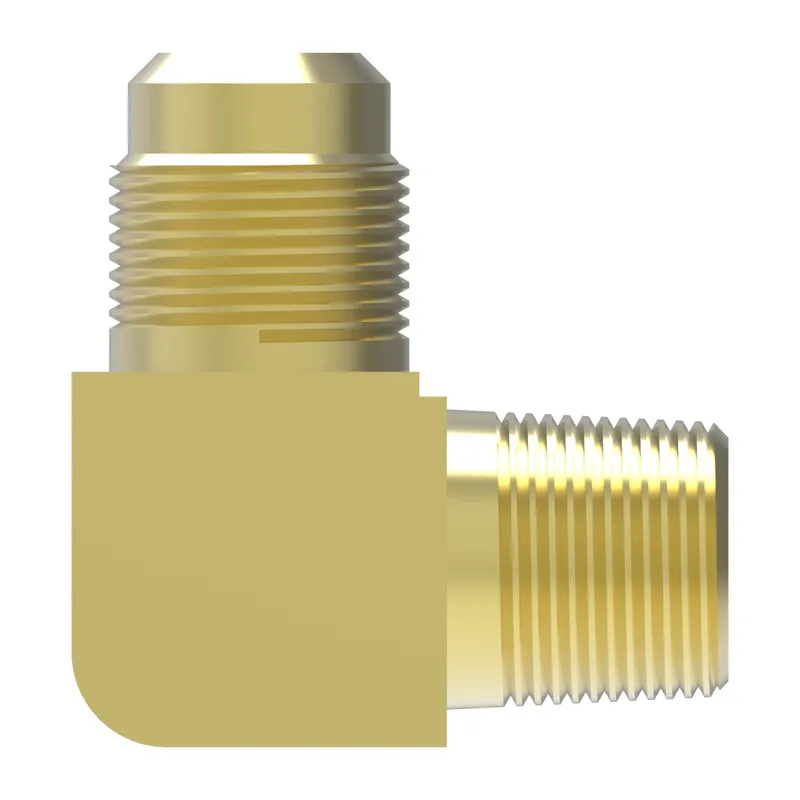

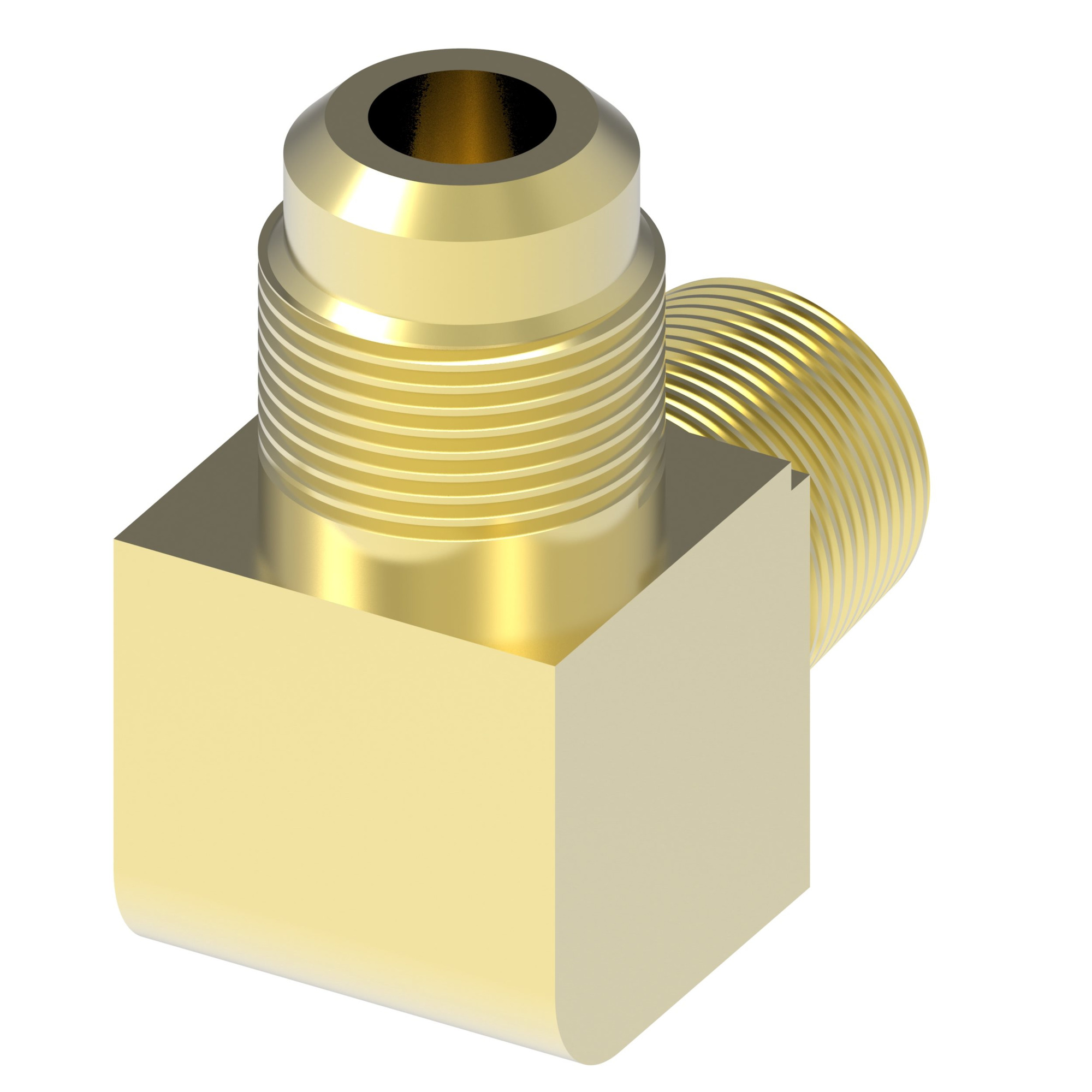

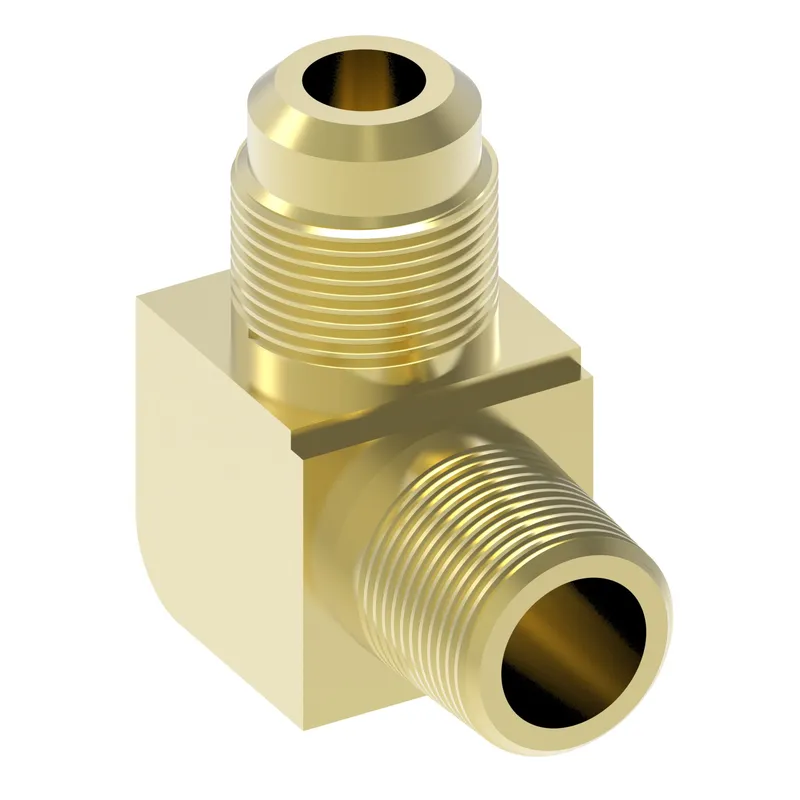

ADAPTER-BRASS-AE45 90D 101-40004 -4Tx-2

MPN: 49X4
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 49X4?

Danfoss ADAPTER-BRASS-AE45 90D 101-40004 -4Tx-2, manufacturer part number 49X4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789259486
Angle shape	90 Degree
Brand	Danfoss
Drop dimension IN	0.760
Drop dimension MM	19.30
End Type 1	Male pipe (NPTF)
End Type 2	Male 37 degree
Hex size 1 IN	0.470
Hex size 1 MM	11.900
Item type	Adapter-elbow
Product material	Brass
Thread sealant	No
Thread size 2	7/16-20 UNF
Tube outside diameter 1 IN	0.220
Tube outside diameter 1 MM	5.6
Tube outside diameter 2 IN	0.190
Tube outside diameter 2 MM	4.8
Working pressure bar	138.0
Working pressure psi	2000
Working temp max C	121
Working temp max F	250
Working temp min C	-54
Working temp min F	-65
