Danfoss 477430

MPN: 477430
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 477430?

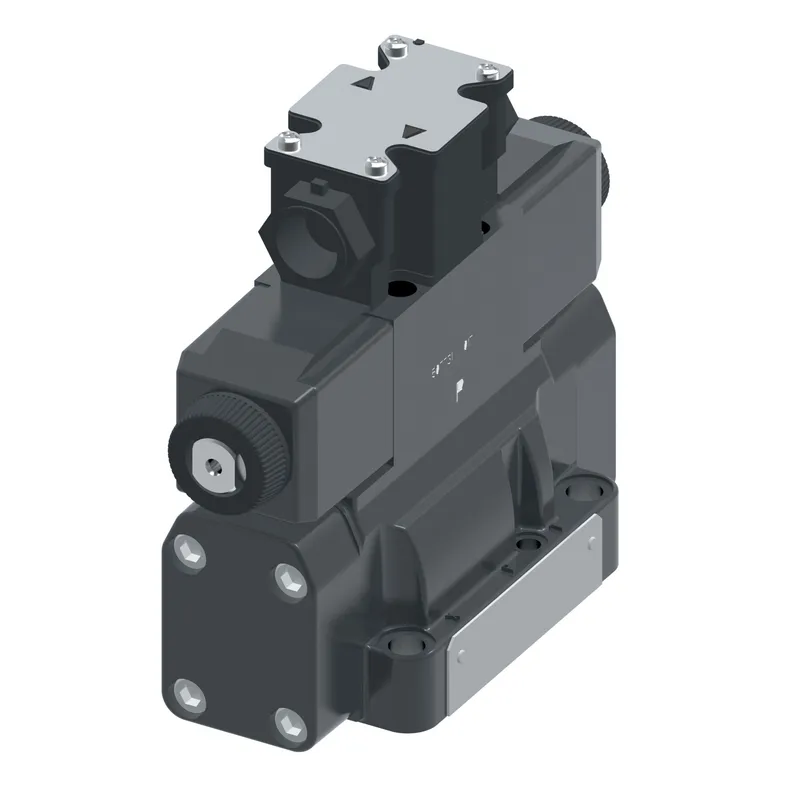

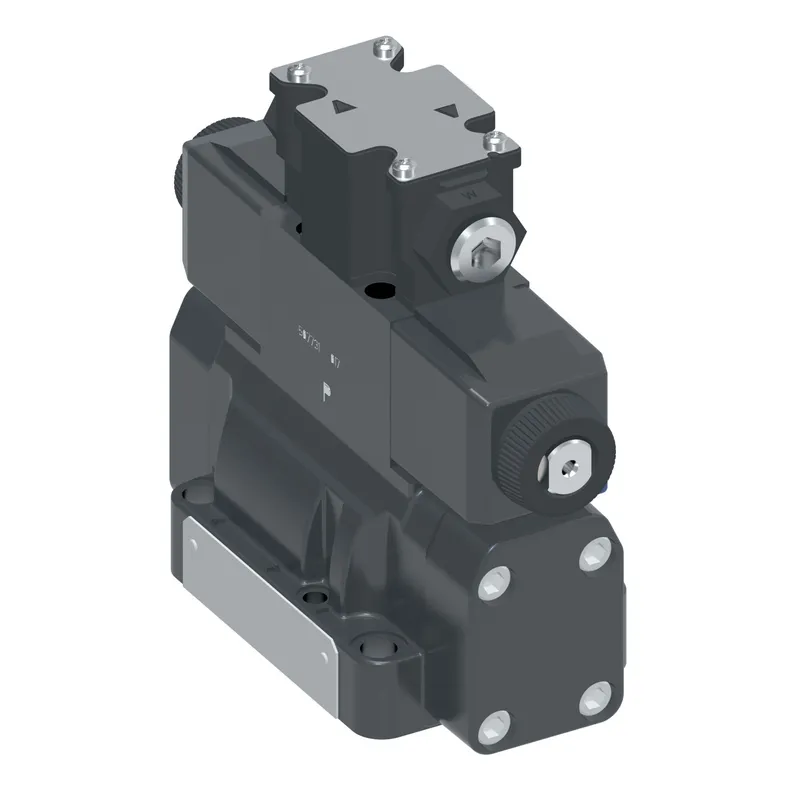

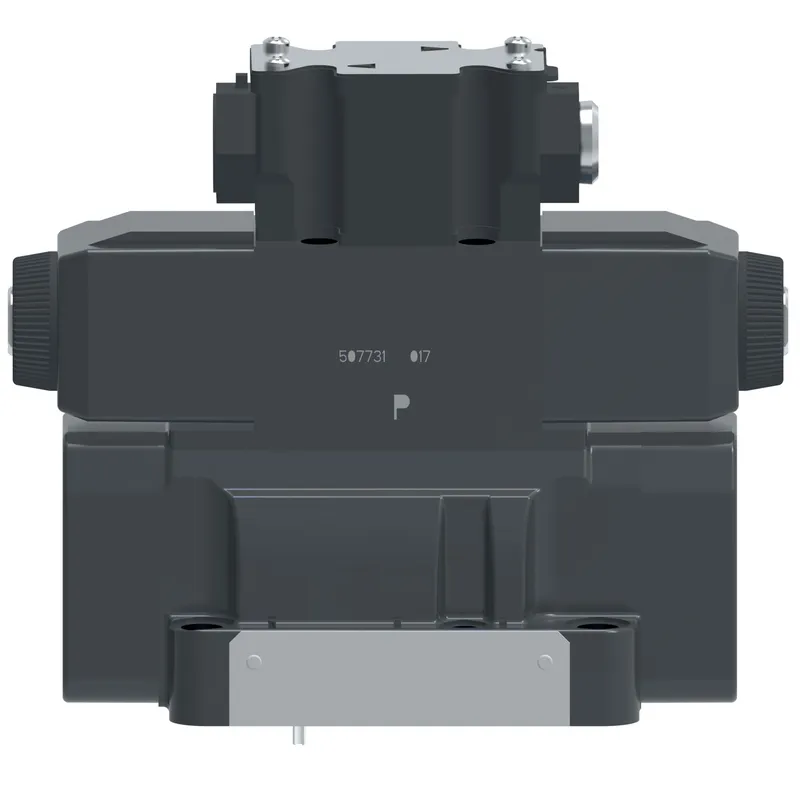

Danfoss DF5S4-166C-2-24DC-53, DF5S4166C224DC53, manufacturer part number 477430. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pilot operated
Brand	Vickers by Danfoss
Coil Rating	24 VDC
Design Series	53 Series
Electrical Connection	Flying lead 1/2" NPT housing
Ext pilot pressure	Internal
Flow rate upto GPM	350.0
Flow rate upto LPM	1325.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Indicator Light	No

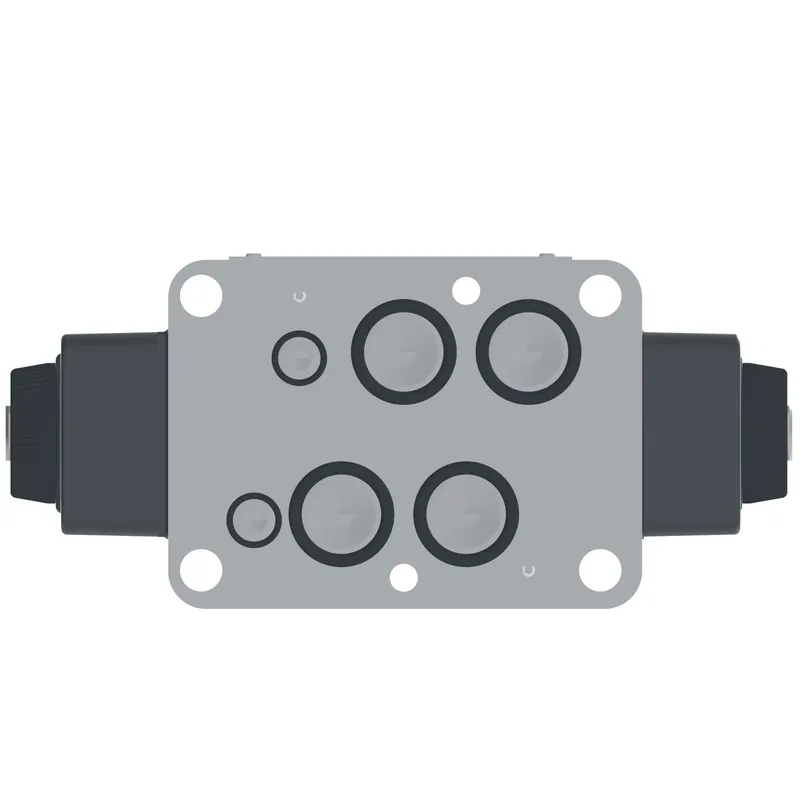

Interface	2.75in x 2.75in - 0.625-11UNC
Manual override	Plain
Model Code	DF5S4166C224DC53
Performance	Standard performance
Product height in	13.050
Product height mm	331.470
Product length in	12.060
Product length mm	306.324
Product width in	8.000
Product width mm	203.2
Solenoid Energising ID	Standard as per ANSI B93 9
Special features	None
Spool Control	Pilot choke adjustment
Spool Position Monitor	No
Spool Type	Spool 6
Spring Arrangement	Spring centred
Stage	Two stage
Surge Suppr Damper	No
Tank port rating BAR	210
Tank port rating PSI	3000
Valve Mount Type	Flange ported
Valve type	Directional control valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4

477430: frequently asked questions

When can 477430 be shipped?

477430 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 477430 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 477430 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 477430, subject to availability and destination.
