Danfoss (Drives)

Danfoss 4633-078

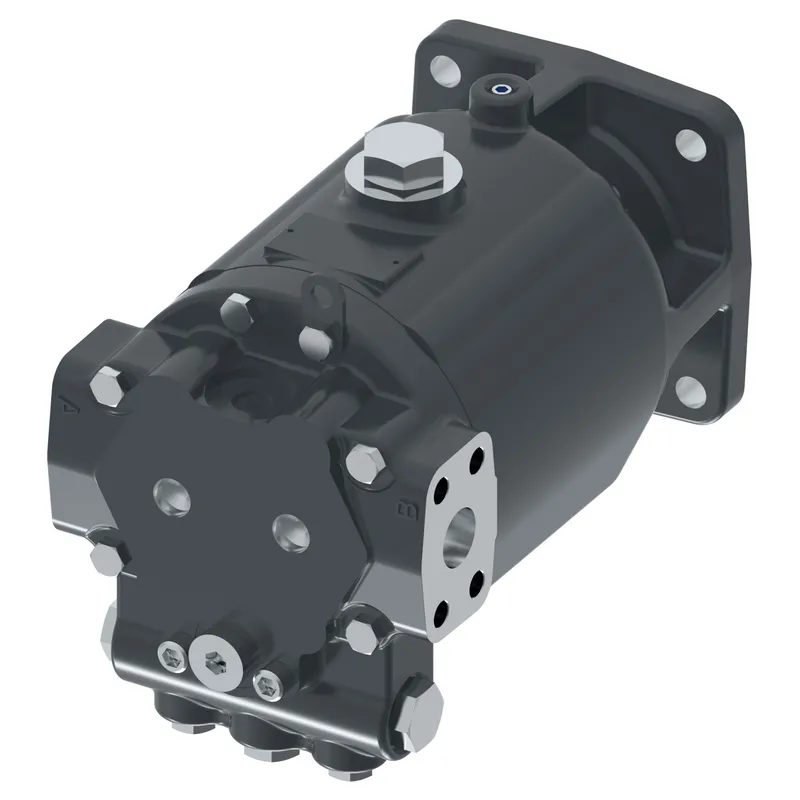

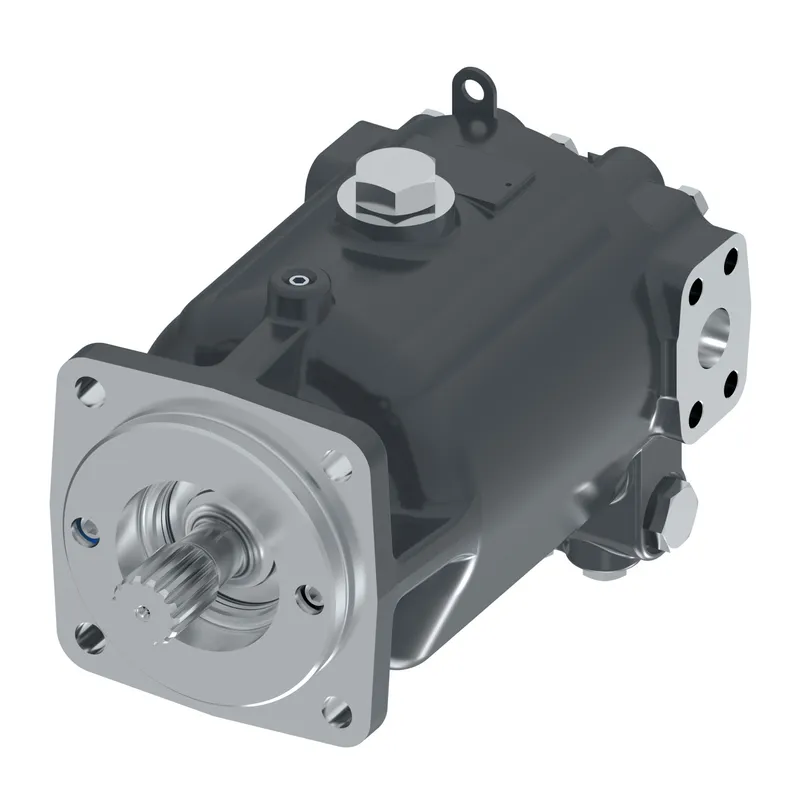

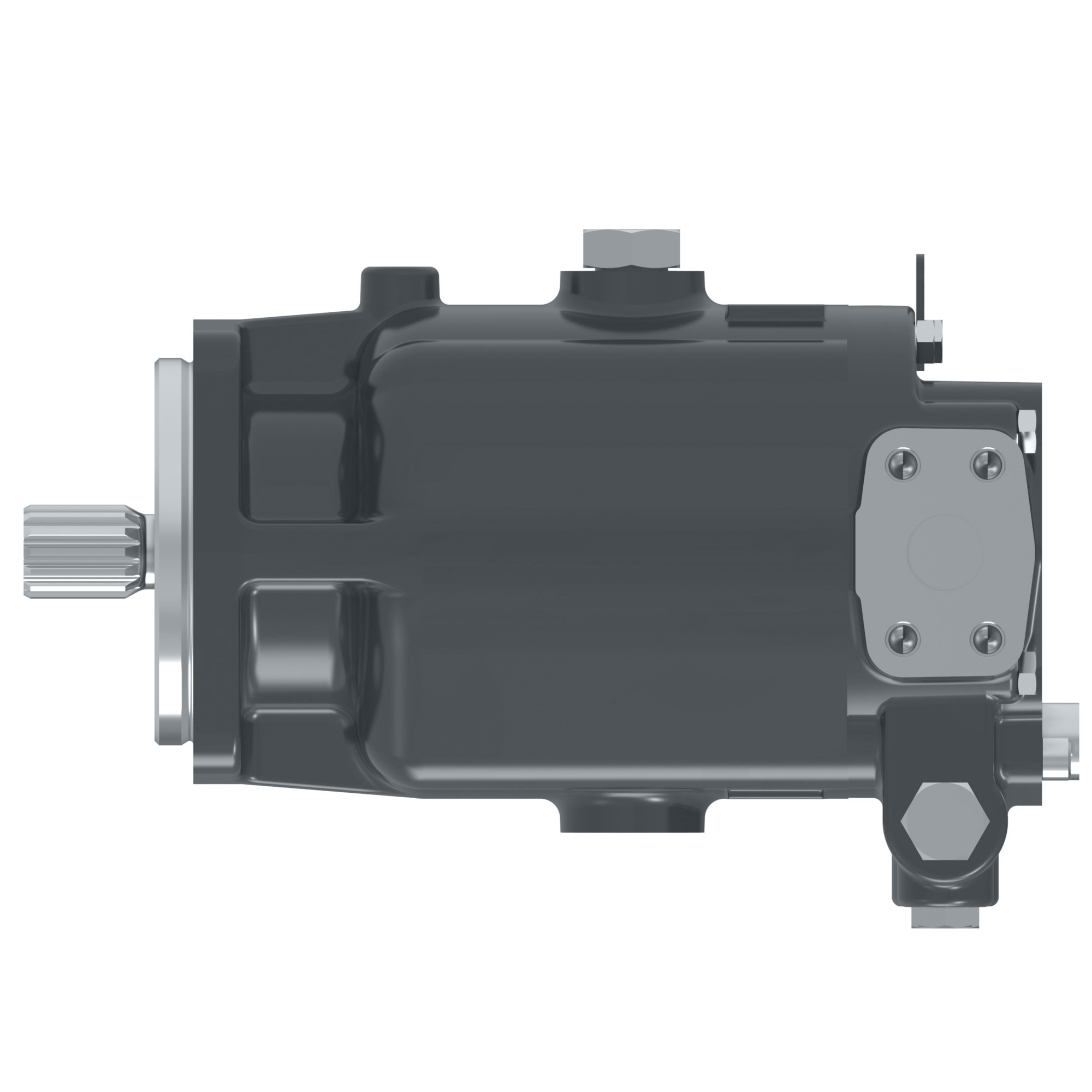

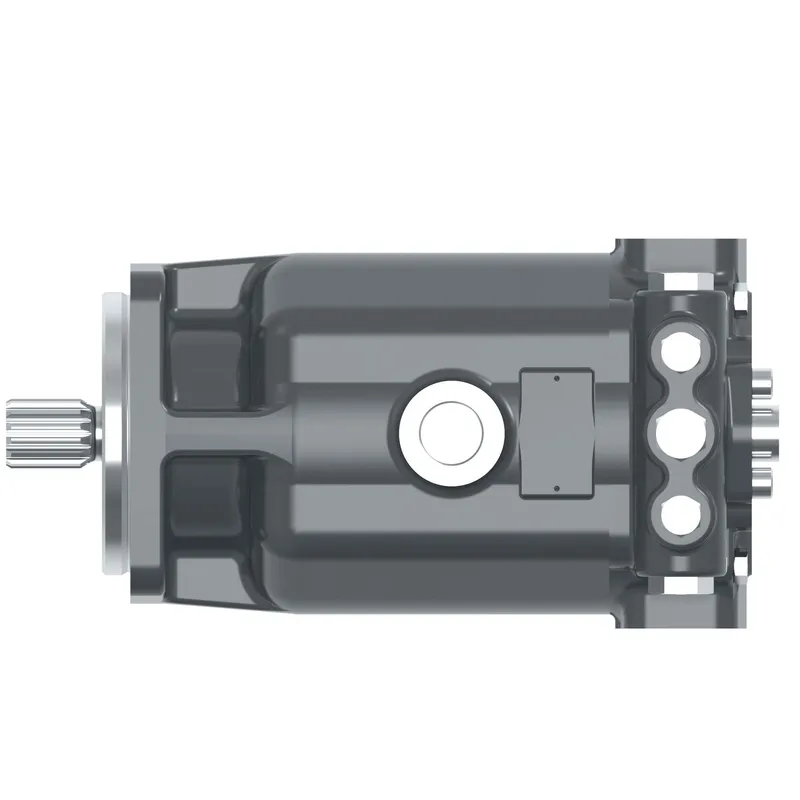

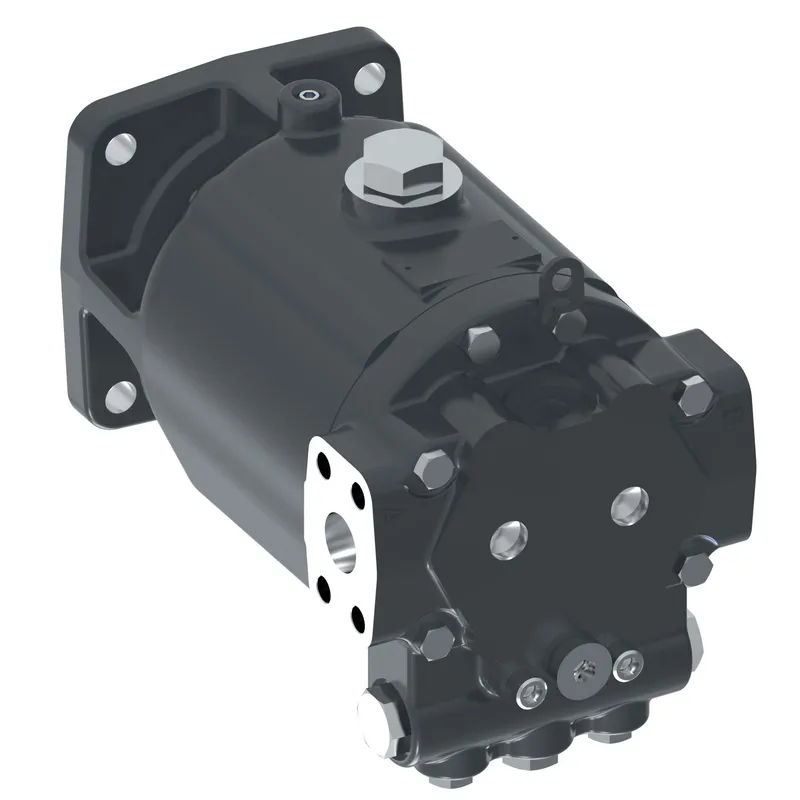

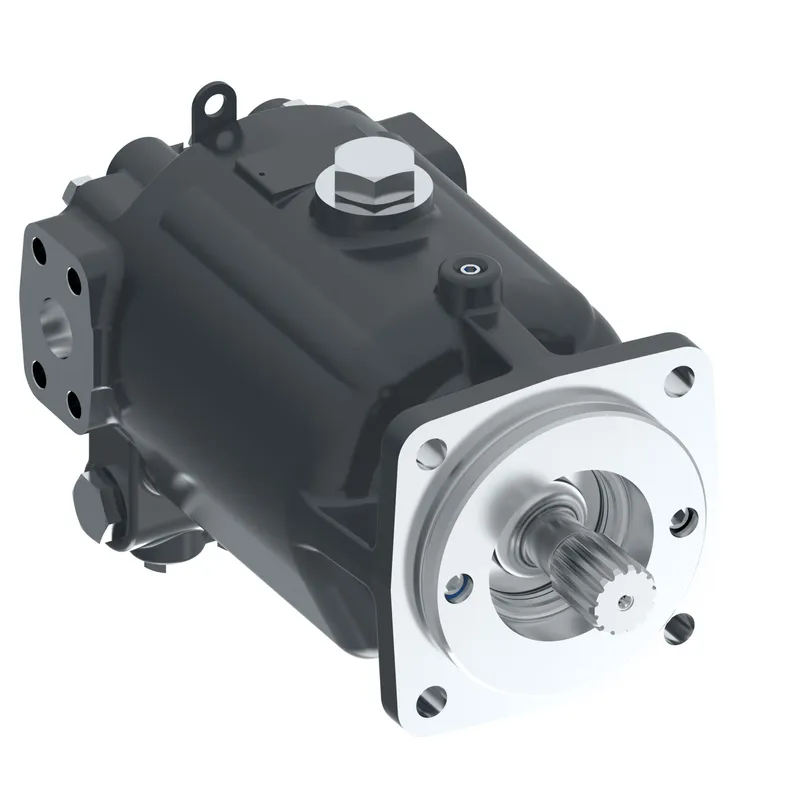

MOTOR-FIXED DISPL, S1MF075, HHD463323BA1B3S3S022CDB

MPN: 4633-078
Category: Fixed displacement axial piston motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4633-078?

Danfoss MOTOR-FIXED DISPL, S1MF075, HHD463323BA1B3S3S022CDB, manufacturer part number 4633-078. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Danfoss
CPRV setting	CPRV, 160 psi (11 bar)
CPRV type	Standard charge pressure relief valve
Design code	Design code B
Design type	Fixed clearance with lip seal (33/39/46/54/64 only)
Displacement	4.594 cid (75.33 cc)
End cover and comp valve block	Valve block with shuttle valve, high-rate springs, charge pressure relief valve, and high pressure relief valves
Flow rate gpm	82.7
Flow rate lpm	313.2
High pres relief valve port A	Standard
High pres relief valve port B	Standard
HPRV setting port A	HPRV port A, 6750 psi (465.4 bar)
HPRV setting port B	HPRV port B, 6750 psi (465.4 bar)
Identification	John Deere
Main ports	1.00 code 62 opposite side ports
Maximum output speed	4160
Maximum temperature C	82.20
Maximum temperature F	180.00
Model Code 1	HHD463323BA1B3S3S022CDB
Mounting Flange	4-BOLT-C
Output shaft	23 tooth 16/32 pitch spline (33/39/46/54/64 only)
Output torque lbf-in2	4935.3
Output torque Nm	557.6
Paint	Finish green
Product height in	6.000
Product height mm	152.400
Product length in	14.680
Product length mm	372.872
Product Series	Heavy duty hydrostatic fixed displacement motor
Product type	Fixed displacement motor
Product width in	6.000
Product width mm	152.4
Special features	Nametag opposite dowel
Speed sensor	No speed sensor
Working pressure bar	465
Working pressure psi	6750
