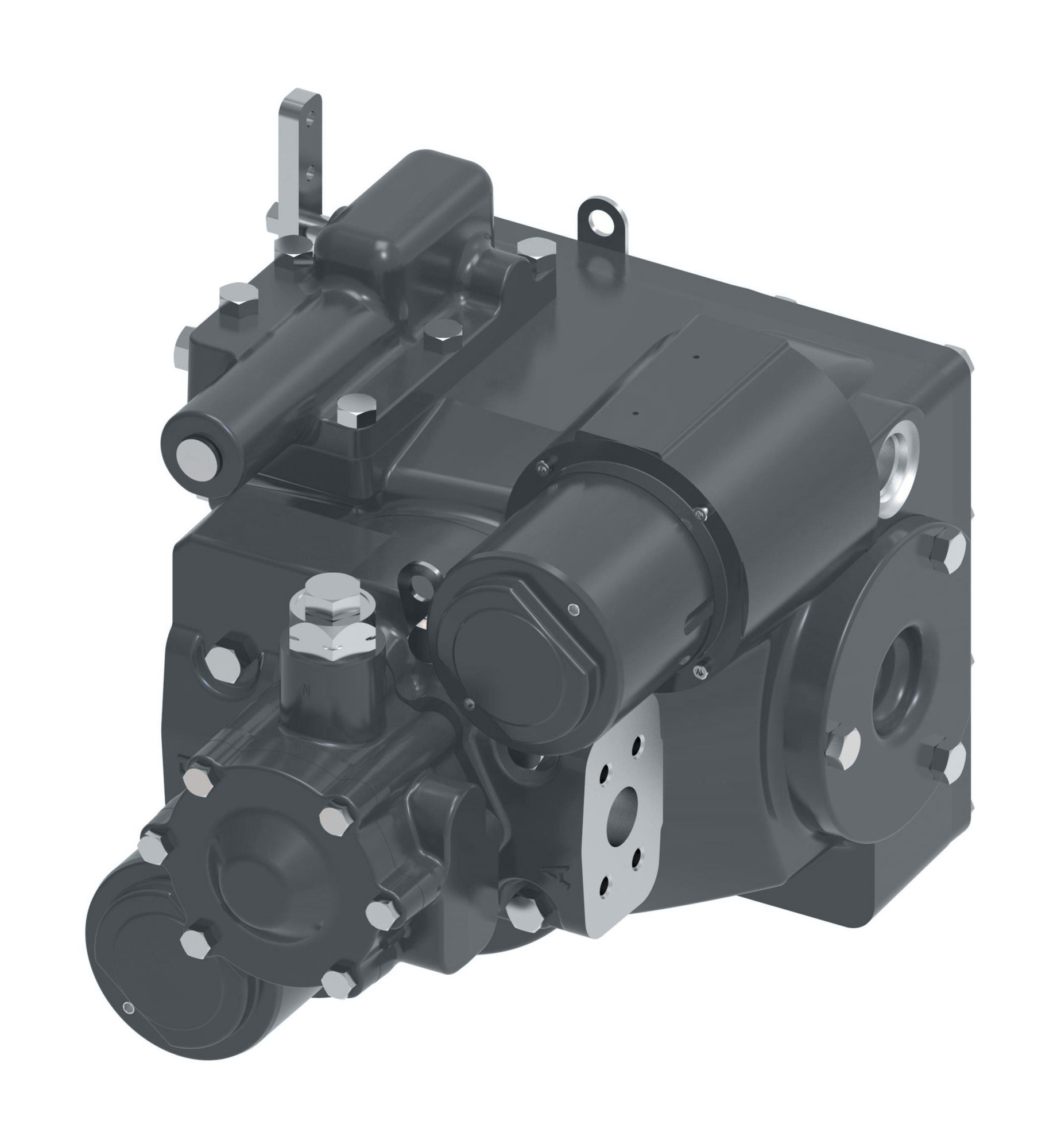

PUMP-VAR DISP, S1PV075 CW, ACA462321R0BMMMCCHH0000020D0BG0SB
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mobile closed-circuit piston pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 4623-632 be shipped?
4623-632 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 4623-632 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 4623-632 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4623-632, subject to availability and destination.
Danfoss PUMP-VAR DISP, S1PV075 CW, ACA462321R0BMMMCCHH0000020D0BG0SB, manufacturer part number 4623-632. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Auxiliary mounting | No auxiliary mounting |
| Brand | Danfoss |
| Charge pump | Charge pump included |
| Charge pump displacement | 1.06 cid [17.4 cc] |
| Charge pump special features | No charge pump special features |
| Control | Manual with wide band neutral |
| Control orifice upper servo S1 | 2.39 [.094] Diameter |
| Control orifice upper servo S2 | 2.39 [.094] Diameter |
| Control special features | No control special features |
| Control supply orifice | 1.12 [.044] Diameter |
| CPRV setting | 220 psi [15 bar] |
| Design code | Design code B |
| Design type | Series 1, Models 33-64 |
| Displacement | 75.28 cm3/r (4.594 in3/r) at 18 deg |
| Flow rate gpm | 82.7 |
| Flow rate lpm | 313.2 |
| Identification | Special Eaton Hydraulics |
| Input rotation | Clockwise (Righthand) |
| Input shaft | 21 tooth 16/32 pitch spline (33/39/46/54/64 only) |
| Main ports | 1.00 code 62 per SAE J518 |
| Maximum output speed | 4160 |
| Maximum temperature C | 82.20 |
| Maximum temperature F | 180.00 |
| Model Code 1 | ACA462321R0BMMMCCHH0000020D0BG |
| Model Code 2 | 0SB |
| Mounting Flange | 4-bolt-C |
| Output torque lbf*in | 4386.9 |
| Output torque n*m | 495.7 |
| Paint | Painted primer blue (Standard) |
| Power limiter valve set port A | PLV Port A, 6000 psi [414 bar] |
| Power limiter valve set port B | PLV Port B, 6000 psi [414 bar] |
| Press override | No internal pressure override |
| Pressure override setting | IPOR Setting - None |
| Product height in | 10.560 |
| Product height mm | 268.224 |
| Product length in | 17.860 |
| Product length mm | 453.644 |
| Product Series | Hydrostatic - Heavy duty variable pump |
| Product width in | 10.740 |
| Product width mm | 272.796 |
| Second disp of dual element | No dual element |
| Special pump assembly features | special packaging (RP, VCI, Bag, Zip Tie, Box and Crate) and bottom case drain port for 1 1/16-12 UN-2B SAE o-ring fitting withsteel hex plug |
| Type | Variable displacement pump |
| Valve plate | Standard, V-Groove |
| Working pressure bar | 414 |
| Working pressure psi | 6000 |
