Danfoss 4623-573

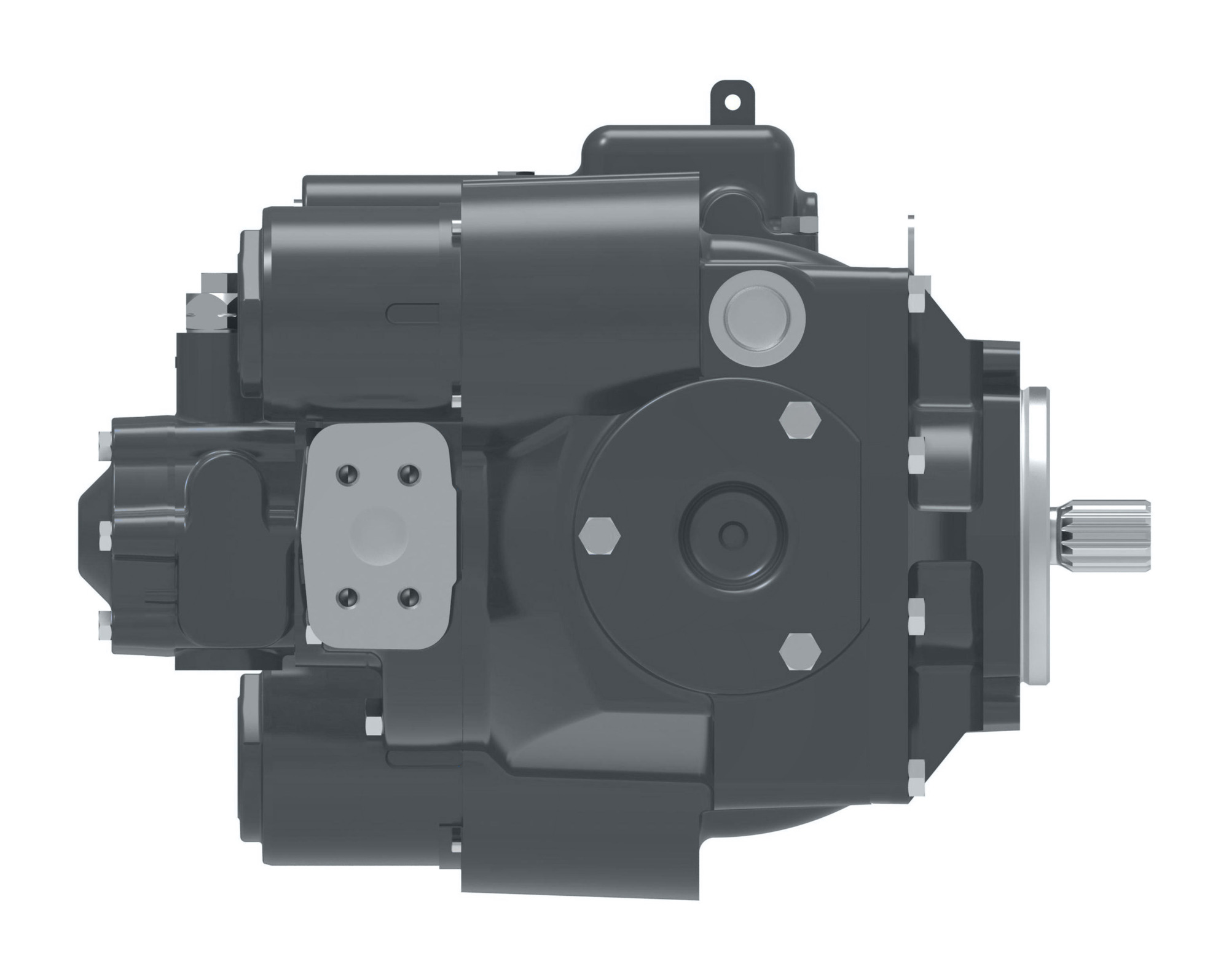

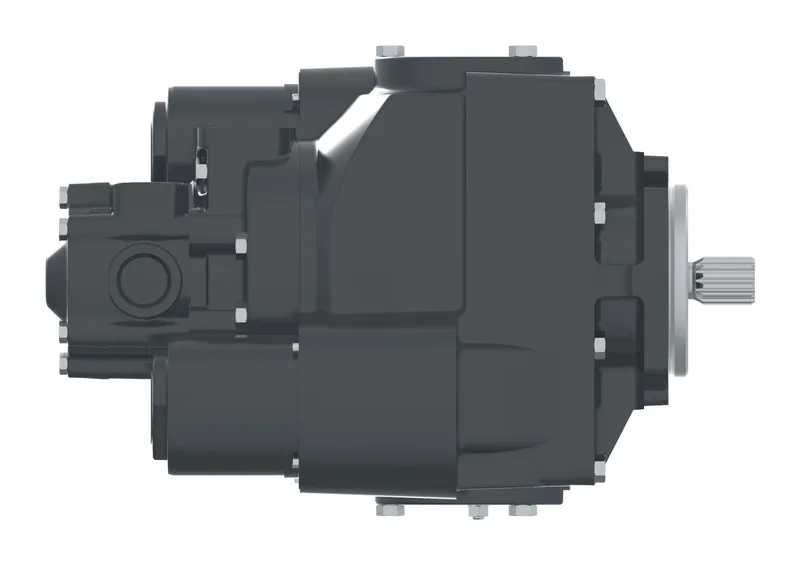

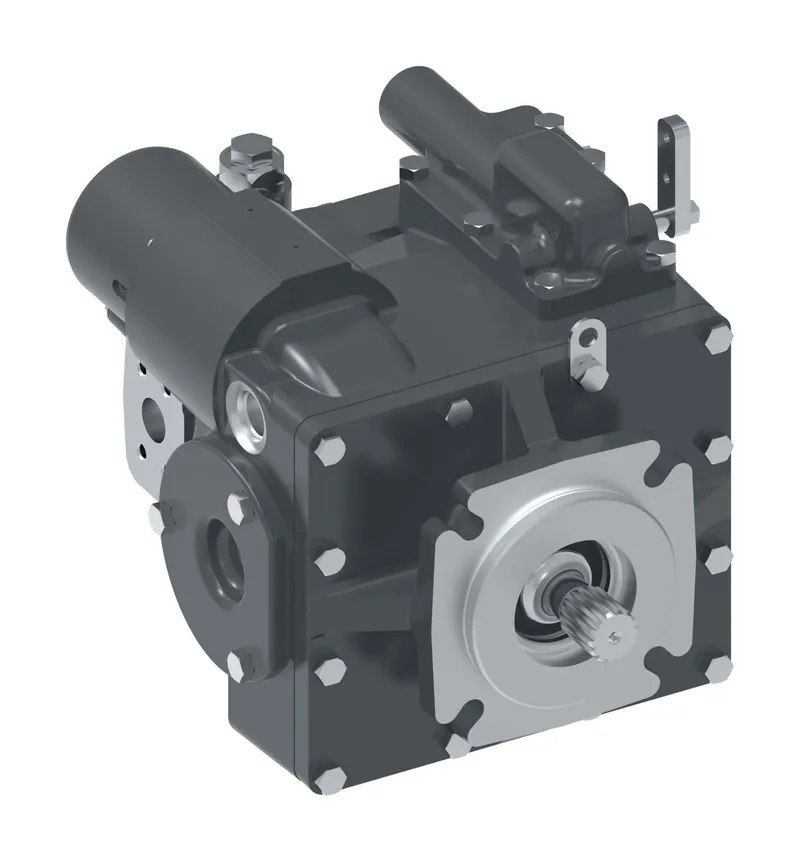

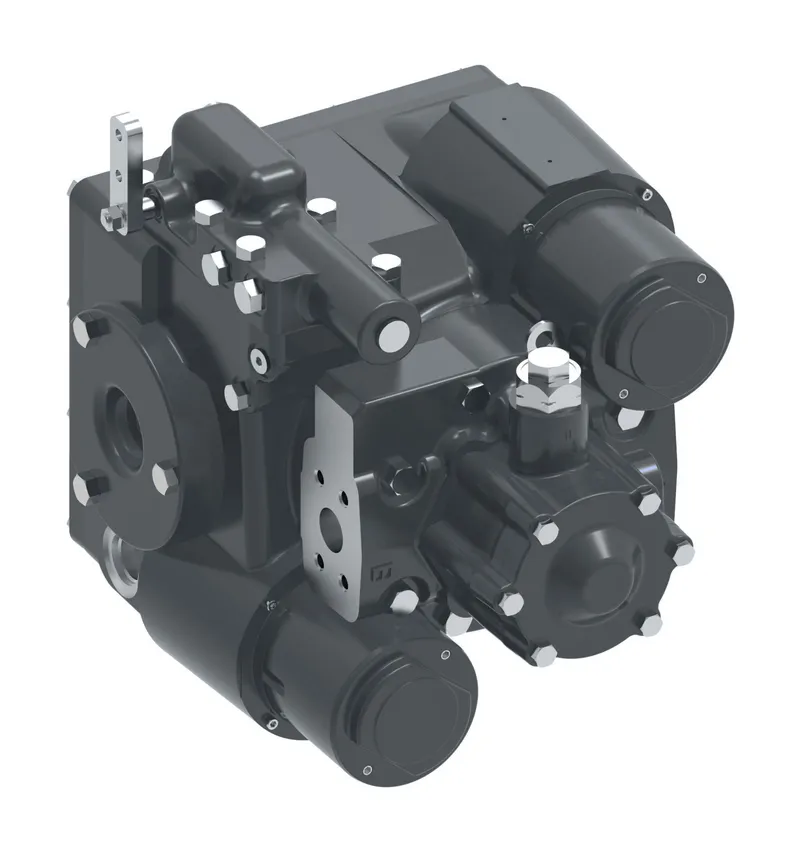

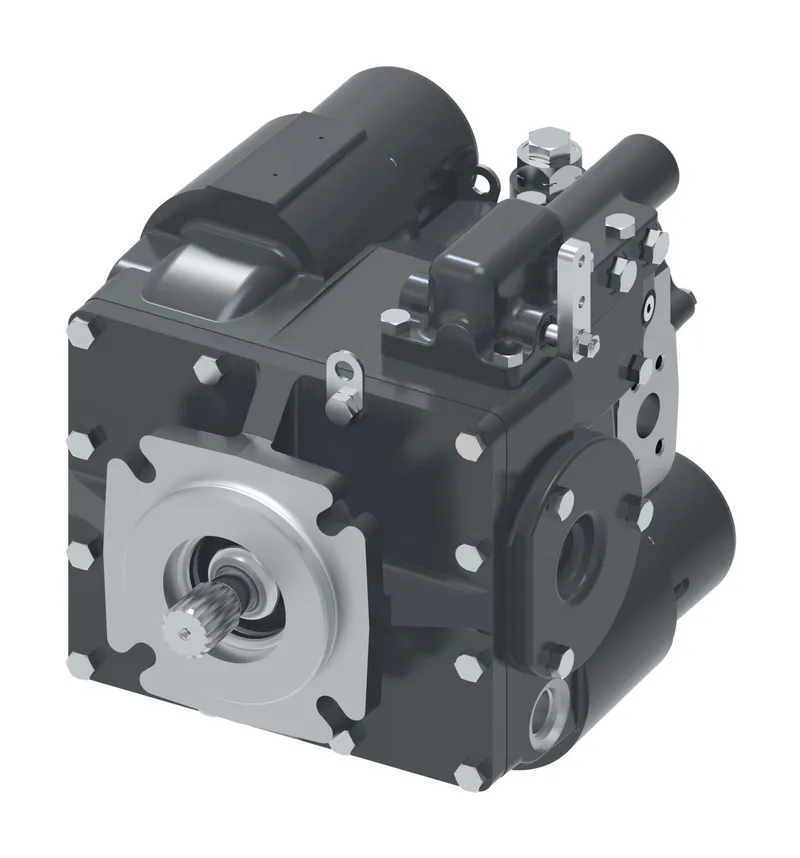

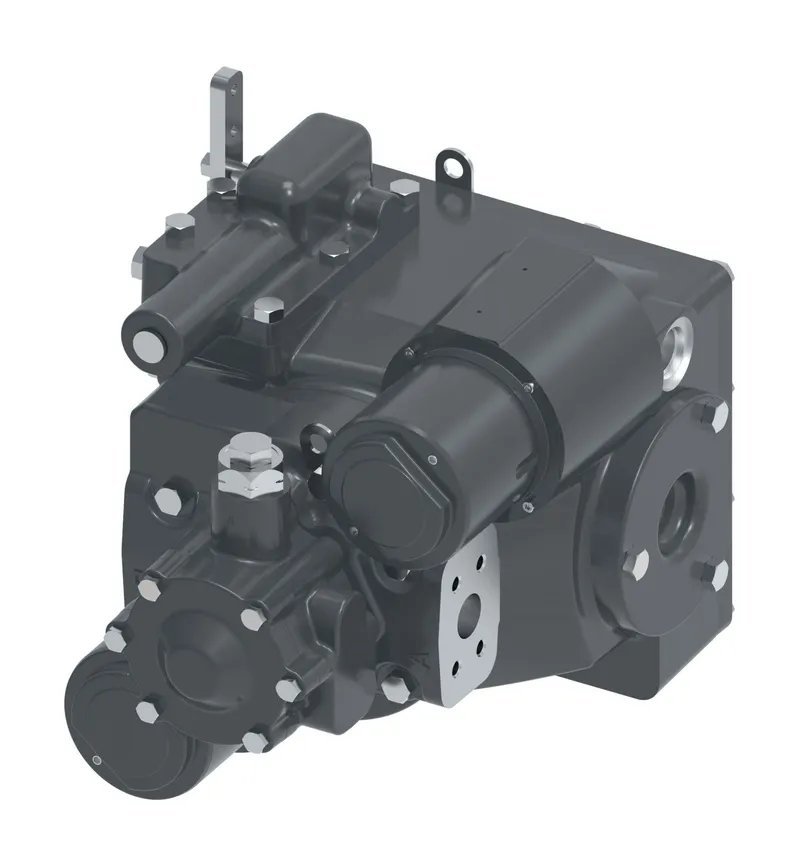

PUMP-VAR DISP, S1PV075 CW, ACA462321R0A00EKD000070030D00000B

MPN: 4623-573
Category: Mobile closed-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4623-573?

Danfoss PUMP-VAR DISP, S1PV075 CW, ACA462321R0A00EKD000070030D00000B, manufacturer part number 4623-573. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Auxiliary mounting	No auxiliary mounting
Brand	Danfoss
Charge pump	Charge pump included
Charge pump displacement	1.28 cid [21.0 cc]
Charge pump special features	No charge pump special features
Control	Electronic proportional control 24 volt DC without electronic driver
Control orifice upper servo S1	No control orifice S1
Control orifice upper servo S2	No control orifice S2
Control special features	Severe duty coils with boots for electronic proportional control
Control supply orifice	1.32 [.052] Diameter
CPRV setting	220 psi [15 bar]
Design code	Design code B
Design type	Series 1, Models 33-64
Displacement	75.28 cm3/r (4.594 in3/r) at 18 deg
Flow rate gpm	82.7
Flow rate lpm	313.2
Identification	Standard
Input rotation	Clockwise (Righthand)
Input shaft	21 tooth 16/32 pitch spline (33/39/46/54/64 only)
Main ports	1.00 code 61 per SAE J518 (not for new applications)
Maximum output speed	4160
Maximum temperature C	82.20
Maximum temperature F	180.00
Model Code 1	ACA462321R0A00EKD000070030D000
Model Code 2	00B
Mounting Flange	4-bolt-C
Output torque lbf*in	4386.9
Output torque n*m	495.7
Paint	Painted primer blue (Standard)
Power limiter valve set port A	PLV Port A, None
Power limiter valve set port B	PLV Port B, None
Press override	No internal pressure override
Pressure override setting	IPOR Setting - None
Product height in	10.560
Product height mm	268.224
Product length in	17.860
Product length mm	453.644
Product Series	Hydrostatic - Heavy duty variable pump
Product width in	10.740
Product width mm	272.796
Second disp of dual element	No dual element
Special pump assembly features	No special features
Type	Variable displacement pump
Valve plate	Standard, V-Groove
Working pressure bar	414
Working pressure psi	6000
