Danfoss 440

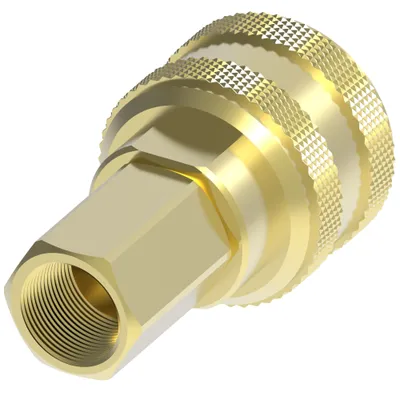

COUPLING,400,F,3/8,B,-8MNPT

MPN: 440
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 440?

Danfoss COUPLING,400,F,3/8,B,-8MNPT, manufacturer part number 440. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146102348
Angle shape	Straight
Body size	3/8
Burst pressure min bar	276
Burst pressure min psi	4000
Connection style	Manual connect
End size 2	-8
End type 1	Female Push to Connect
End type 2	Female pipe (NPTF)
Finish plating	Nickel
Flow rate GPM	336.00
Flow rate LPM	1271.90
Fluid compatibility	Compressed air, Gases and liquids
Hex size 1 IN	1.000
Hex size 1 MM	25.400
Item type	Female half
Latch type	Push/pull
Product height in	1.130
Product height mm	28.702
Product length in	2.620
Product length mm	66.548
Product material	Brass
Product width in	1.130
Product width mm	28.702 mm
Safety locking mechanism	Sleeve lock
Seal material	Nitrile (NBR)
Valve type	2 way
Working pressure max psi	1000
Working pressure max BAR	69
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
