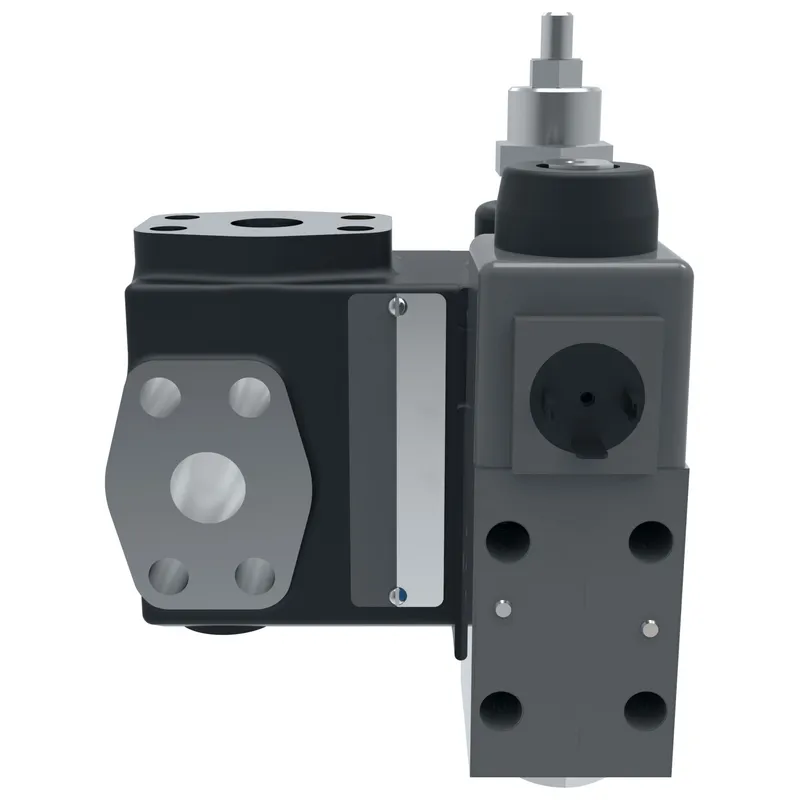

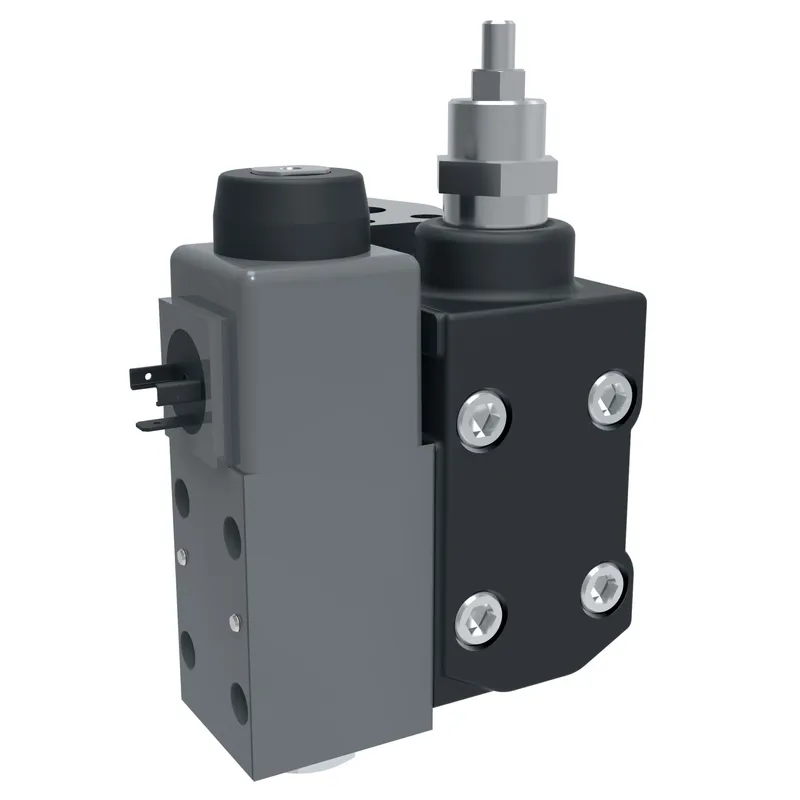

Danfoss 426510

F3 URG2 06 C 13, F3URG206C13

MPN: 426510
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 426510?

Danfoss F3 URG2 06 C 13, F3URG206C13, manufacturer part number 426510. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pilot operated
Adjustment range	35-140 bar (500-2000 psi)
Adjustment type	Screw with locknut
Brand	Vickers by Danfoss
Design Series	13 Series
Drain	Internal
Electrical connection	None
Flow rate lpm	95.0
Flow rate USGPM	25.0
Fluid Cleanliness	19/17/14 Micron
Fluid compatibility	Phosphate esters
Gauge port thread	G 1/8 BSP thd
Hi-vent spring	No
Indicator Light	No
Maximum pressure BAR	210
Maximum pressure PSI	3000
Model Code 1	F3URG206C13
Performance	Standard
Product height in	7.120
Product height mm	180.848
Product length in	6.310
Product length mm	160.274
Product width in	4.000
Product width mm	101.6
Seal material	Fluorocarbon
Size	Size 06
Special feature	None
Stage	Two stage
Valve Mount Type	Subplate/manifold mounted
Valve type	Unloading relief valve
Working temperature max C	70
Working temperature max F	158
Working temperature min C	-20
Working temperature min F	-4
