Danfoss 425773

URG2 10 C 13, URG210C13

MPN: 425773
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 425773?

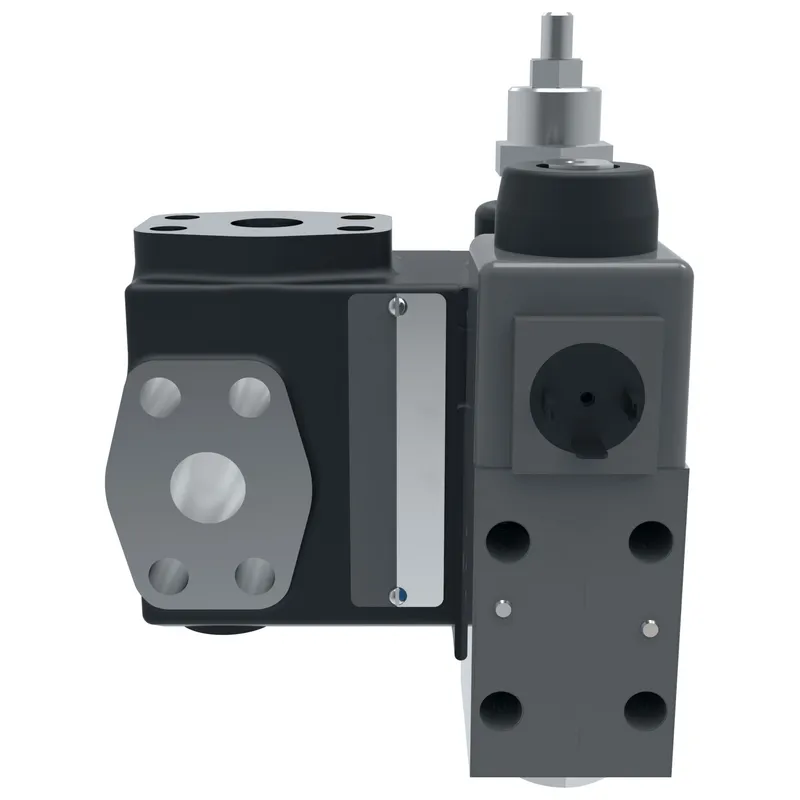

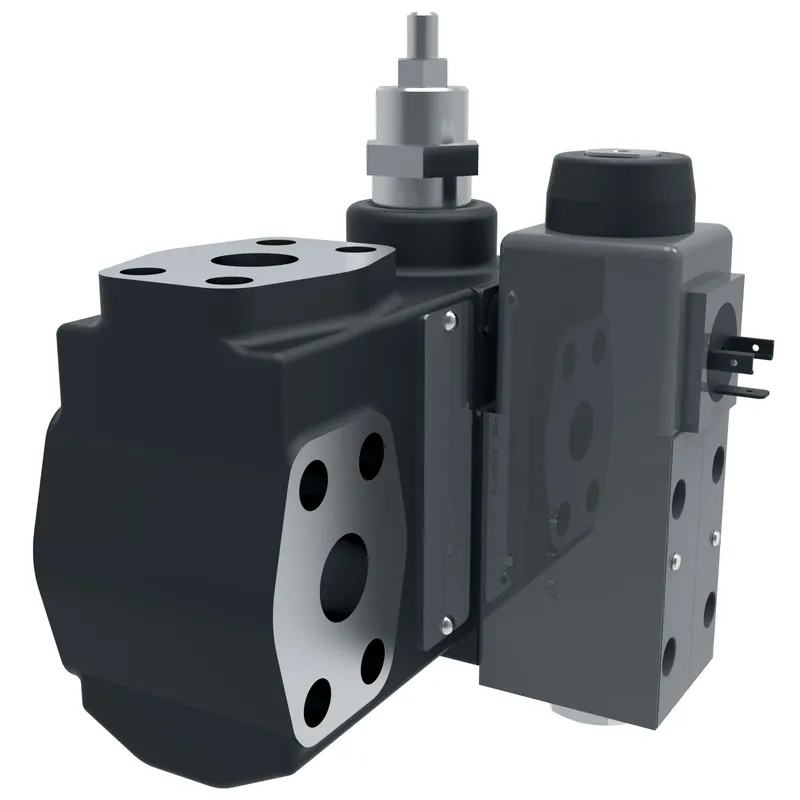

Danfoss URG2 10 C 13, URG210C13, manufacturer part number 425773. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pilot operated
Adjustment range	35-140 bar (500-2000 psi)
Adjustment type	Screw with locknut
Brand	Vickers by Danfoss
Design Series	13 Series
Drain	Internal
Electrical connection	None
Flow rate lpm	246.0
Flow rate USGPM	65.0
Fluid Cleanliness	19/17/14 Micron
Fluid compatibility	Petroleum oils
Gauge port thread	1/4 NPTF
Hi-vent spring	No
Indicator Light	No
Maximum pressure BAR	210
Maximum pressure PSI	3000
Model Code 1	URG210C13
Performance	Standard
Product height in	8.120
Product height mm	206.248
Product length in	4.750
Product length mm	120.650
Product width in	8.560
Product width mm	217.424
Seal material	Nitrile
Size	Size 10
Special feature	None
Stage	Two stage
Valve Mount Type	Subplate/manifold mounted
Valve type	Unloading relief valve
Working temperature max C	70
Working temperature max F	158
Working temperature min C	-20
Working temperature min F	-4
