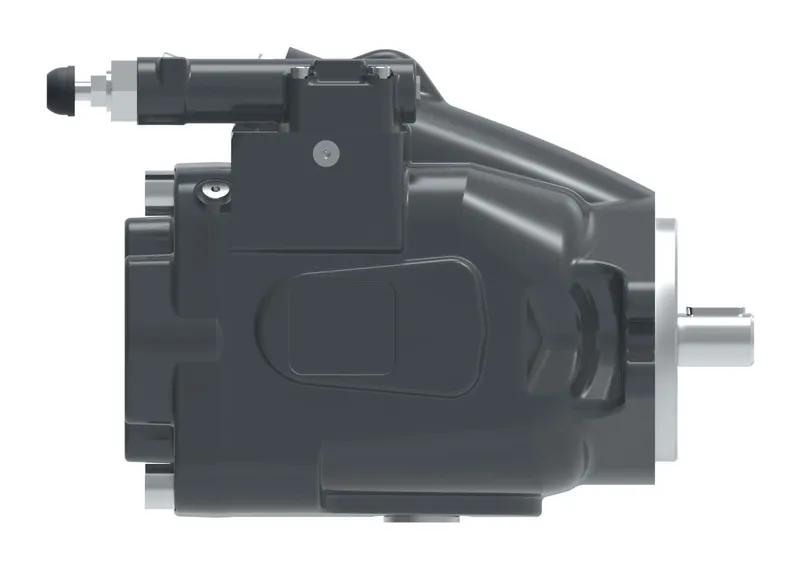

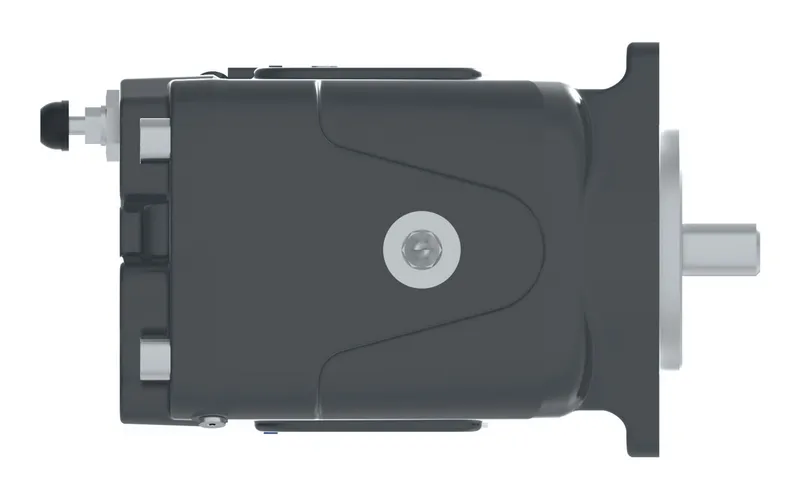

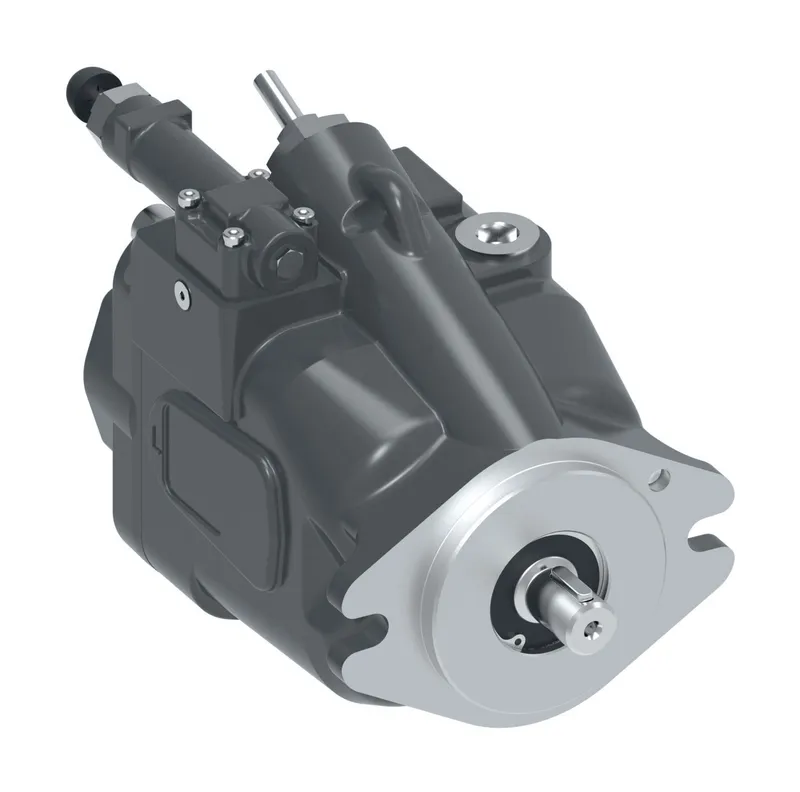

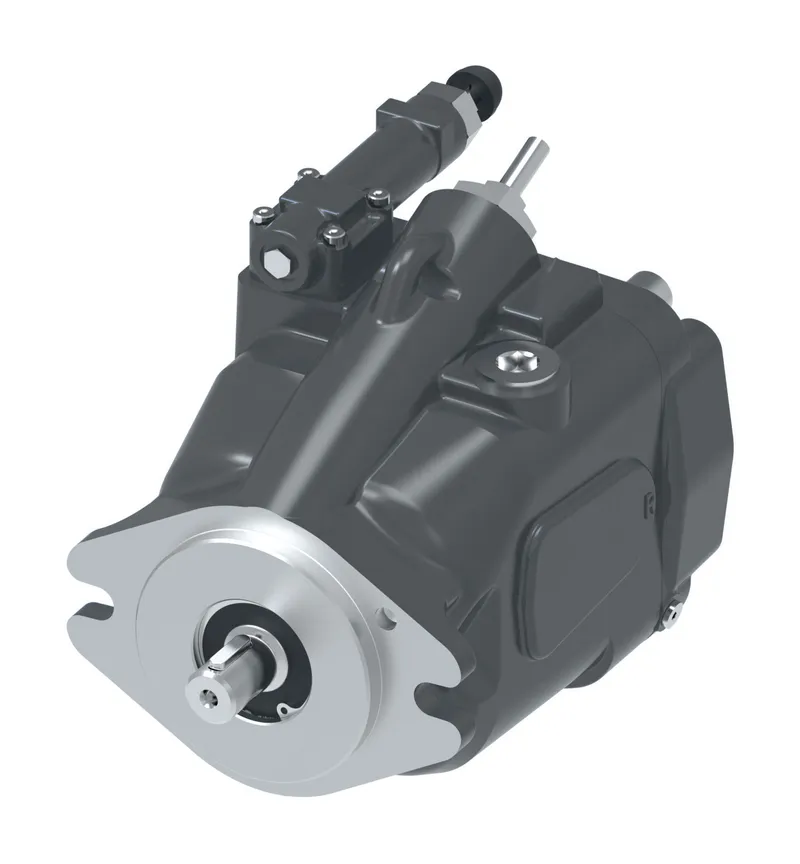

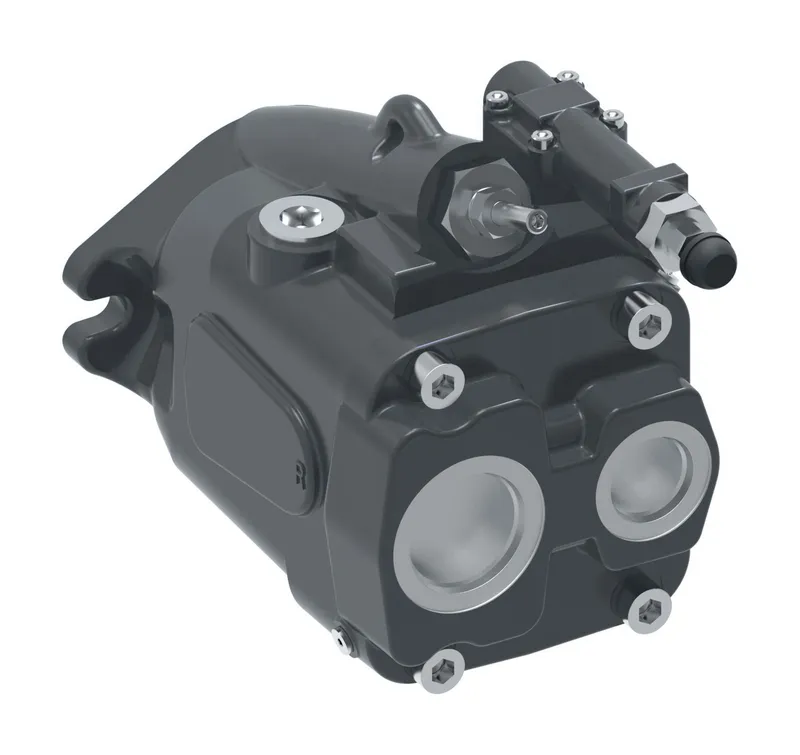

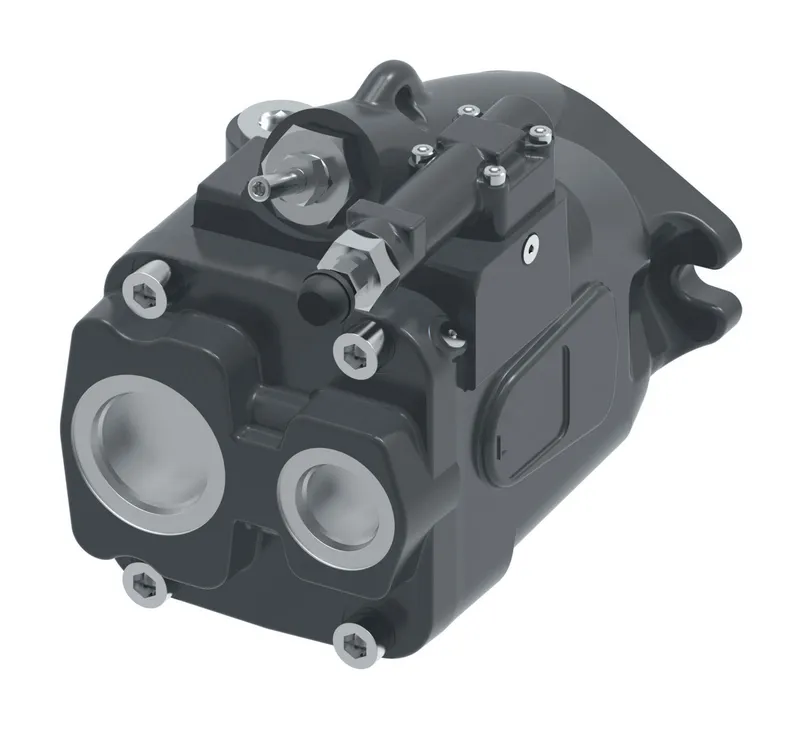

Danfoss 421AK02692C

3.00 CID(49CC)420 CODE C

MPN
421AK02692C
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 421AK02692C?

Danfoss 3.00 CID(49CC)420 CODE C, manufacturer part number 421AK02692C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Aux mount output shaftDUAL SAE J744 FLANGE 101-2 (2 BOLT B); ACCEPTS 13T 16/32 SPLINE WITH 41.2 (1.62) EXT (COUPLER & AUX. MOUNT O-RING INCLUDED)
BrandDanfoss
CODE TITLEPRESSURE COMPENSATED/PRESSURE FLOW COMPENSATED OPEN CIRCUIT PISTON PUMP
Control special featuresNO CONTROL SPECIAL FEATURES
Controller typePRESSURE COMPENSATOR
Design codeTHIRD DESIGN
Diagnostic pressure portsNO DIAGNOSTIC PRESSURE PORTS
Displacement49.2 cm3/r [3.00 in3/r]
Drain port size location1.0625-12 UNF-2B O-RING PORT - TOP
Flow comp rpc settingNO FLOW COMPENSATOR SETTING
Front mounting input shaft2 BOLT B (SAE J744-101-2) WITH 25.4 [1.00] DIA TAPERED KEY SHAFT (SAE J744-25-3) (KEY INCLUDED) .750-16 UNF-2A THREAD SHAFT EXT69.8 [2.75]
Identification packagingMACDON - MARK EATON PRODUCT NUMBER & MODEL CODE UP TO ROTATION & CUSTOMER PRODUCT NUMBER ON LABEL / INDIVIDUAL BOX PACKAGING
Input shaft rotationRIGHT-HAND ROTATION (CW) RIGHT SIDE SUCTION PORT LEFT SIDE PRESSURE PORT
Main ports size locationSIDE PORTS; SUCTION - 2.00 SAE J518 4-BOLT SPLIT FLANGE PORT STANDARD PRESSURE SERIES (CODE 61); PRESSURE - 1.00 SAE J518 4-BOLTSPLIT FLANGE PORT STANDARD PRESSURE SERIES (CODE 61)
Maximum displacement optionEXTERNAL MANUAL STROKE ADJUSTMENT 49.2 cm3/r [3.00 in3/r] LIMITED TO 31 cm3/r [1.89 in3/r])
PaintGRAY PER SPEC 209-13P
PRESSURE COMP SETTING241.3-248.2 bar [3500-3600 lbf/in2]
PUMP SPECIAL FEATURESNO PUMP SPECIAL FEATURES
Shaft sealSTANDARD POLYACRYLATE SHAFT SEAL
Torque control settingNO TORQUE CONTROL OR SECONDARY COMPENSATOR
