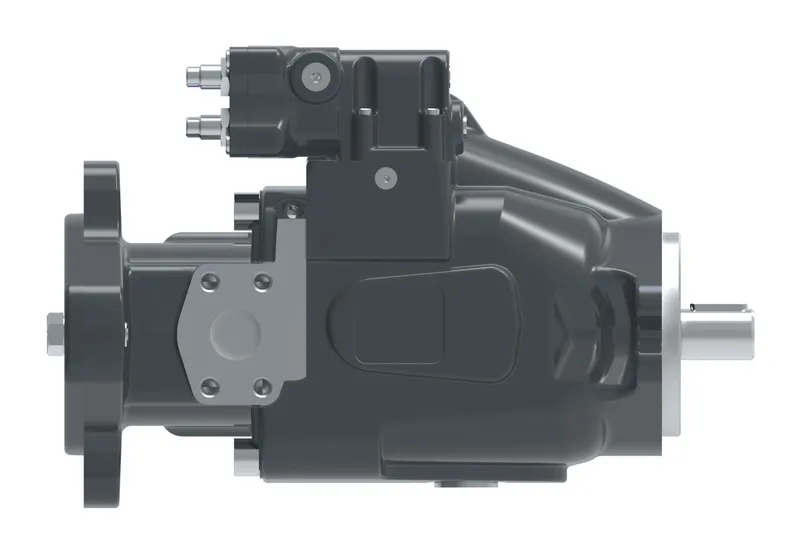

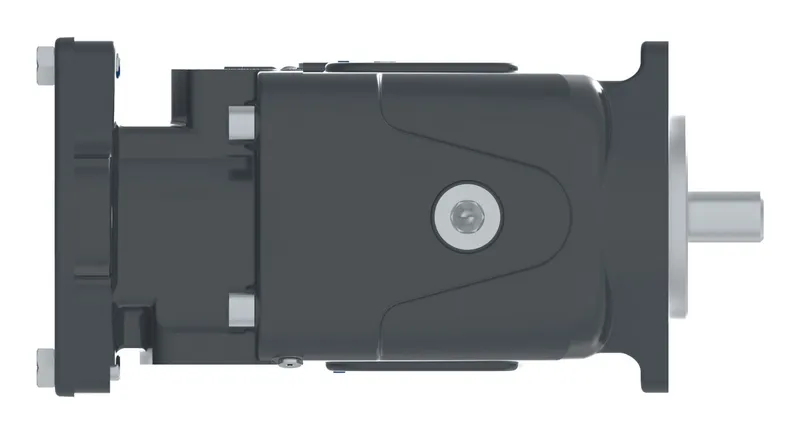

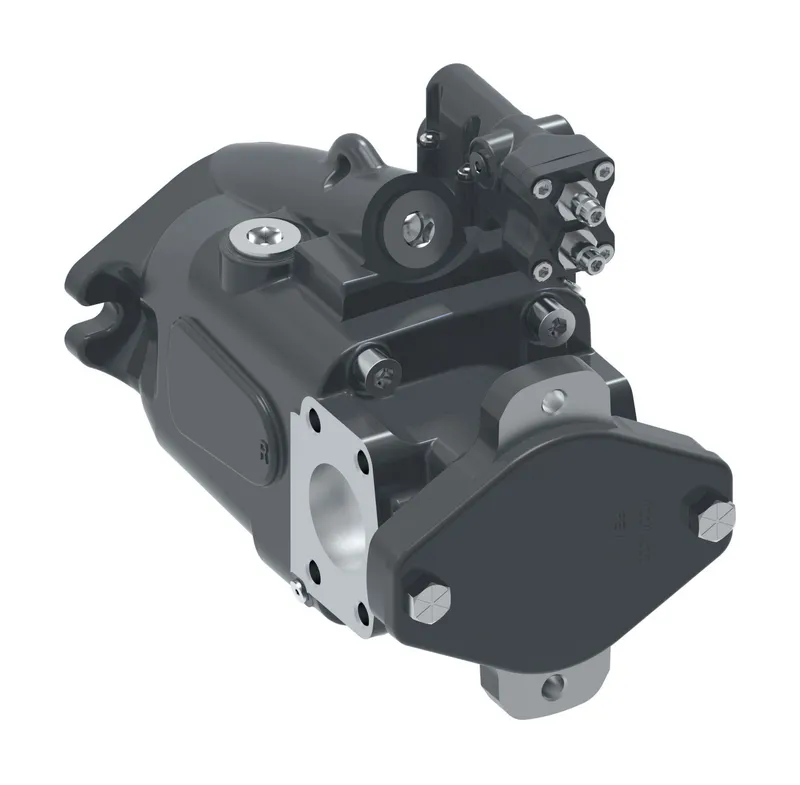

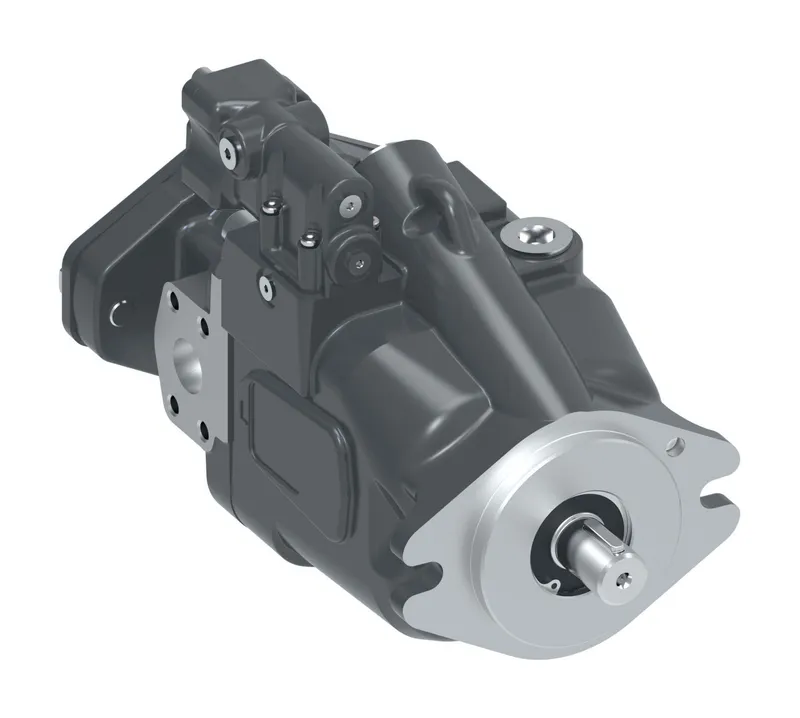

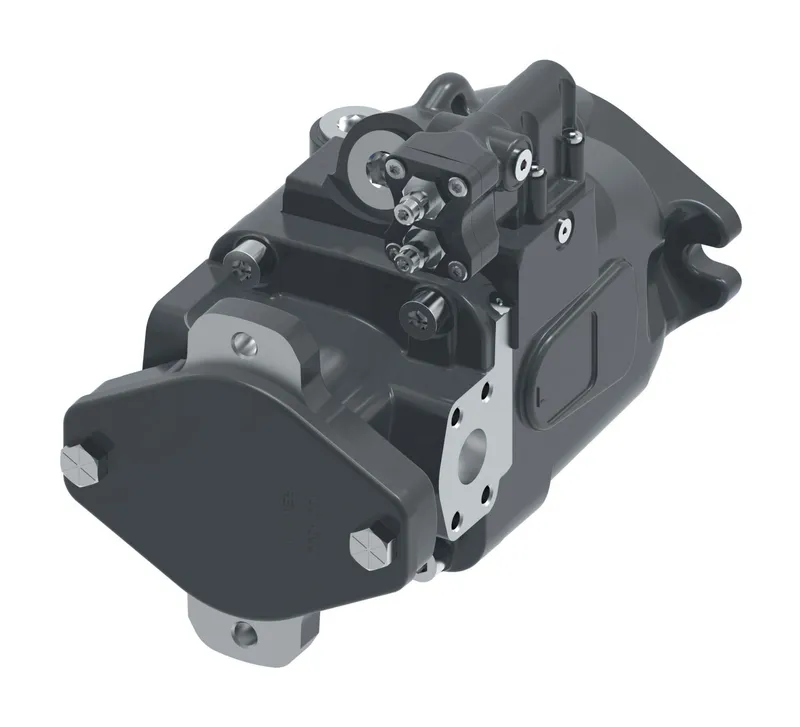

Danfoss 421AK02536C

ADU041L05AD30AB3921000001AH2BB0B00C

MPN
421AK02536C
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 421AK02536C?

Danfoss ADU041L05AD30AB3921000001AH2BB0B00C, manufacturer part number 421AK02536C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Aux mount output shaftSAE J744 FLANGE 101-2 (2 BOLT B WITH M12 X 1.75 THREADS); ACCEPTS 13T 16/32 SPLINE WITH 41.2 (1.62) EXT (COUPLER & AUX MOUNTO-RING INCLUDED)
BrandDanfoss
CODE TITLEPRESSURE COMPENSATED/PRESSURE FLOW COMPENSATED OPEN CIRCUIT PISTON PUMP
Control special featuresNO CONTROL SPECIAL FEATURES
Controller typePRESSURE & FLOW COMPENSATOR WITH M12 X 1.5 METRIC O-RING LOAD SENSE PORT (LEFT SIDE)
Design codeTHIRD DESIGN
Diagnostic pressure portsNO DIAGNOSTIC PRESSURE PORTS
Displacement41.0 cm3/r [2.50 in3/r]
Drain port size locationM27 X 2 METRIC O-RING PORT - TOP
Flow comp rpc setting19.31-22.06 bar [280-320 lbf/in2]
Front mounting input shaft2 BOLT B (SAE J744-101-2) WITH 13 TOOTH 16/32 SPLINE (ANSI B92.1-1996 MOD) SHAFT EXT 41.1 [1.62]
Identification packagingMARK EATON PRODUCT NUMBER & FULL MODEL CODE ON LABEL / INDIVIDUAL BOX PACKAGING
Input shaft rotationLEFT-HAND ROTATION (CCW) LEFT SIDE SUCTION PORT RIGHT SIDE PRESSURE PORT
Main ports size locationSIDE PORTS; SUCTION - 2.00 4-BOLT SPLIT FLANGE PORT STANDARD PRESSURE SERIES (CODE 61) WITH M12 X 1.75 THREAD; PRESSURE - 1.004-BOLT SPLIT FLANGE PORT STANDARD PRESSURE SERIES (CODE 61) WITH M10 X 1.5 THREAD
Maximum displacement optionSTANDARD DISPLACEMENT (AS GIVEN IN CODE TITLE)
PaintBLACK PER SPEC 209-13B
PRESSURE COMP SETTING258.6-265.4 bar [3750-3850 lbf/in2]
PUMP SPECIAL FEATURESMODIFIED ENDCOVER REMOVED BOTH EARS AT 2.5in FROM MODIFIED ENDCOVER REMOVED BOTH EARS AT 2.5in FROM
Shaft sealFLUOROCARBON RUBBER SHAFT SEAL
Torque control settingNO TORQUE CONTROL OR SECONDARY COMPENSATOR
