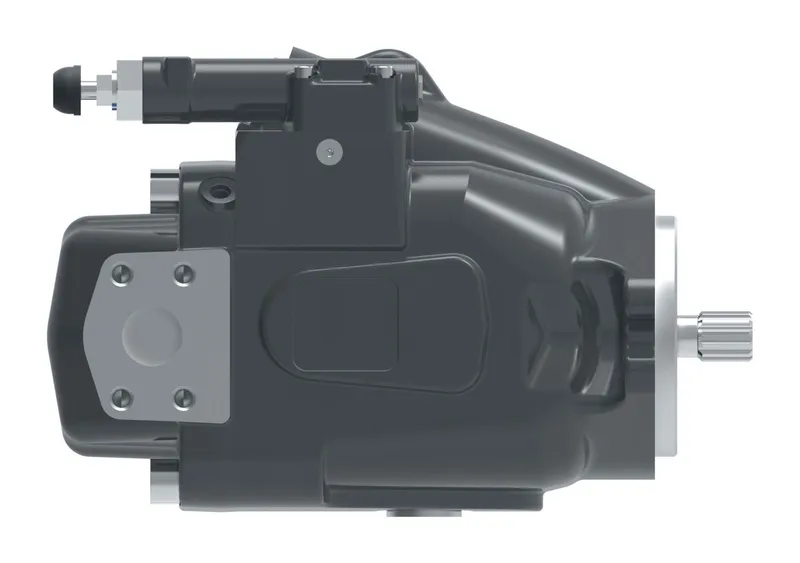

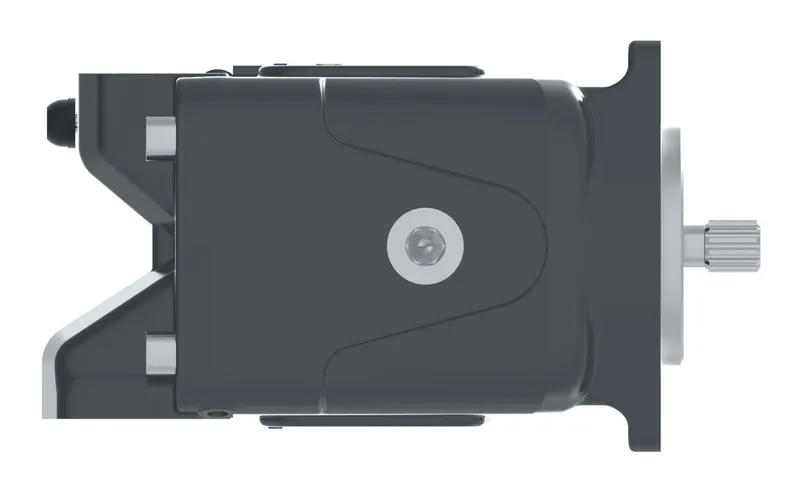

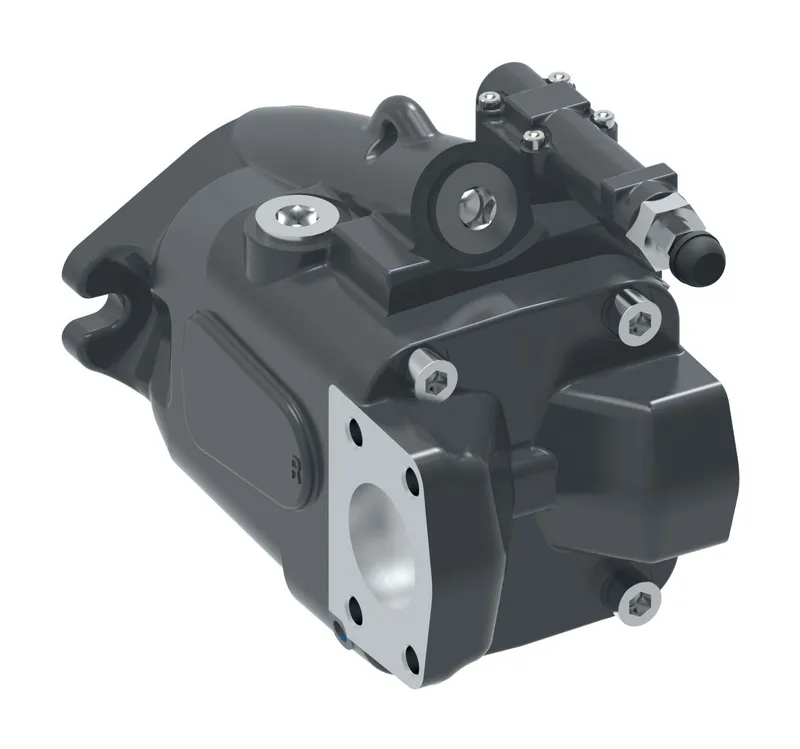

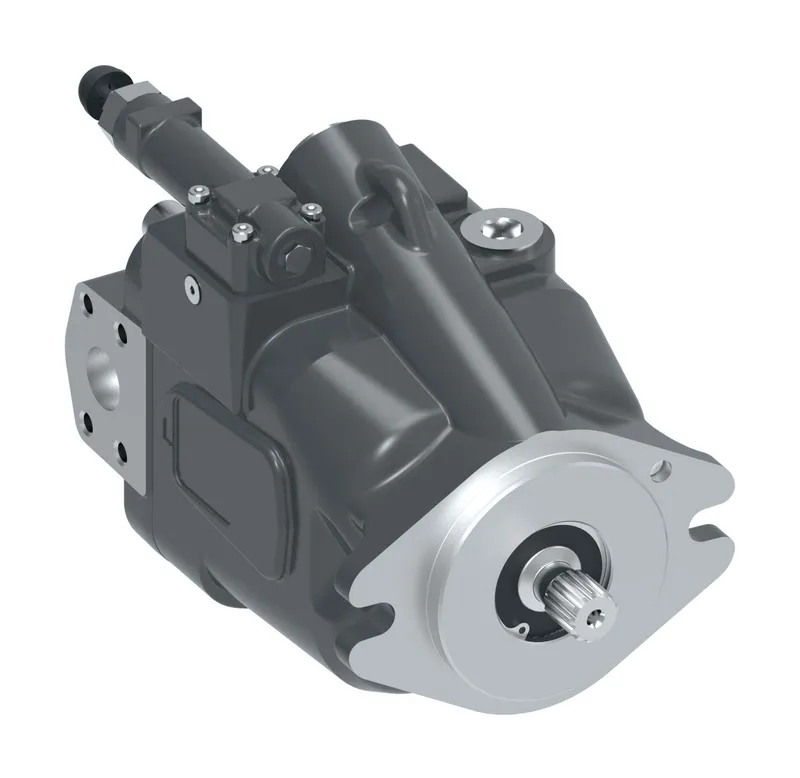

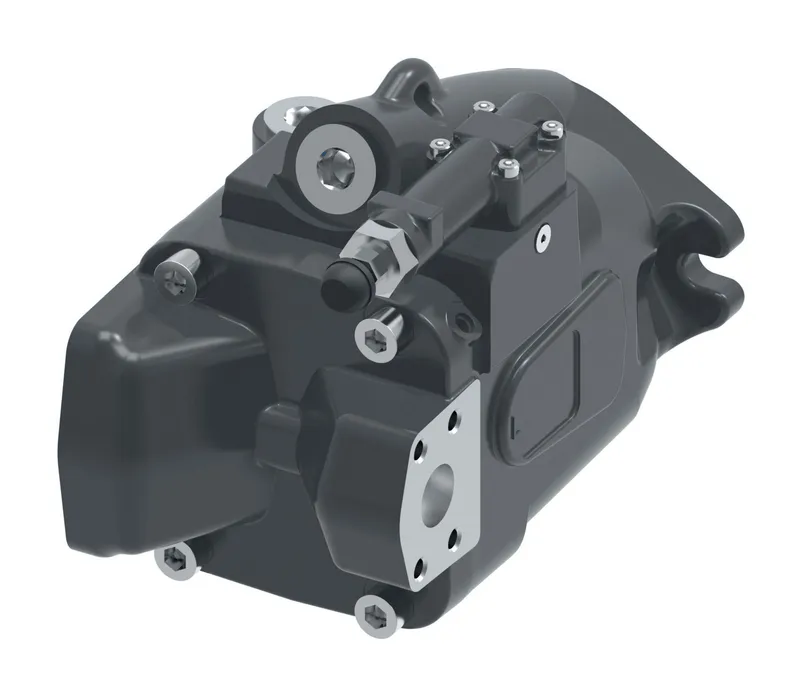

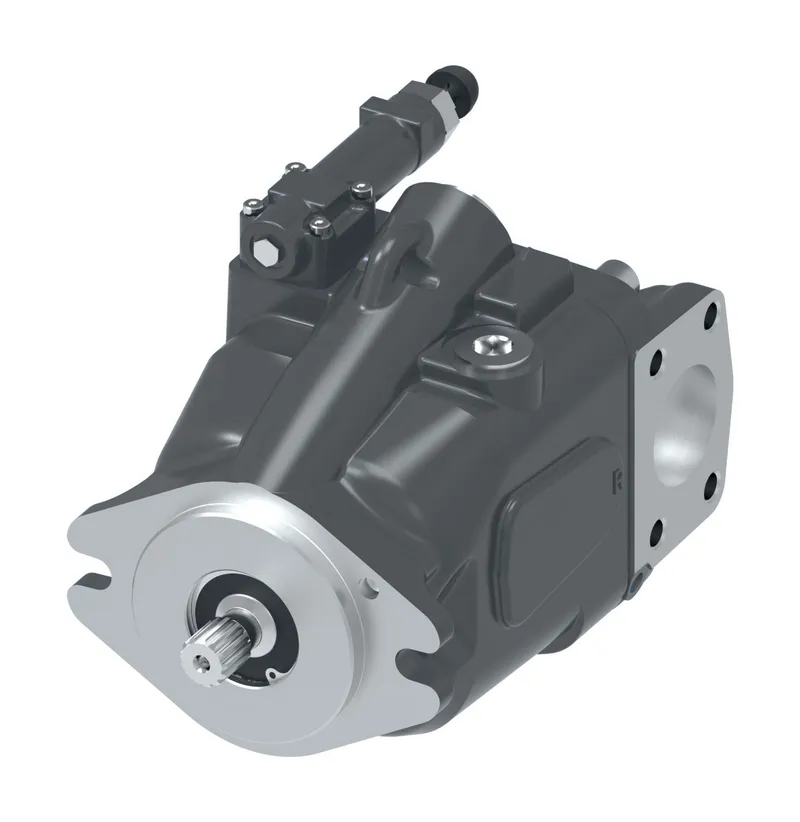

Danfoss 421AK02035C

3.00 CID(49CC)420 CODE C

MPN
421AK02035C
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 421AK02035C?

Danfoss 3.00 CID(49CC)420 CODE C, manufacturer part number 421AK02035C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Aux mount output shaftNO AUXILIARY MOUNTING FEATURES
BrandDanfoss
CODE TITLEPRESSURE COMPENSATED/PRESSURE FLOW COMPENSATED OPEN CIRCUIT PISTON PUMP
Control special features24 VDC DESTROKE MANIFOLD WITH DIN CONNECTOR TOP MOUNTING
Controller typePRESSURE COMPENSATOR
Design codeTHIRD DESIGN
Diagnostic pressure portsNO DIAGNOSTIC PRESSURE PORTS
Displacement49.2 cm3/r [3.00 in3/r]
Drain port size location1.0625-12 UNF-2B O-RING PORT - TOP
Flow comp rpc settingNO FLOW COMPENSATOR SETTING
Front mounting input shaft2 BOLT B (SAE J744-101-2) WITH 13 TOOTH 16/32 SPLINE (ANSI B92.1-1996 MOD) SHAFT EXT 41.1 [1.62]
Identification packagingMARK EATON PRODUCT NUMBER & FULL MODEL CODE ON LABEL / INDIVIDUAL BOX PACKAGING
Input shaft rotationRIGHT-HAND ROTATION (CW) RIGHT SIDE SUCTION PORT LEFT SIDE PRESSURE PORT
Main ports size locationSIDE PORTS; SUCTION - 2.00 SAE J518 4-BOLT SPLIT FLANGE PORT STANDARD PRESSURE SERIES (CODE 61); PRESSURE - 1.00 SAE J518 4-BOLTSPLIT FLANGE PORT STANDARD PRESSURE SERIES (CODE 61)
Maximum displacement optionSTANDARD DISPLACEMENT (AS GIVEN IN CODE TITLE)
PaintBLUE PRIMER PER SPEC 209-13CD
PRESSURE COMP SETTING206.8-213.7 bar [3000-3100 lbf/in2]
PUMP SPECIAL FEATURESNO PUMP SPECIAL FEATURES
Shaft sealSTANDARD POLYACRYLATE SHAFT SEAL
Torque control settingNO TORQUE CONTROL OR SECONDARY COMPENSATOR

421AK02035C: frequently asked questions

When can 421AK02035C be shipped?

421AK02035C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 421AK02035C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 421AK02035C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 421AK02035C, subject to availability and destination.
