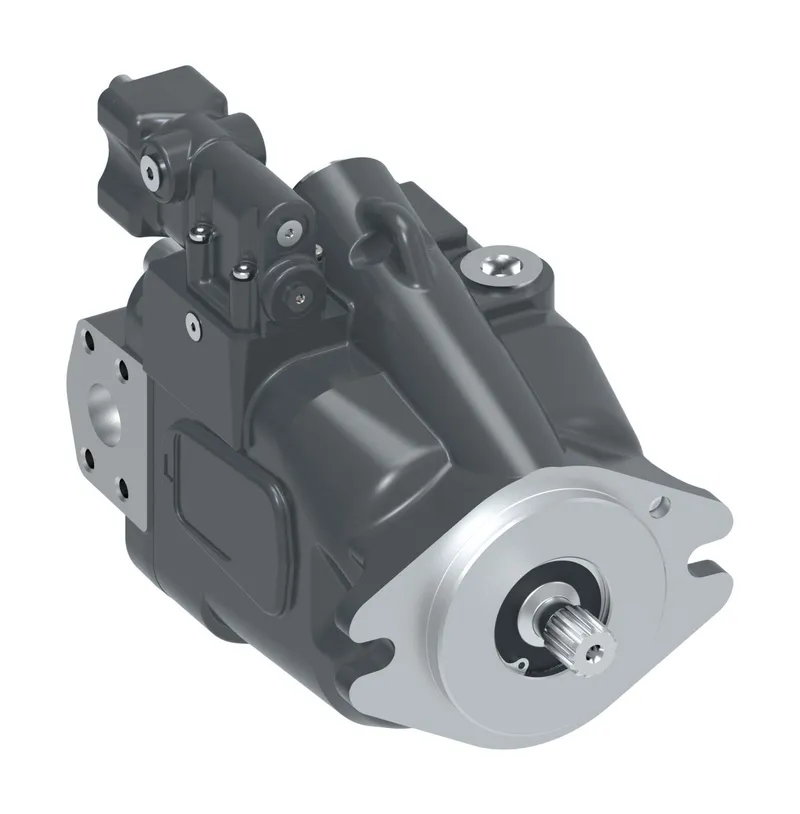

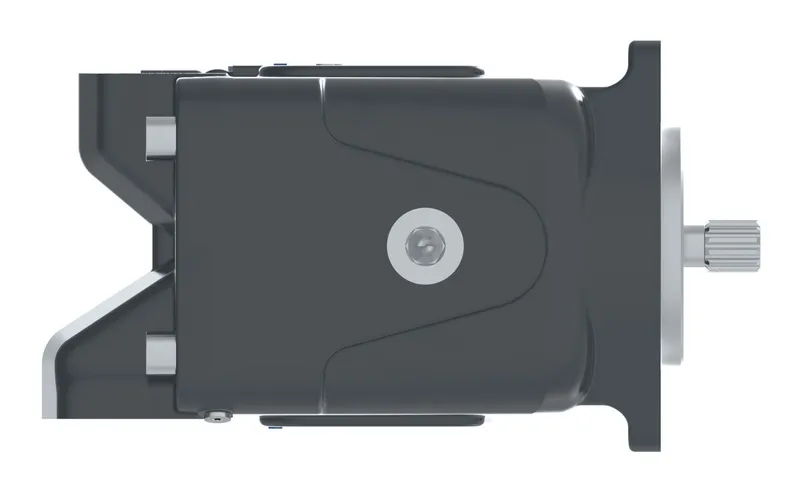

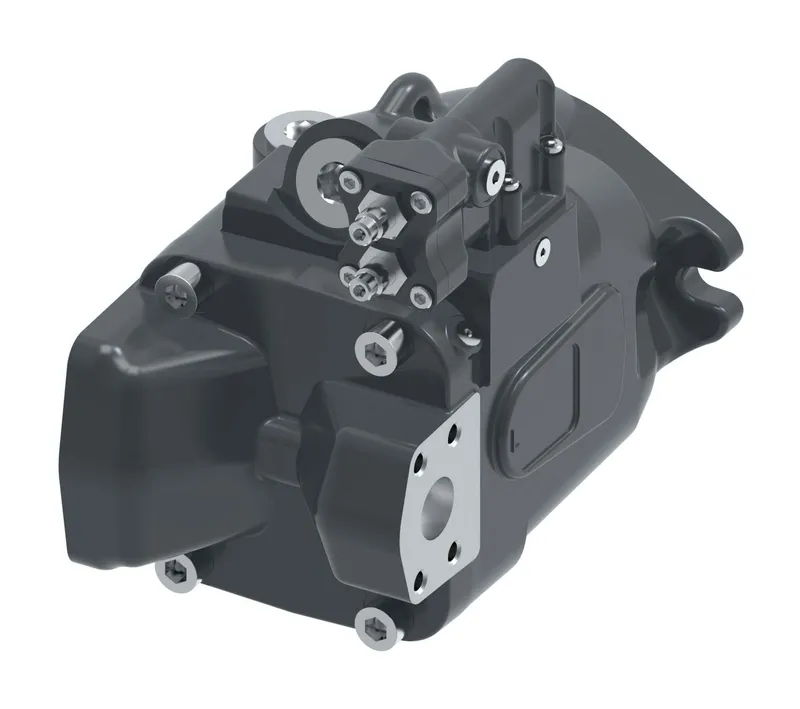

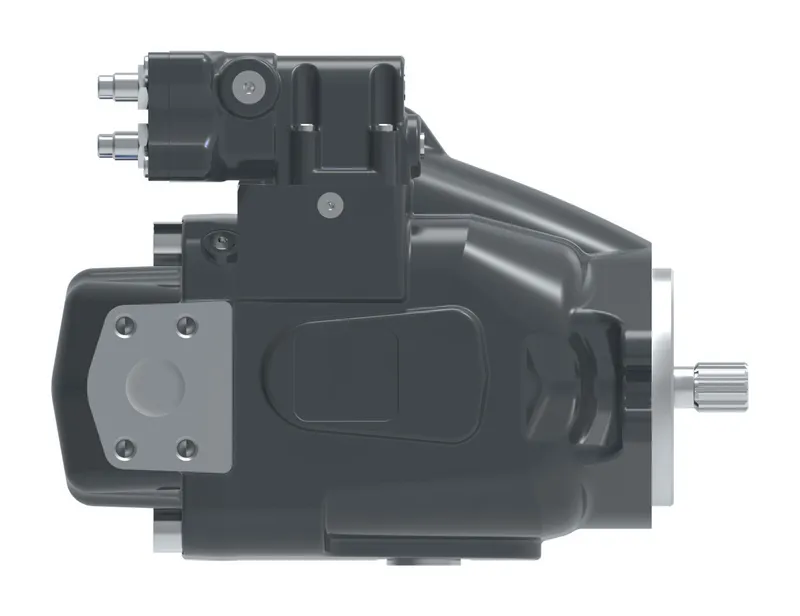

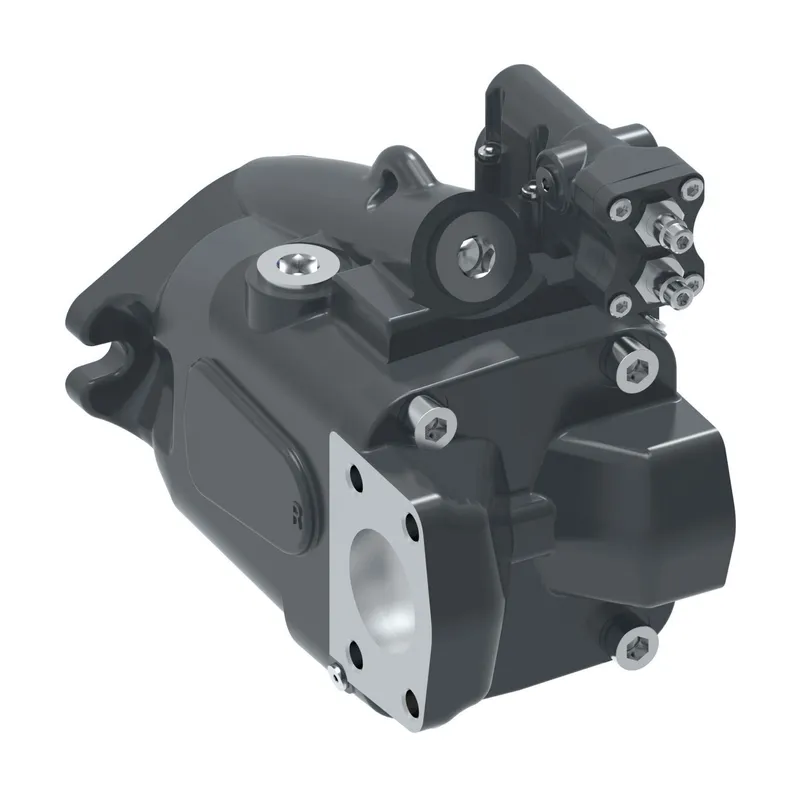

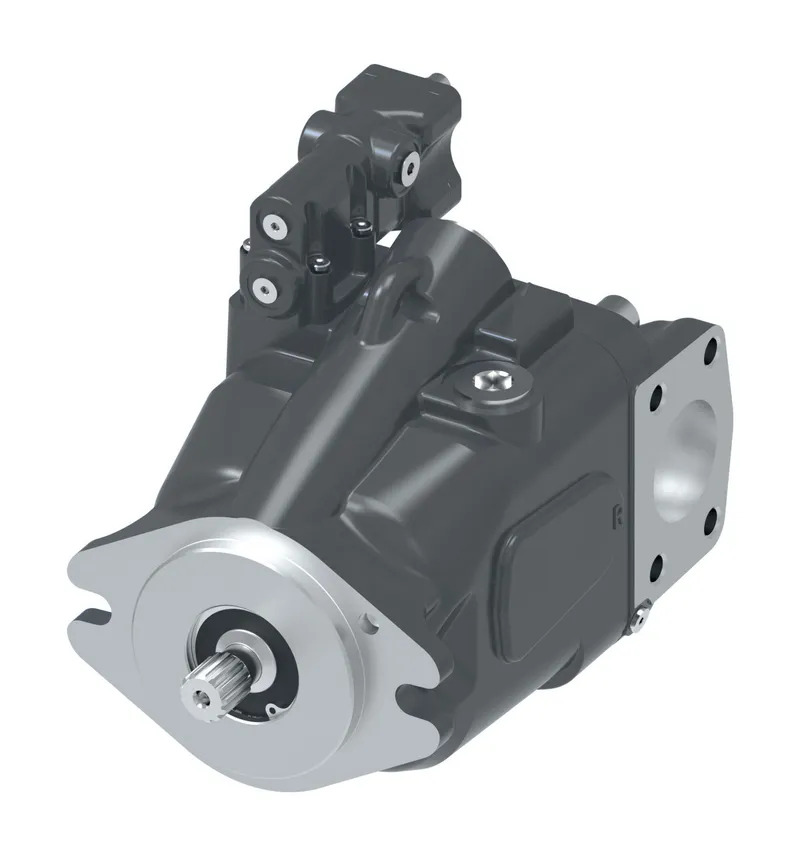

Danfoss 421AK01946C-S

ADU049R05AB20AA3520000A0100200CD0VC

MPN: 421AK01946C-S
Category: X20 series piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 421AK01946C-S?

Danfoss ADU049R05AB20AA3520000A0100200CD0VC, manufacturer part number 421AK01946C-S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Aux mount output shaft	NO AUXILIARY MOUNTING FEATURES
Brand	Danfoss
CODE TITLE	PRESSURE COMPENSATED/PRESSURE FLOW COMPENSATED OPEN CIRCUIT PISTON PUMP
Control special features	BLEED DOWN ORIFICE
Controller type	PRESSURE & FLOW COMPENSATOR WITH .4375-20 SAE O-RING LOAD SENSE PORT (LEFT SIDE)
Design code	THIRD DESIGN
Diagnostic pressure ports	NO DIAGNOSTIC PRESSURE PORTS
Displacement	49.2 cm3/r [3.00 in3/r]
Drain port size location	1.0625-12 UNF-2B O-RING PORT - BOTTOM
Flow comp rpc setting	17.24-19.99 bar [250-290 lbf/in2]
Front mounting input shaft	2 BOLT B (SAE J744-101-2) WITH 13 TOOTH 16/32 SPLINE (ANSI B92.1-1996 MOD) SHAFT EXT 41.1 [1.62]
Identification packaging	MARK EATON PRODUCT NUMBER & FULL MODEL PACKAGING CODE ON LABEL FOR CHINA CUSTOMER /INDIVIDUAL BOX PACKAGING
Input shaft rotation	RIGHT-HAND ROTATION (CW) RIGHT SIDE SUCTION PORT LEFT SIDE PRESSURE PORT
Main ports size location	SIDE PORTS; SUCTION - 2.00 SAE J518 4-BOLT SPLIT FLANGE PORT STANDARD PRESSURE SERIES (CODE 61); PRESSURE - 1.00 SAE J518 4-BOLTSPLIT FLANGE PORT STANDARD PRESSURE SERIES (CODE 61)
Maximum displacement option	STANDARD DISPLACEMENT (AS GIVEN IN CODE TITLE)
Paint	BLUE PRIMER PER SPEC 209-13CD
PRESSURE COMP SETTING	241.3-248.2 bar [3500-3600 lbf/in2]
PUMP SPECIAL FEATURES	NO PUMP SPECIAL FEATURES
Shaft seal	FLUOROCARBON RUBBER SHAFT SEAL
Torque control setting	NO TORQUE CONTROL OR SECONDARY COMPENSATOR
