Danfoss 421AK01901C

4.88 CID(80CC)420 CODE C

MPN: 421AK01901C
Category: X20 series piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 421AK01901C?

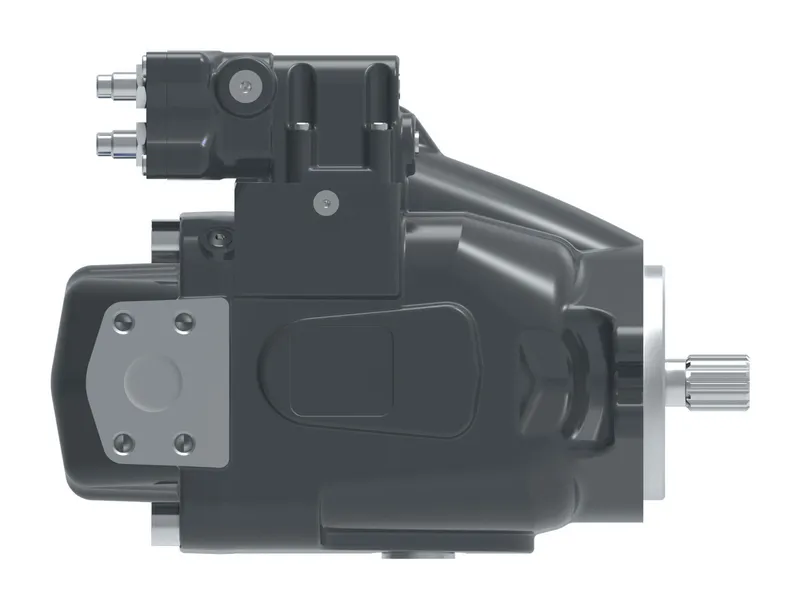

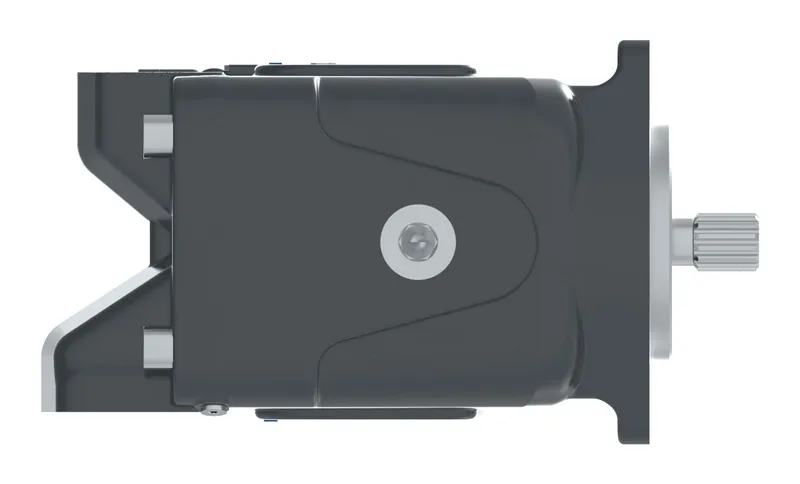

Danfoss 4.88 CID(80CC)420 CODE C, manufacturer part number 421AK01901C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Aux mount output shaft	NO AUXILIARY MOUNTING FEATURES
Brand	Danfoss
CODE TITLE	PRESSURE COMPENSATED/PRESSURE FLOW COMPENSATED OPEN CIRCUIT PISTON PUMP
Control special features	NO CONTROL SPECIAL FEATURES
Controller type	PRESSURE & FLOW COMPENSATOR WITH .4375-20 SAE O-RING LOAD SENSE PORT (LEFT SIDE)
Design code	THIRD DESIGN
Diagnostic pressure ports	NO DIAGNOSTIC PRESSURE PORTS
Displacement	80.0 cm3/r [4.88 in3/r]
Drain port size location	1.0625-12 UNF-2B O-RING PORT - TOP
Flow comp rpc setting	12.41-15.17 bar [180-220 lbf/in2]
Front mounting input shaft	2 BOLT B (SAE J744-101-2) WITH 15 TOOTH 16/32 SPLINE (ANSI B92.1-1996 MOD) SHAFT EXT 46 [1.81]
Identification packaging	MARK EATON PRODUCT NUMBER & FULL MODEL CODE ON LABEL / INDIVIDUAL BOX PACKAGING
Input shaft rotation	LEFT-HAND ROTATION (CCW) LEFT SIDE SUCTION PORT RIGHT SIDE PRESSURE PORT
Main ports size location	SIDE PORTS; SUCTION - 2.00 SAE J518 4-BOLT SPLIT FLANGE PORT STANDARD PRESSURE SERIES (CODE 61); PRESSURE - 1.00 SAE J518 4-BOLTSPLIT FLANGE PORT STANDARD PRESSURE SERIES (CODE 61)
Maximum displacement option	STANDARD DISPLACEMENT (AS GIVEN IN CODE TITLE)
Paint	BLUE PRIMER PER SPEC 209-13CD
PRESSURE COMP SETTING	206.8-213.7 bar [3000-3100 lbf/in2]
PUMP SPECIAL FEATURES	NO PUMP SPECIAL FEATURES
Shaft seal	STANDARD POLYACRYLATE SHAFT SEAL
Torque control setting	NO TORQUE CONTROL OR SECONDARY COMPENSATOR
