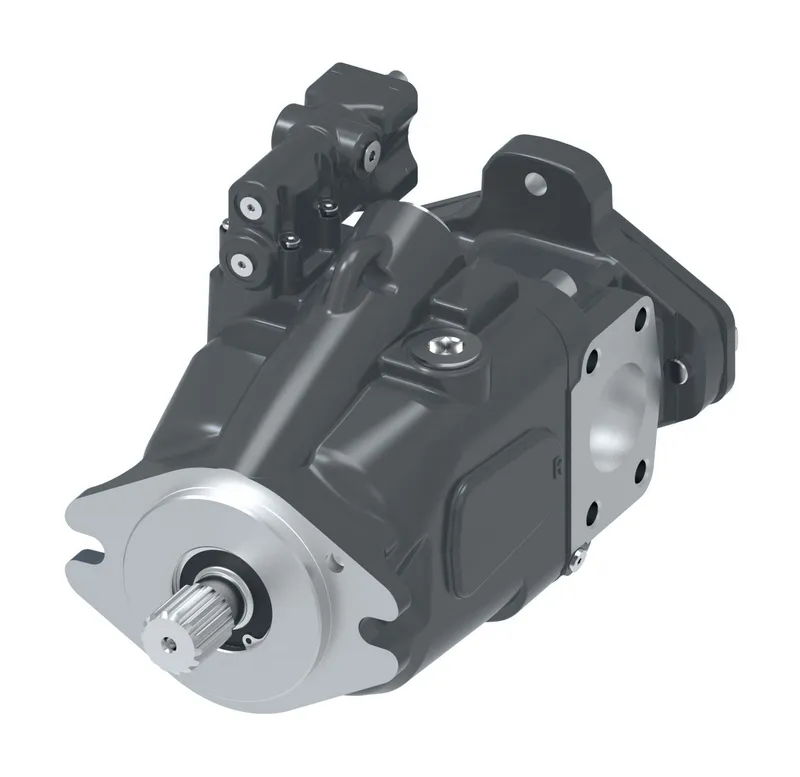

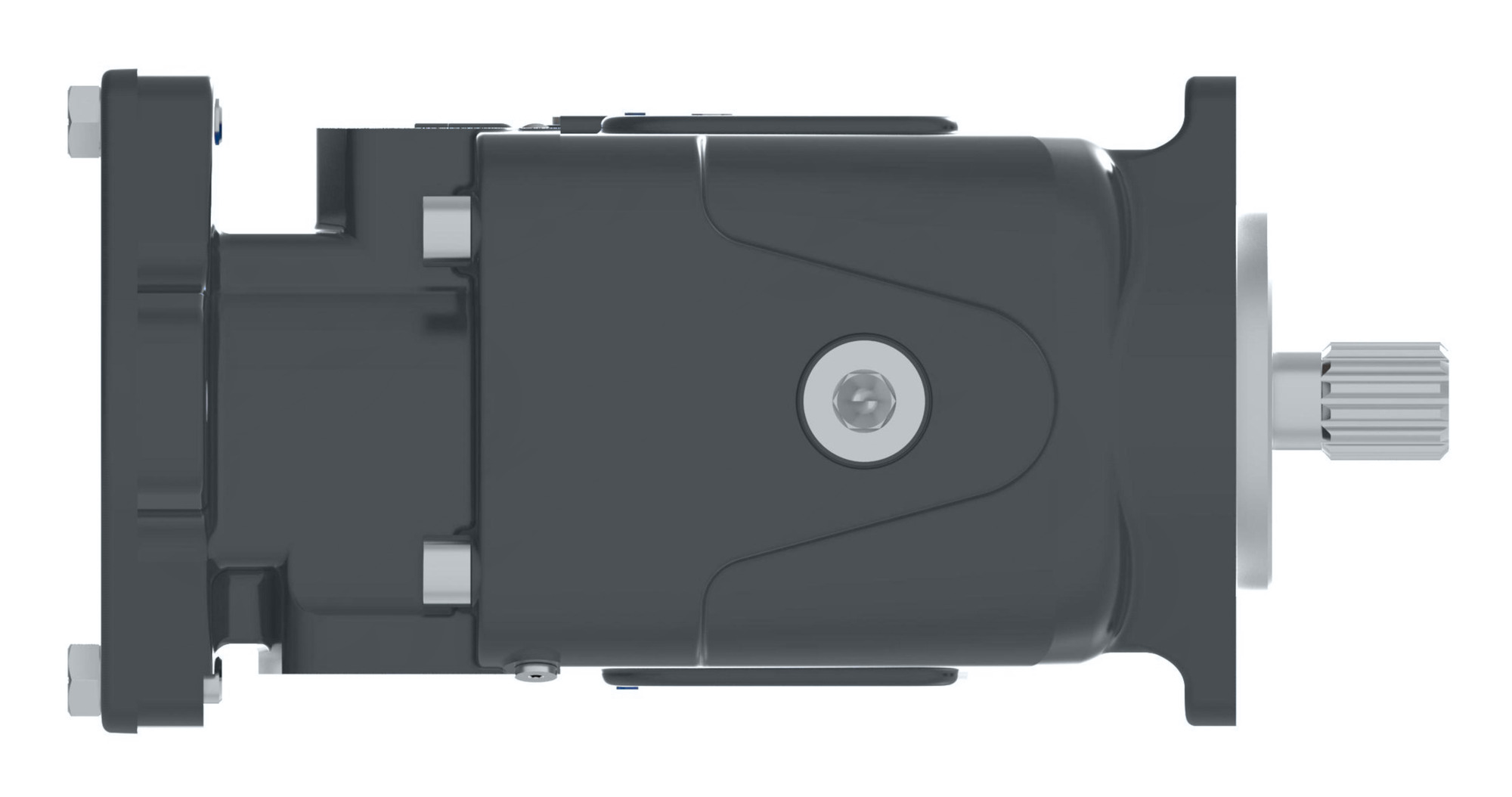

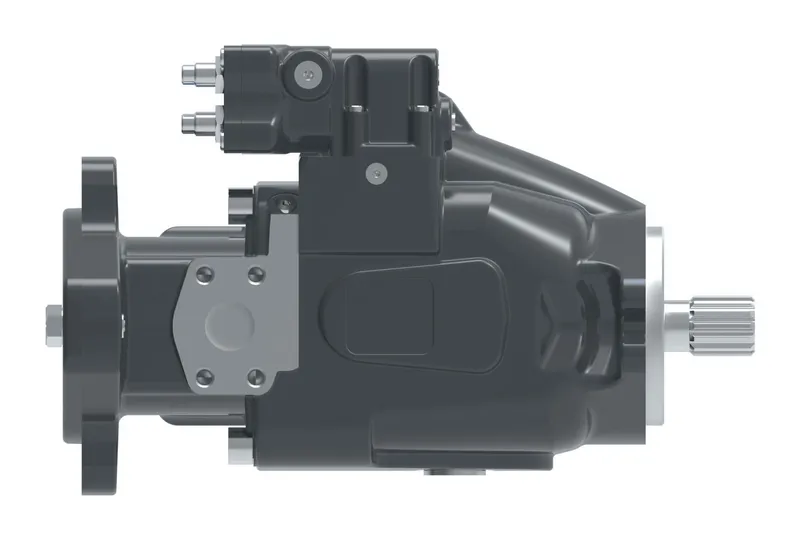

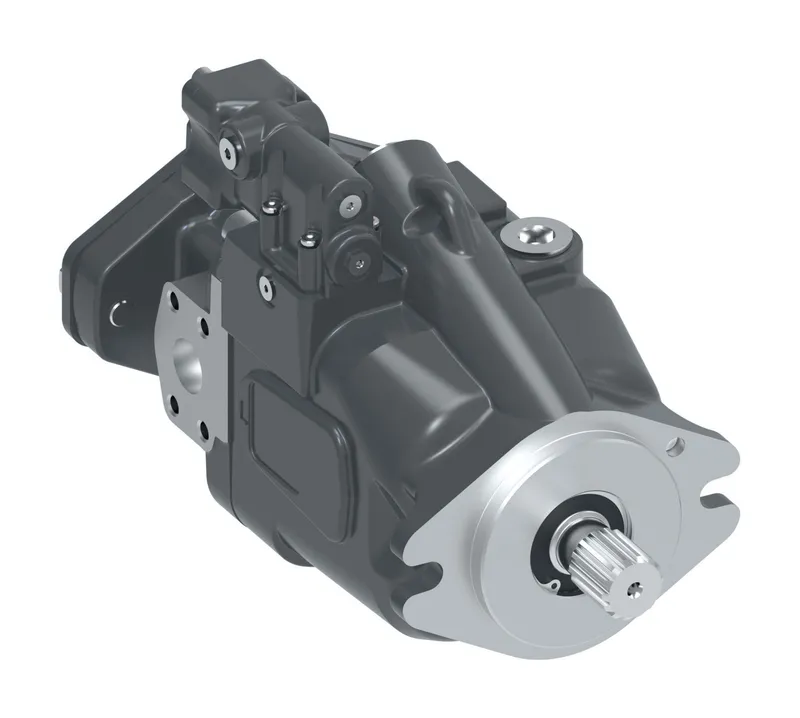

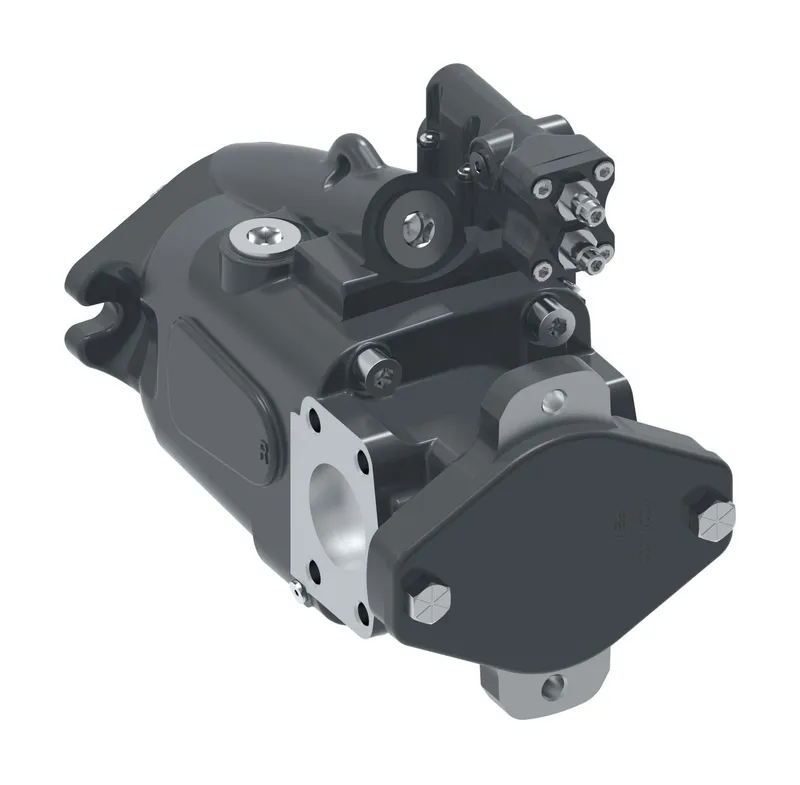

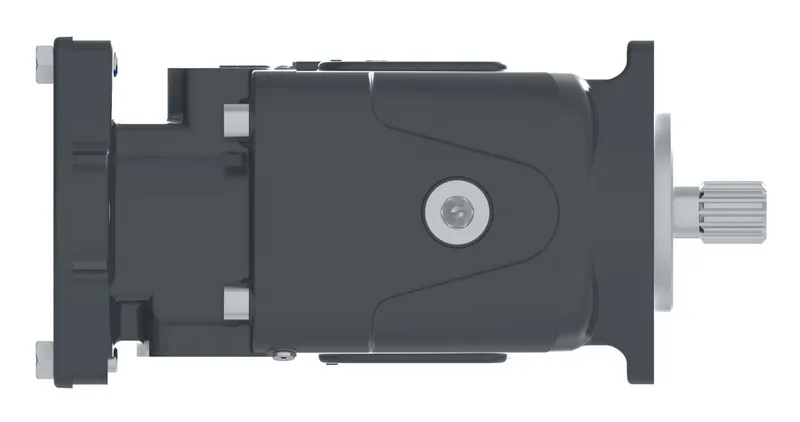

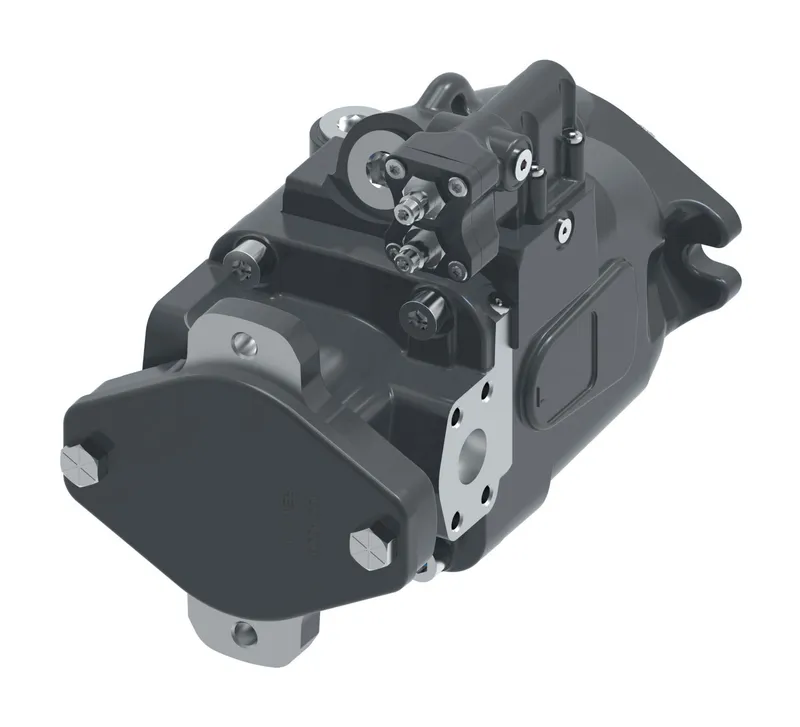

Danfoss 421AK01864C

ADU049R08AB10AA3520000001AC100CD00C

MPN: 421AK01864C
Category: X20 series piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 421AK01864C?

Danfoss ADU049R08AB10AA3520000001AC100CD00C, manufacturer part number 421AK01864C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Aux mount output shaft	DUAL SAE J744 FLANGE 101-2 (2 BOLT B); ACCEPTS 13T 16/32 SPLINE WITH 41.2 (1.62) EXT (COUPLER & AUX. MOUNT O-RING INCLUDED)
Brand	Danfoss
CODE TITLE	PRESSURE COMPENSATED/PRESSURE FLOW COMPENSATED OPEN CIRCUIT PISTON PUMP
Control special features	NO CONTROL SPECIAL FEATURES
Controller type	PRESSURE & FLOW COMPENSATOR WITH .4375-20 SAE O-RING LOAD SENSE PORT (LEFT SIDE)
Design code	THIRD DESIGN
Diagnostic pressure ports	NO DIAGNOSTIC PRESSURE PORTS
Displacement	49.2 cm3/r [3.00 in3/r]
Drain port size location	1.0625-12 UNF-2B O-RING PORT - TOP
Flow comp rpc setting	17.24-19.99 bar [250-290 lbf/in2]
Front mounting input shaft	2 BOLT B (SAE J744-101-2) WITH 15 TOOTH 16/32 SPLINE (ANSI B92.1-1996 MOD) SHAFT EXT 46 [1.81]
Identification packaging	MARK EATON PRODUCT NUMBER & FULL MODEL CODE ON LABEL / INDIVIDUAL BOX PACKAGING
Input shaft rotation	RIGHT-HAND ROTATION (CW) RIGHT SIDE SUCTION PORT LEFT SIDE PRESSURE PORT
Main ports size location	SIDE PORTS; SUCTION - 2.00 SAE J518 4-BOLT SPLIT FLANGE PORT STANDARD PRESSURE SERIES (CODE 61); PRESSURE - 1.00 SAE J518 4-BOLTSPLIT FLANGE PORT STANDARD PRESSURE SERIES (CODE 61)
Maximum displacement option	STANDARD DISPLACEMENT (AS GIVEN IN CODE TITLE)
Paint	BLUE PRIMER PER SPEC 209-13CD
PRESSURE COMP SETTING	241.3-248.2 bar [3500-3600 lbf/in2]
PUMP SPECIAL FEATURES	NO PUMP SPECIAL FEATURES
Shaft seal	STANDARD POLYACRYLATE SHAFT SEAL
Torque control setting	NO TORQUE CONTROL OR SECONDARY COMPENSATOR

421AK01864C: frequently asked questions

When can 421AK01864C be shipped?

421AK01864C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 421AK01864C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 421AK01864C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 421AK01864C, subject to availability and destination.
