Danfoss 421AK01168C

ADU041R08AB10AC4300000002AC100CD00C

MPN
421AK01168C
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

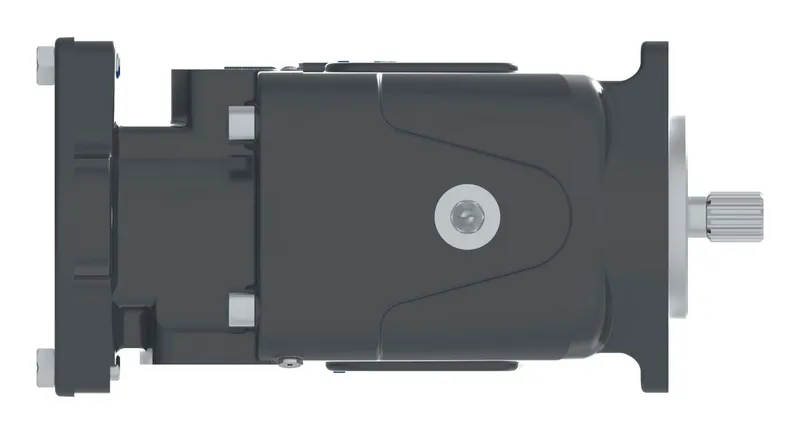

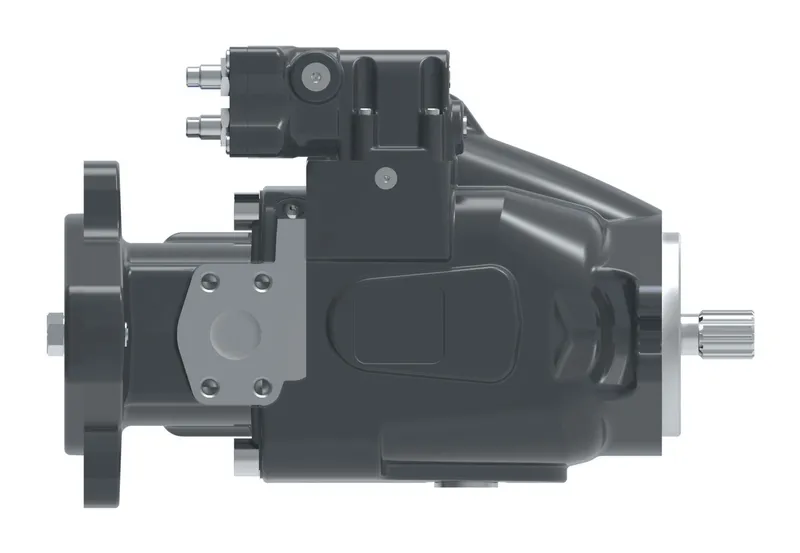

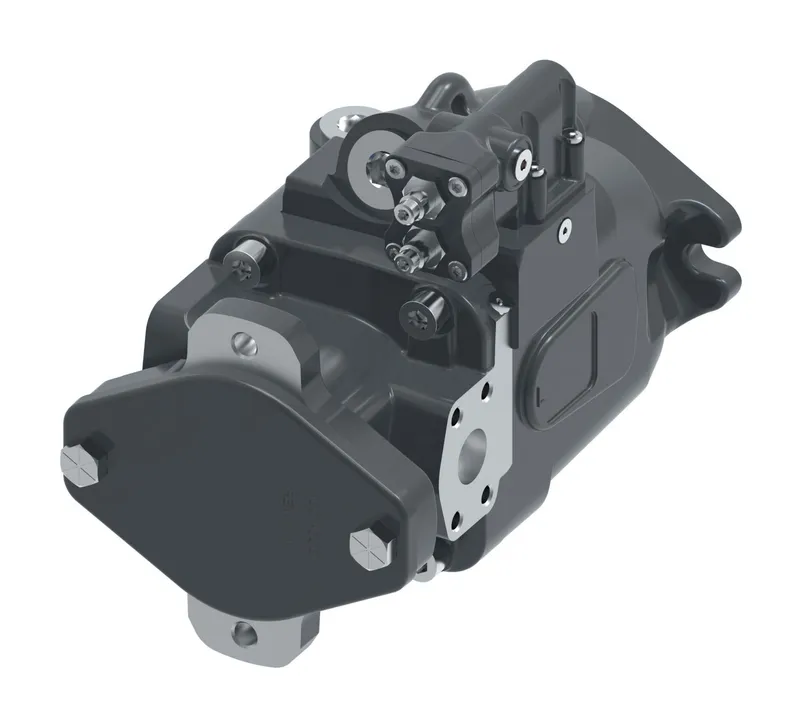

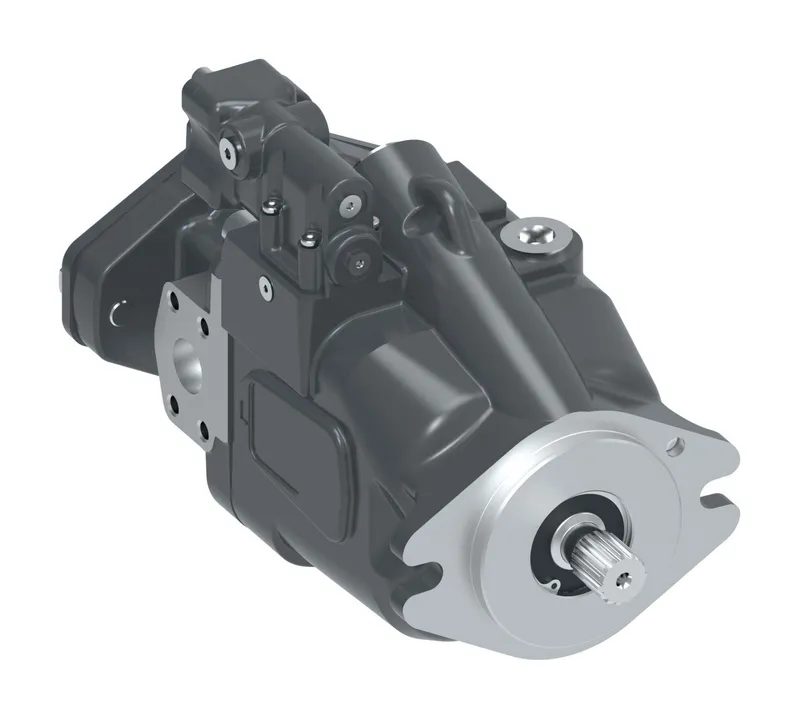

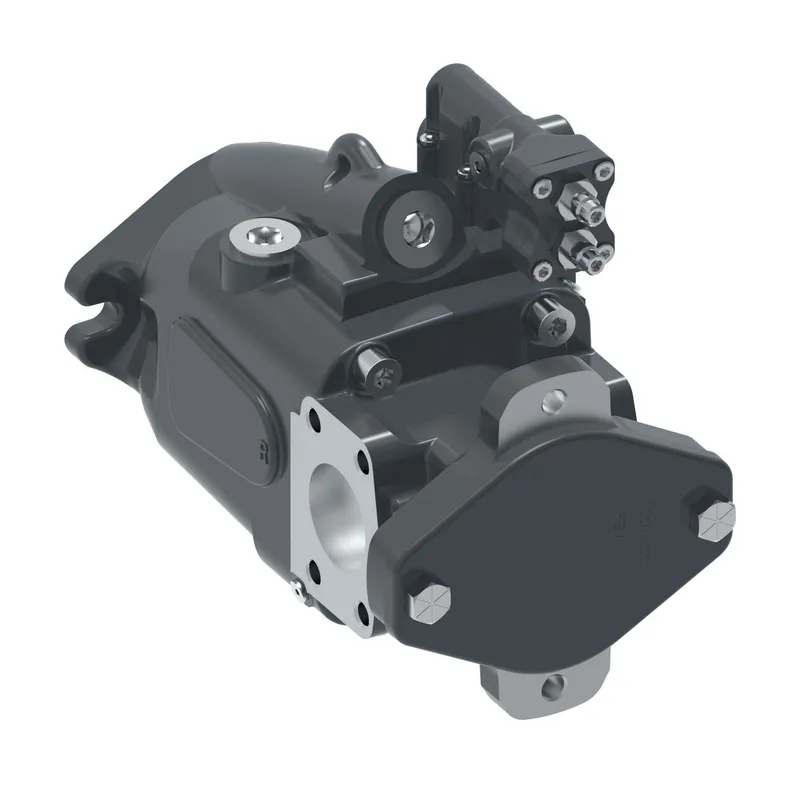

What is the Danfoss 421AK01168C?

Danfoss ADU041R08AB10AC4300000002AC100CD00C, manufacturer part number 421AK01168C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Aux mount output shaftDUAL SAE J744 FLANGE 101-2 (2 BOLT B); ACCEPTS 13T 16/32 SPLINE WITH 41.2 (1.62) EXT (COUPLER & AUX. MOUNT O-RING INCLUDED)
BrandDanfoss
CODE TITLEPRESSURE COMPENSATED/PRESSURE FLOW COMPENSATED OPEN CIRCUIT PISTON PUMP
Control special featuresNO CONTROL SPECIAL FEATURES
Controller typePRESSURE COMPENSATOR
Design codeTHIRD DESIGN
Diagnostic pressure portsNO DIAGNOSTIC PRESSURE PORTS
Displacement41.0 cm3/r [2.50 in3/r]
Drain port size location1.0625-12 UNF-2B O-RING PORT - TOP
Flow comp rpc settingNO FLOW COMPENSATOR SETTING
Front mounting input shaft2 BOLT B (SAE J744-101-2) WITH 15 TOOTH 16/32 SPLINE (ANSI B92.1-1996 MOD) SHAFT EXT 46 [1.81]
Identification packagingMARK EATON PRODUCT NUMBER & FULL MODEL CODE ON LABEL / INDIVIDUAL BOX PACKAGING
Input shaft rotationRIGHT-HAND ROTATION (CW) RIGHT SIDE SUCTION PORT LEFT SIDE PRESSURE PORT
Main ports size locationSIDE PORTS; SUCTION - 2.00 SAE J518 4-BOLT SPLIT FLANGE PORT STANDARD PRESSURE SERIES (CODE 61); PRESSURE - 1.00 SAE J518 4-BOLTSPLIT FLANGE PORT STANDARD PRESSURE SERIES (CODE 61)
Maximum displacement optionEXTERNAL MANUAL STROKE ADJUSTMENT (SET AT MAXIMUM)
PaintBLUE PRIMER PER SPEC 209-13CD
PRESSURE COMP SETTING275.8-282.7 bar [4000-4100 lbf/in2]
PUMP SPECIAL FEATURESNO PUMP SPECIAL FEATURES
Shaft sealSTANDARD POLYACRYLATE SHAFT SEAL
Torque control settingNO TORQUE CONTROL OR SECONDARY COMPENSATOR

421AK01168C: frequently asked questions

When can 421AK01168C be shipped?

421AK01168C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 421AK01168C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 421AK01168C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 421AK01168C, subject to availability and destination.
