ADU049R02AE10AA162000000200100CD00C

Name: ADU049R02AE10AA162000000200100CD00C
Brand: Danfoss (Drives)
SKU: 421AK00294C

MPN: 421AK00294C · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	X20 series piston pumps
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 421AK00294C be shipped?

421AK00294C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 421AK00294C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 421AK00294C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 421AK00294C, subject to availability and destination.

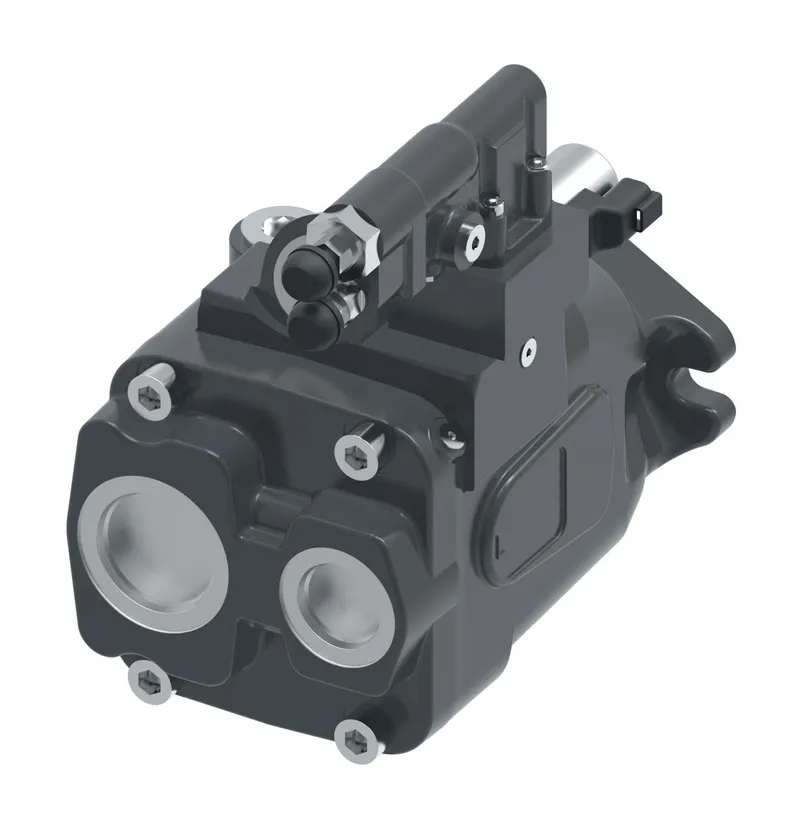

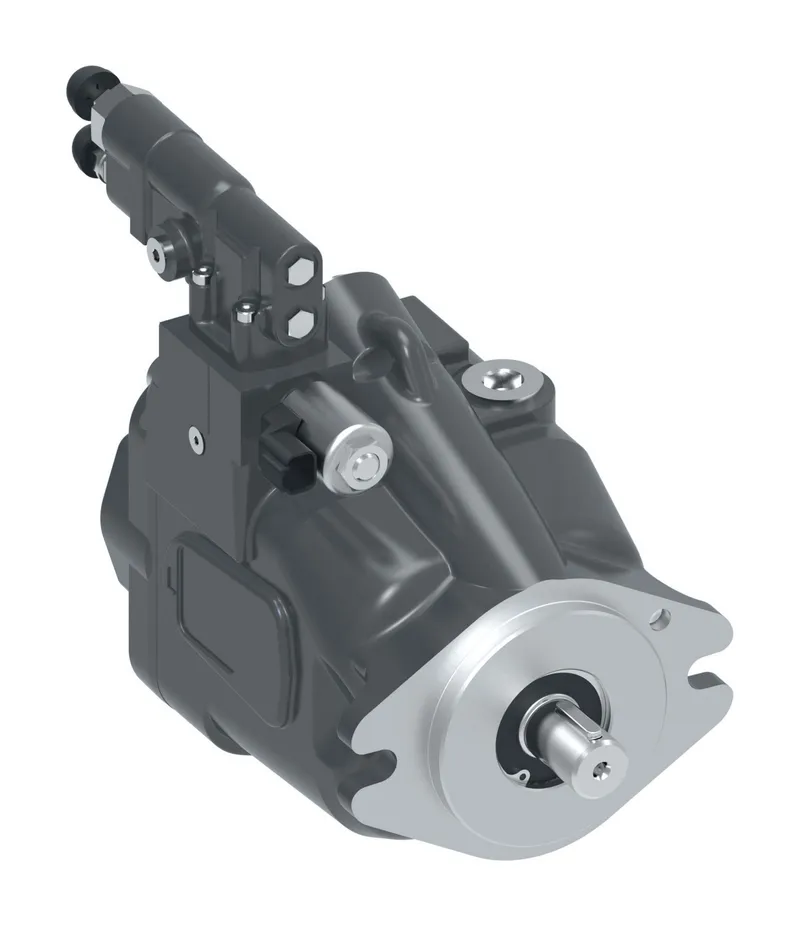

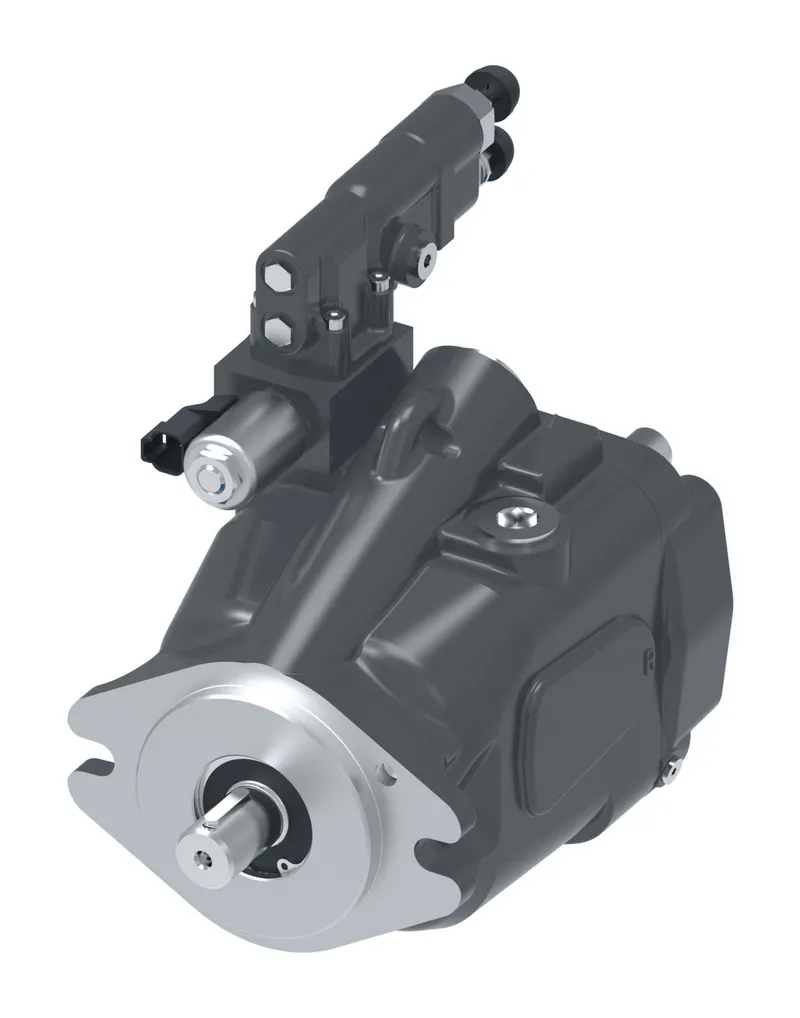

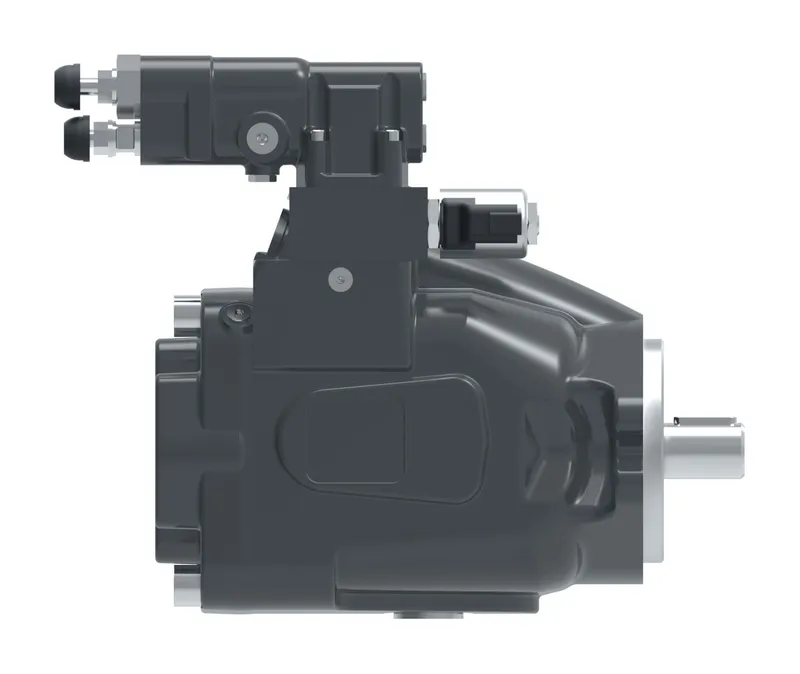

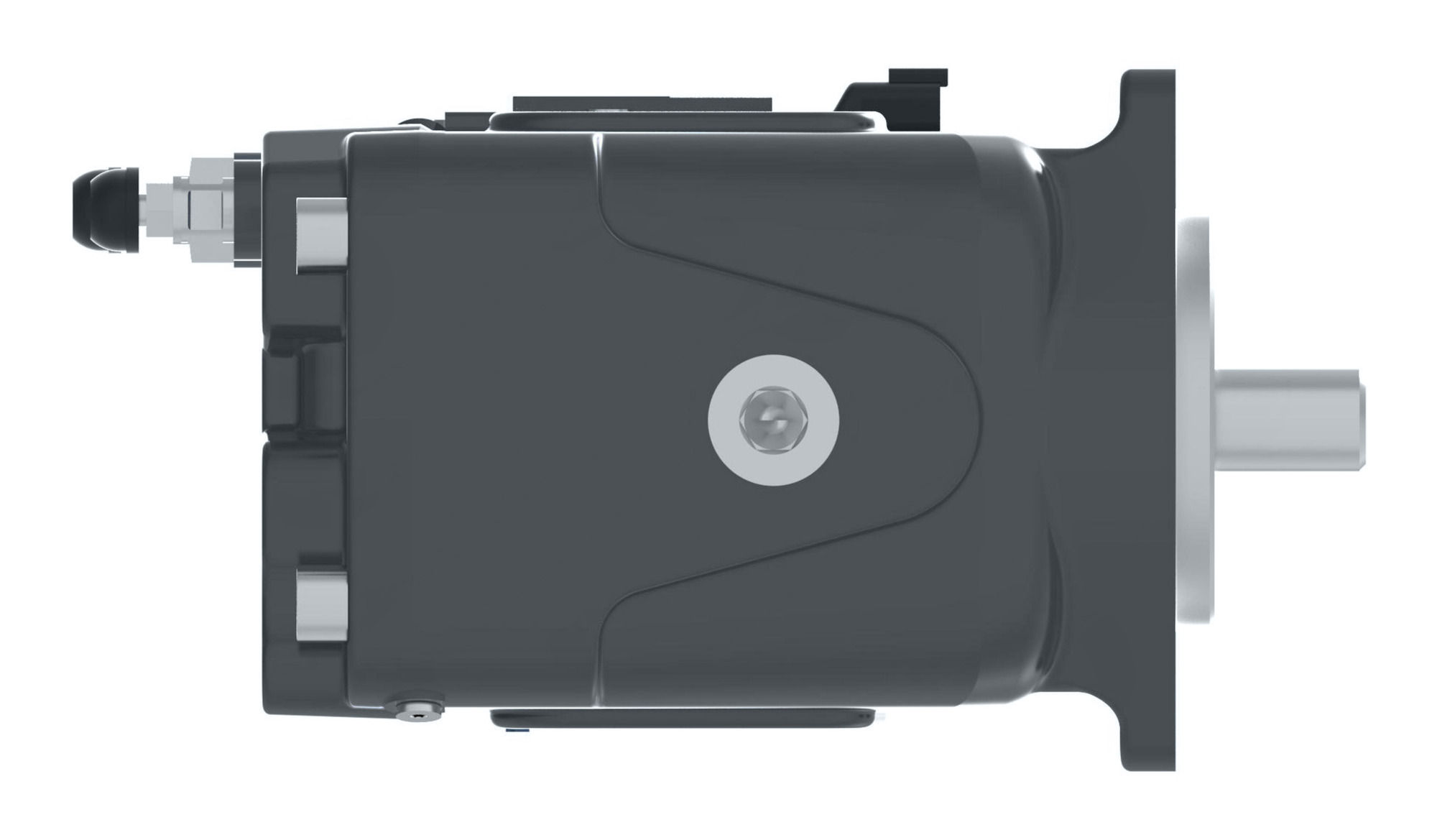

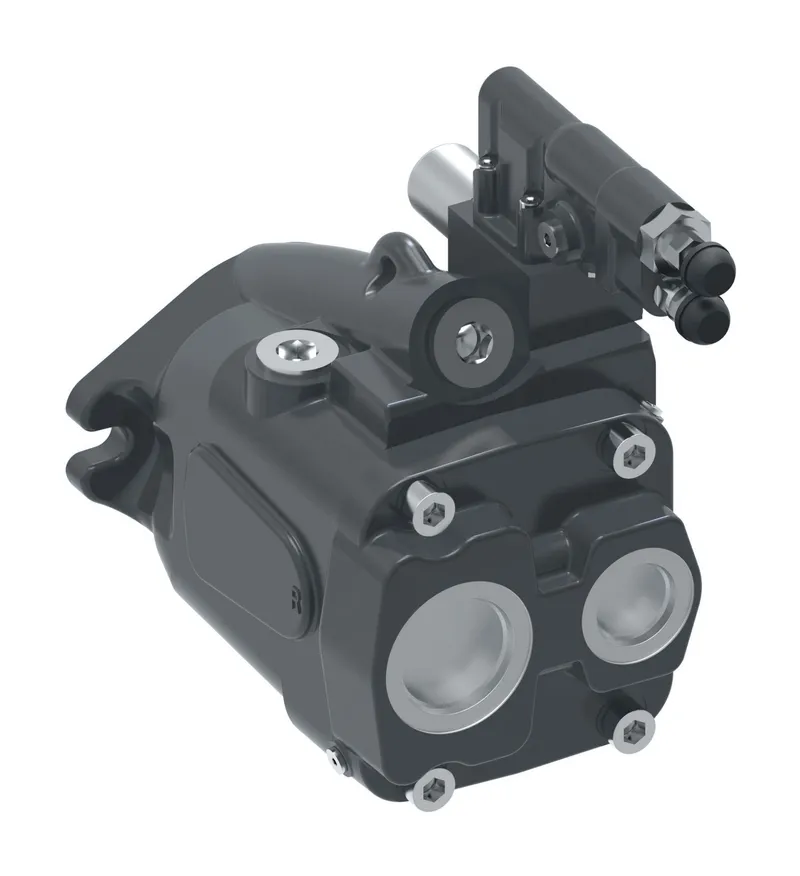

Danfoss ADU049R02AE10AA162000000200100CD00C, manufacturer part number 421AK00294C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Aux mount output shaft	NO AUXILIARY MOUNTING FEATURES
Brand	Danfoss
CODE TITLE	PRESSURE COMPENSATED/PRESSURE FLOW COMPENSATED OPEN CIRCUIT PISTON PUMP
Control special features	NO CONTROL SPECIAL FEATURES
Controller type	PRESSURE & FLOW COMPENSATOR WITH .4375-20 SAE O-RING LOAD SENSE PORT (LEFT SIDE)
Design code	THIRD DESIGN
Diagnostic pressure ports	NO DIAGNOSTIC PRESSURE PORTS
Displacement	49.2 cm3/r [3.00 in3/r]
Drain port size location	1.0625-12 UNF-2B O-RING PORT - TOP
Flow comp rpc setting	17.24-19.99 bar [250-290 lbf/in2]
Front mounting input shaft	2 BOLT B (SAE J744-101-2) WITH 25.4 [1.00] DIA STRAIGHT KEY SHAFT (SAE J744-25-1) (KEY INCLUDED)
Identification packaging	MARK EATON PRODUCT NUMBER & FULL MODEL CODE ON LABEL / INDIVIDUAL BOX PACKAGING
Input shaft rotation	RIGHT-HAND ROTATION (CW) RIGHT SIDE SUCTION PORT LEFT SIDE PRESSURE PORT
Main ports size location	REAR PORTS; SUCTION - 1.875-12 UN-2B SAE O-RING PORT; PRESSURE - 1.3125-12 UN-2B SAE O-RING PORT (49.2 [3.00] & 41.0 [2.50] &62.3 [3.80] DISPLACEMENTS ONLY)
Maximum displacement option	EXTERNAL MANUAL STROKE ADJUSTMENT (SET AT MAXIMUM)
Paint	BLUE PRIMER PER SPEC 209-13CD
PRESSURE COMP SETTING	155.1-162.0 bar [2250-2350 lbf/in2]
PUMP SPECIAL FEATURES	NO PUMP SPECIAL FEATURES
Shaft seal	STANDARD POLYACRYLATE SHAFT SEAL
Torque control setting	NO TORQUE CONTROL OR SECONDARY COMPENSATOR
