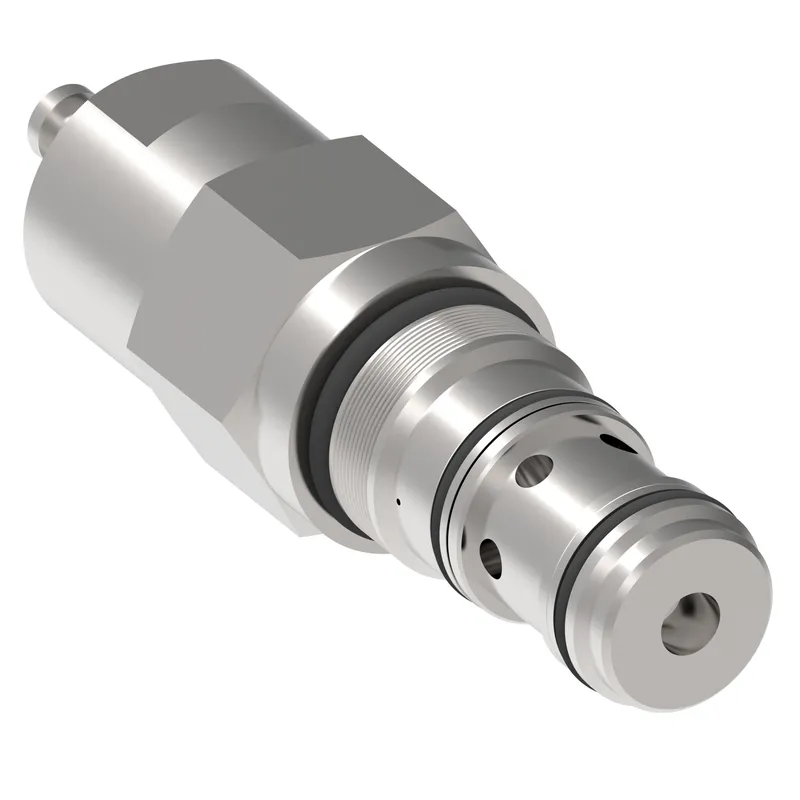

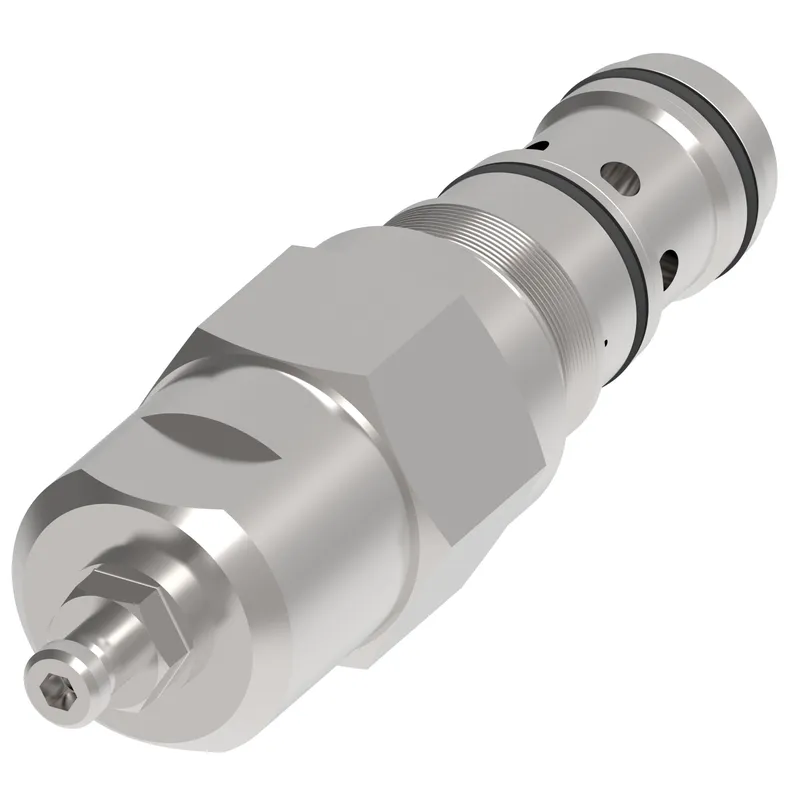

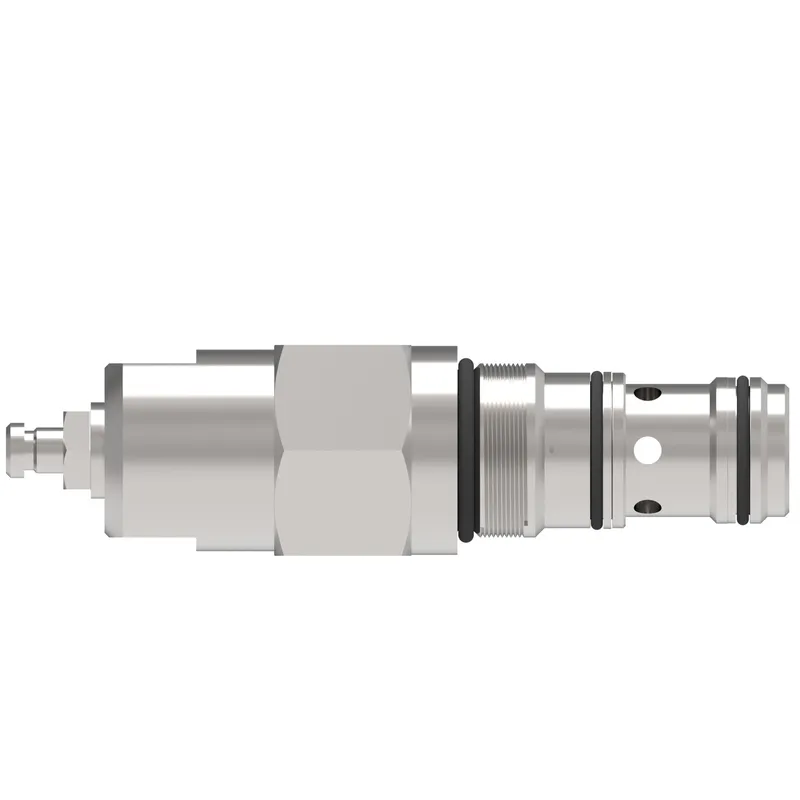

1CER140-F-30-S-4-220 OCV CART 4-1, 1CER140-F-30-S-4-220
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Cartridge valves |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 406AA00250A be shipped?
406AA00250A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 406AA00250A in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 406AA00250A and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 406AA00250A, subject to availability and destination.
Danfoss 1CER140-F-30-S-4-220 OCV CART 4-1, 1CER140-F-30-S-4-220, manufacturer part number 406AA00250A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Adjustment type | Screw |
| Brand | Vickers by Danfoss |
| Cavity | A20081 |
| Flow rate GPM | 37.00 |
| Flow rate LPM | 140.000 |
| Fluid compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Overcenter Valve |
| Housing | No |
| Installation type | Screw-in Cartridge |
| Leakage | 5 dpm |
| Max load induced p BAR | 340.000 |
| Max load induced p PSI | 4930.000 |
| Max pilot adjust p BAR | 60.000 |
| Max pilot adjust p PSI | 870.000 |
| Max relief press BAR | 420.000 |
| Max relief press PSI | 6100.000 |
| Min pilot adjust p BAR | 49.000 |
| Min pilot adjust p PSI | 712.000 |
| Model Code 1 | 1CER140-F-30-S-4-220 |
| Number of housing ports | 3 |
| Number of valve ports | 3 |
| Operating temperature | -30 C to 90 C (-22 to 194 F) |
| Operation | Pilot operated |
| Pilot ratio | 4:1 |
| Port size | None |
| Port type | Cartridge Only |
| Pressure rating BAR | 420.000 |
| Pressure rating PSI | 6090.000 |
| Product height in | 1.811 |
| Product height mm | 45.999 |
| Product length in | 6.690 |
| Product length mm | 169.926 |
| Product width in | 1.811 |
| Product width mm | 45.999 mm |
| Recommended filtration level | 18/16/13 |
| Seal type | Buna-N |
| Special features | None |
| Style | Part bal pil assist rv w check |
| Valve torque into cavity | 150 Nm |
