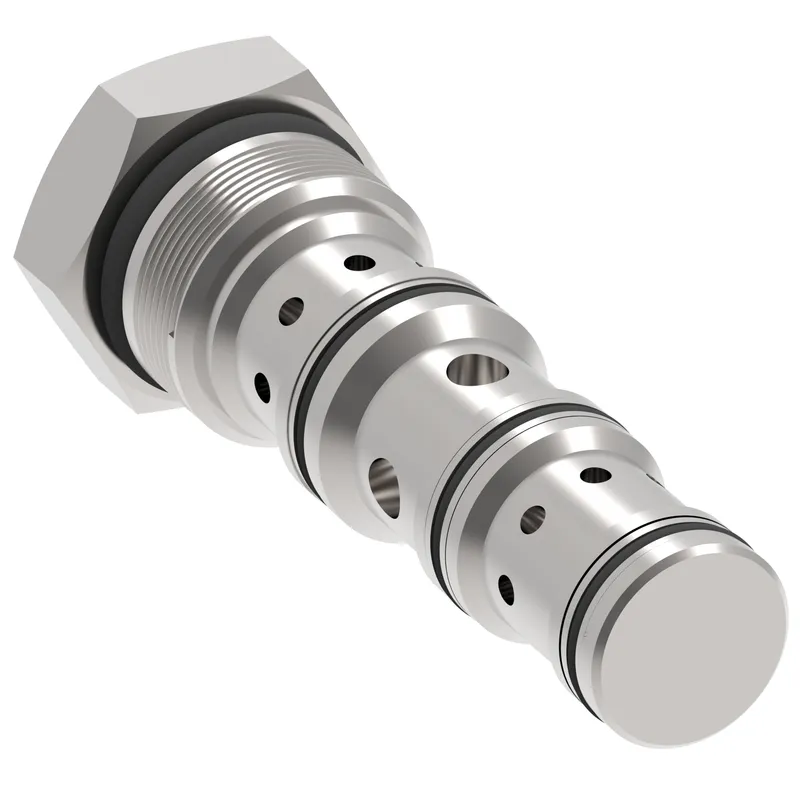

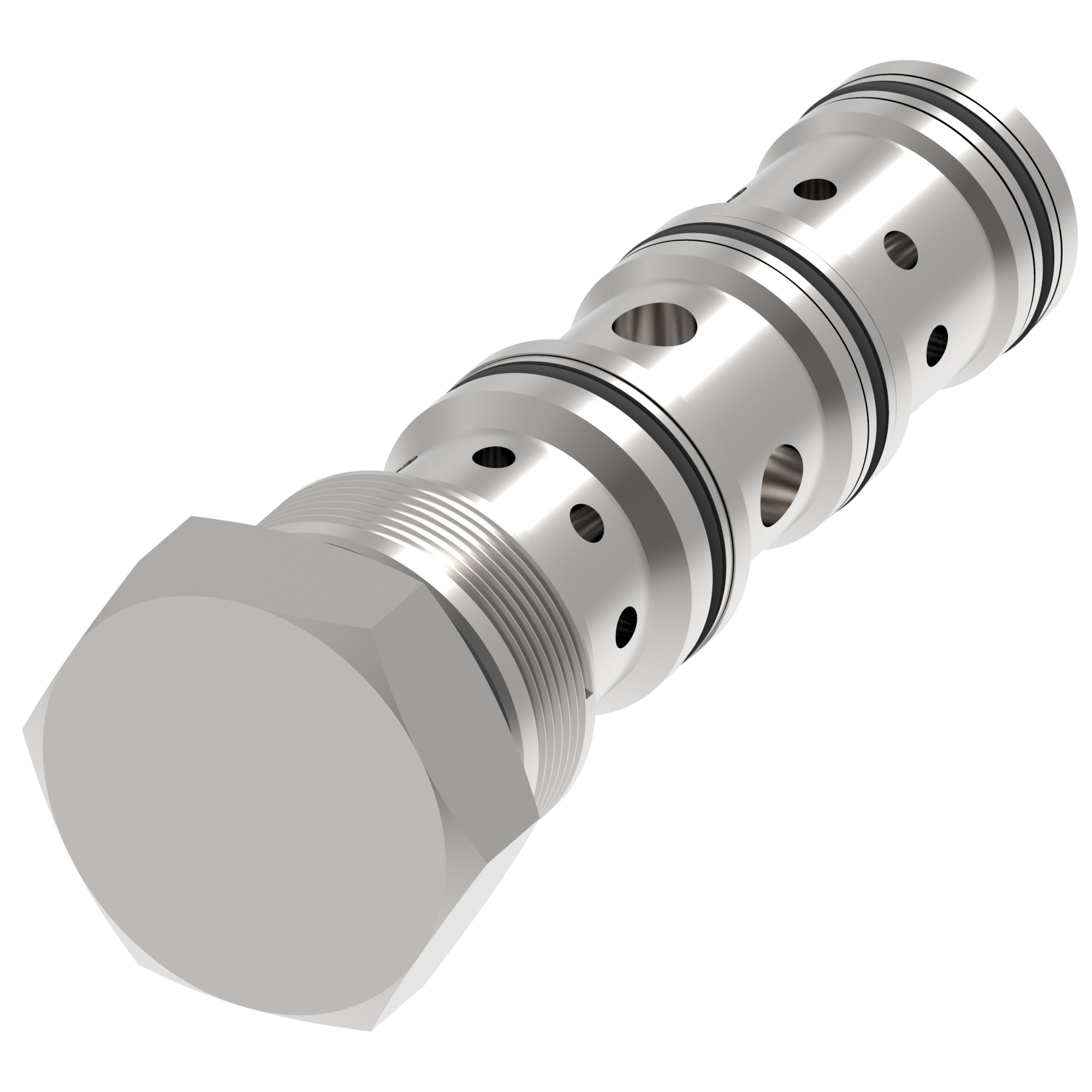

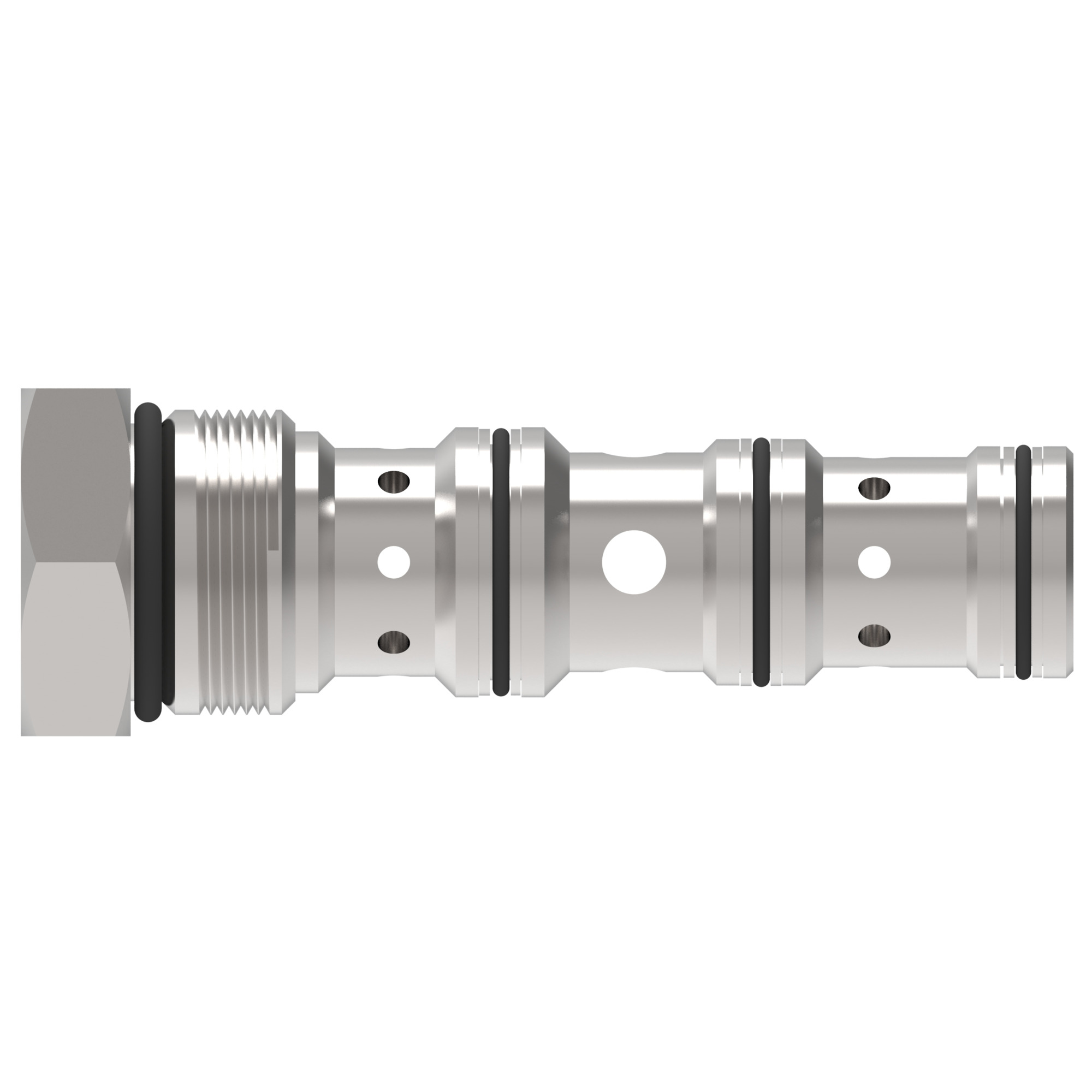

2CFD150-100S FLOW DIVIDER/COMBINER, 2CFD150-100-S
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Cartridge valves |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 405AA00010A be shipped?
405AA00010A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 405AA00010A in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 405AA00010A and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 405AA00010A, subject to availability and destination.
Danfoss 2CFD150-100S FLOW DIVIDER/COMBINER, 2CFD150-100-S, manufacturer part number 405AA00010A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Adjustment type | No Operator |
| Brand | Danfoss |
| Factory set flow rate GPM | 17.560 |
| Factory set flow rate LPM | 66.50 |
| Flow rate GPM | 39.620 |
| Flow rate LPM | 150.00 |
| Fluid compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Flow Divider Combiner |
| Housing | No |
| Installation type | Screw-in Cartridge |
| Leakage | Standard |
| Maximum flow rate GPM | 26.410 |
| Maximum flow rate LPM | 100.00 |
| Minimum flow rate GPM | 8.710 |
| Minimum flow rate LPM | 33.00 |
| Model Code 1 | 2CFD150-100-S |
| Number of housing ports | 4 |
| Number of valve ports | 4 |
| Operating temperature | -30 C to 90 C (-22 to 194 F) |
| Port type | Cartridge Only |
| Pressure rating BAR | 350.00 |
| Pressure rating PSI | 5076.32 |
| Product height in | 1.500 |
| Product height mm | 38.100 |
| Product length in | 4.520 |
| Product length mm | 114.808 |
| Product width in | 1.500 |
| Product width mm | 38.100 mm |
| Rec filtration level | 18/16/13 |
| Seal type | Buna-N |
| Special features | None |
| Spool seal | No |
| Style | Spool |
