1HSH701-1.0S HOT OIL SHUTTLE, 1HSH701-1.0-S
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Cartridge valves |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 404AA00001A be shipped?
404AA00001A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 404AA00001A in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 404AA00001A and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 404AA00001A, subject to availability and destination.

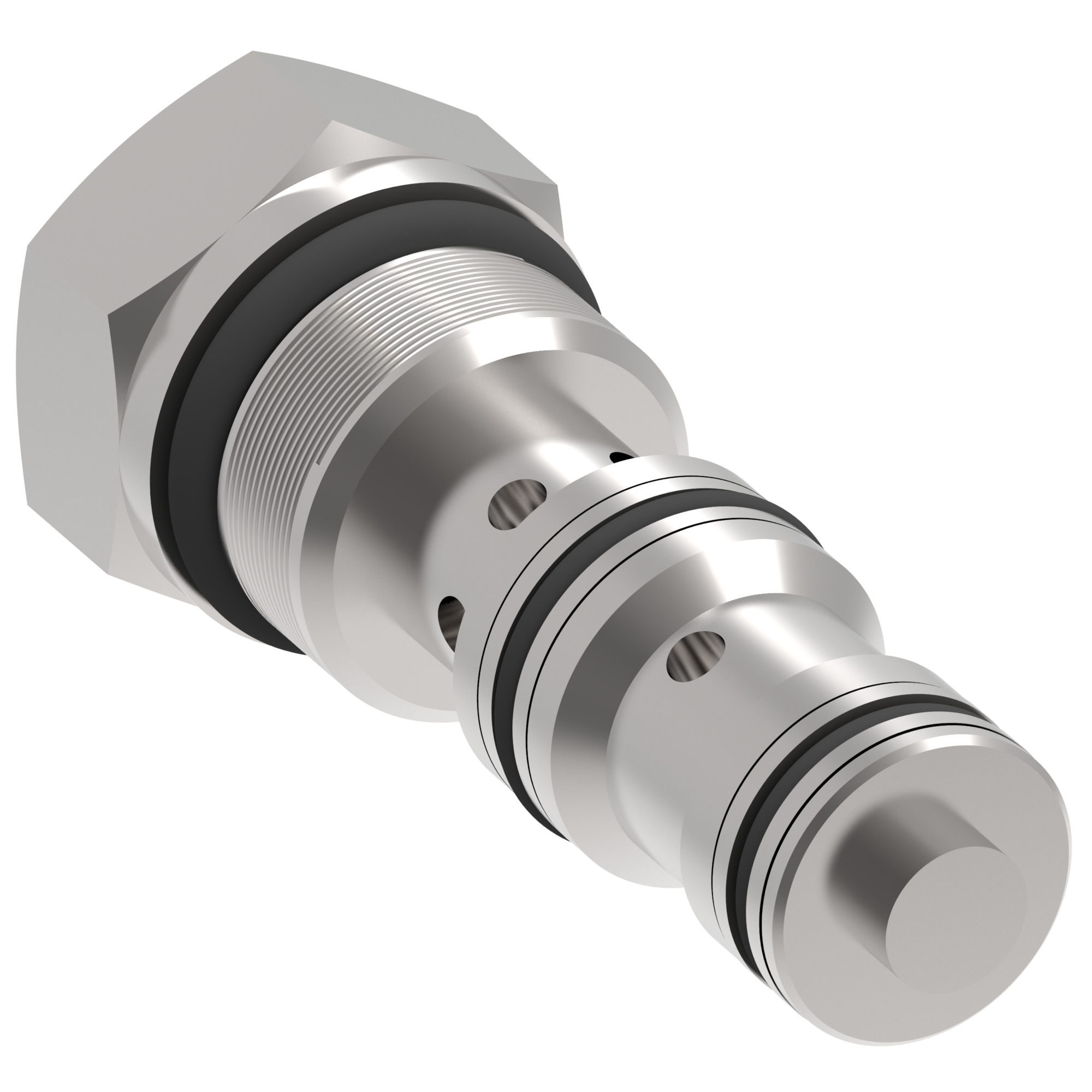

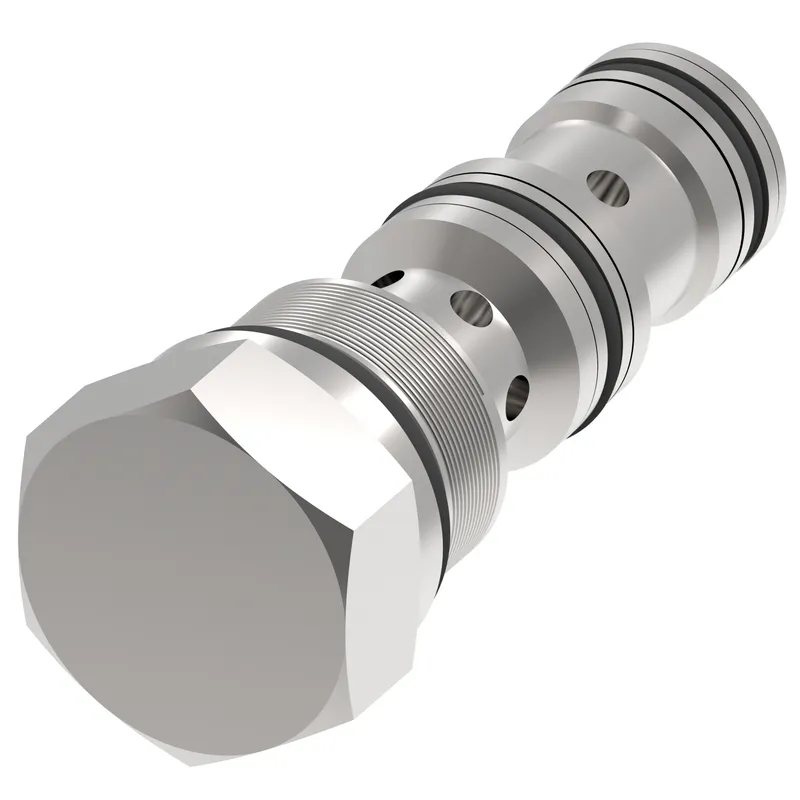

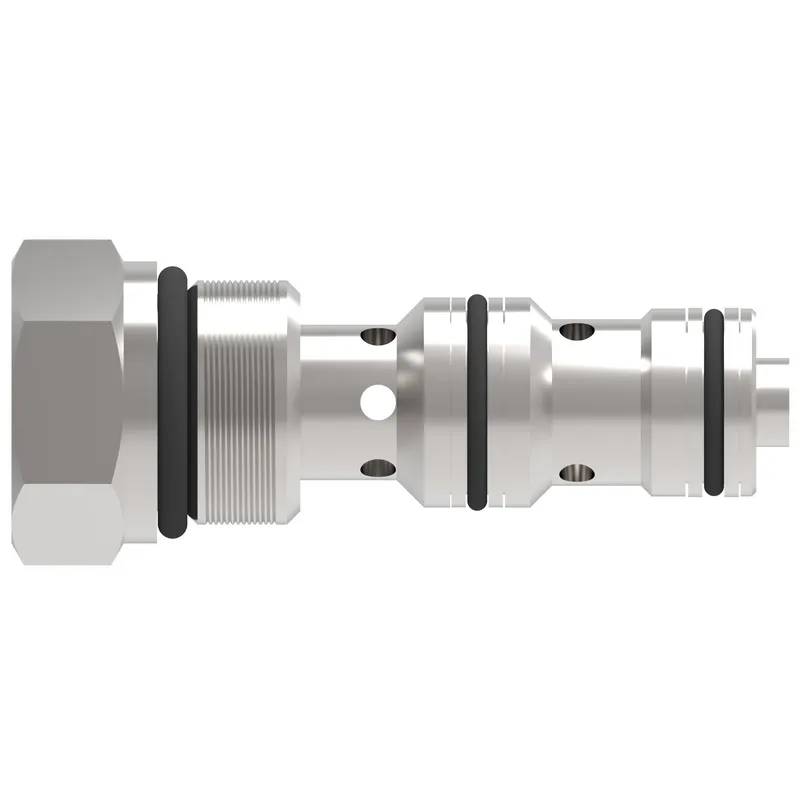

Danfoss 1HSH701-1.0S HOT OIL SHUTTLE, 1HSH701-1.0-S, manufacturer part number 404AA00001A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Brand | Danfoss |
| Cavity | A21145 |
| Flow rate LPM | 80.000 |
| Fluid compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Shuttle Valve |
| Housing | No |
| Installation type | Screw-in Cartridge |
| Model Code 1 | 1HSH701-1.0-S |
| Number of housing ports | 4 |
| Number of valve ports | 4 |
| Operating temperature | -20 C to 90 C (-4 to194 F) |
| Pilot piston seal | No |
| Port type | Cartridge Only |
| Pressure rating BAR | 420.00 |
| Product height in | 1.250 |
| Product height mm | 31.750 |
| Product length in | 4.600 |
| Product length mm | 116.840 |
| Product width in | 1.250 |
| Product width mm | 31.750 mm |
| Proposition 65 | Cancer and Reproductive Harm |
| Recommended filtration level | 18/13 |
| Seal type | Buna-N |
| Special features | None |
| Style | Ball |
| Valve torque into cavity | 67 Nm |
