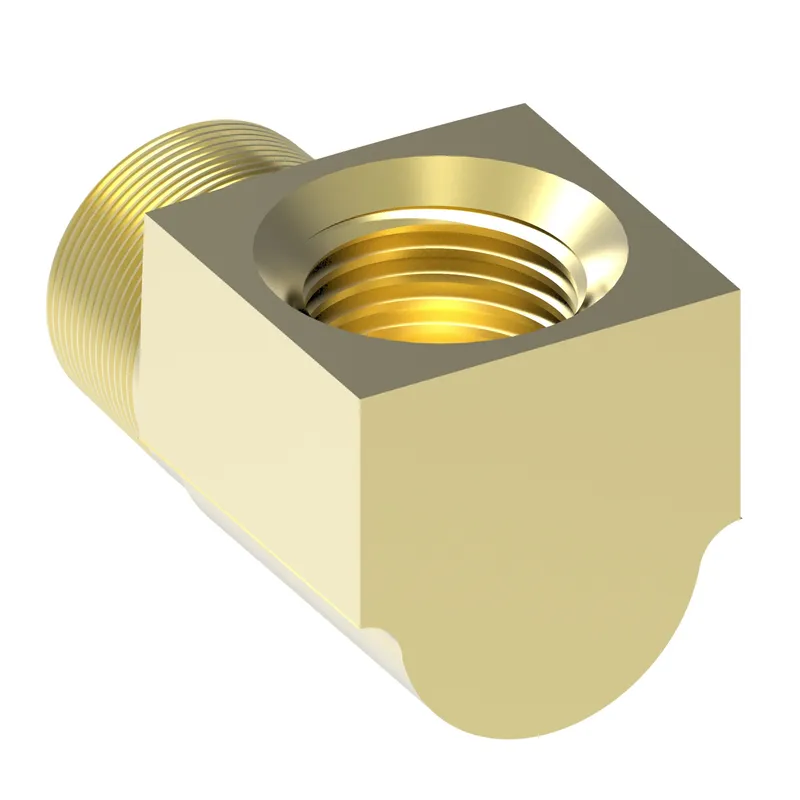

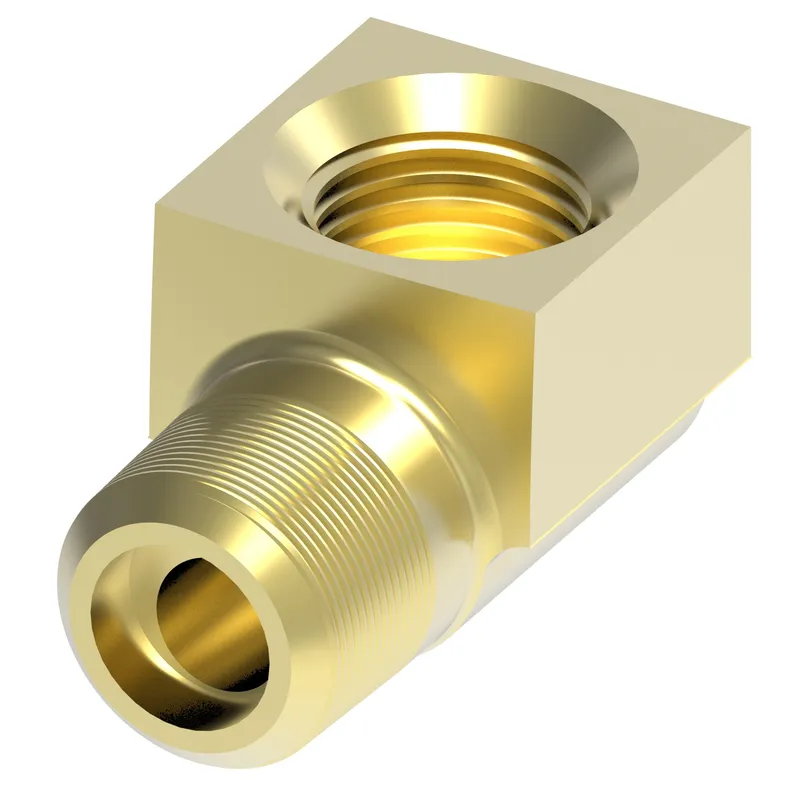

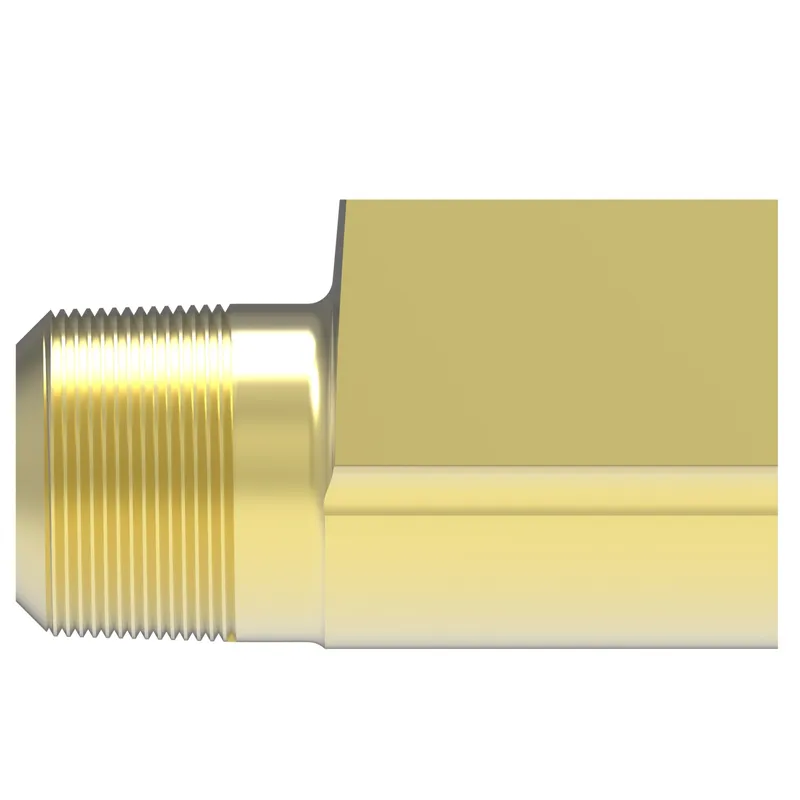

Danfoss 402X5Z

Adapter Brass Inverted WITH SEALANT

MPN: 402X5Z
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 402X5Z?

Danfoss Adapter Brass Inverted WITH SEALANT, manufacturer part number 402X5Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	725975718292
Angle shape	90 Degree
Brand	Danfoss
Drop dimension IN	0.690
Drop dimension MM	17.50
End Type 1	Male pipe (NPTF)
Hex size 1 IN	0.590
Hex size 1 MM	15.000
Item type	Adapter-elbow
Product material	Brass
Thread sealant	No
Thread size 2	1/2-20 UNF
Tube outside diameter 1 IN	0.250
Tube outside diameter 1 MM	6.4
Tube outside diameter 2 IN	0.500
Tube outside diameter 2 MM	12.7
Working pressure bar	138.0
Working pressure psi	2000
Working temp max C	121
Working temp max F	250
Working temp min C	-54
Working temp min F	-65

402X5Z: frequently asked questions

When can 402X5Z be shipped?

402X5Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 402X5Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 402X5Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 402X5Z, subject to availability and destination.
