Danfoss 401AA00077A

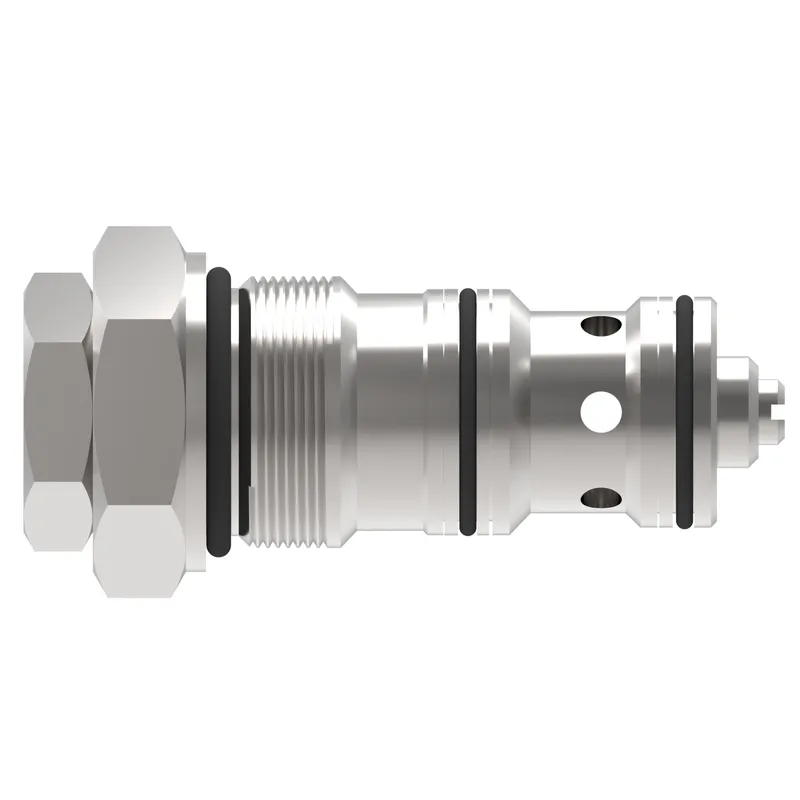

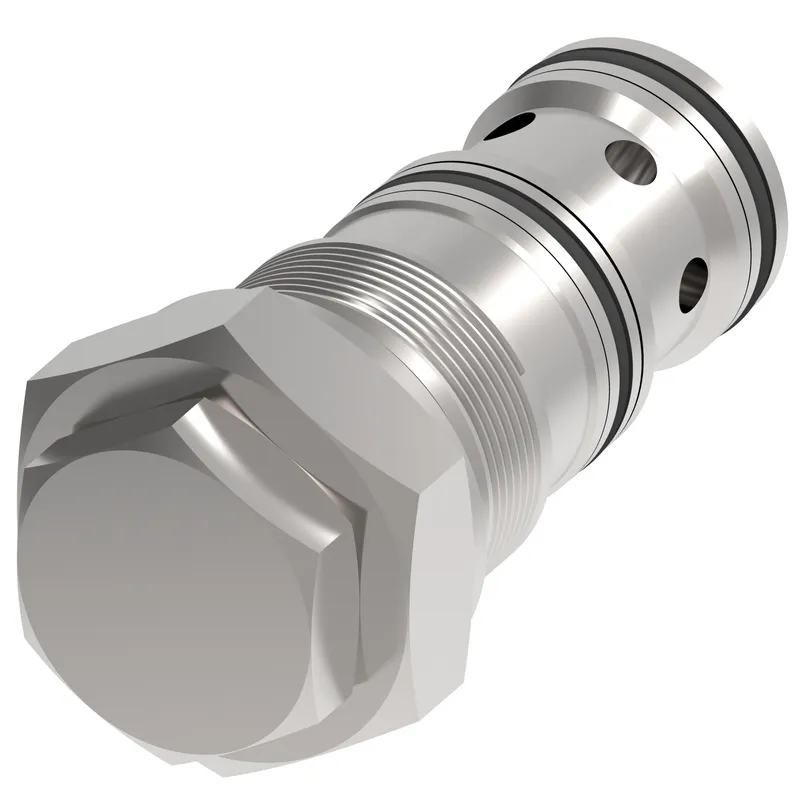

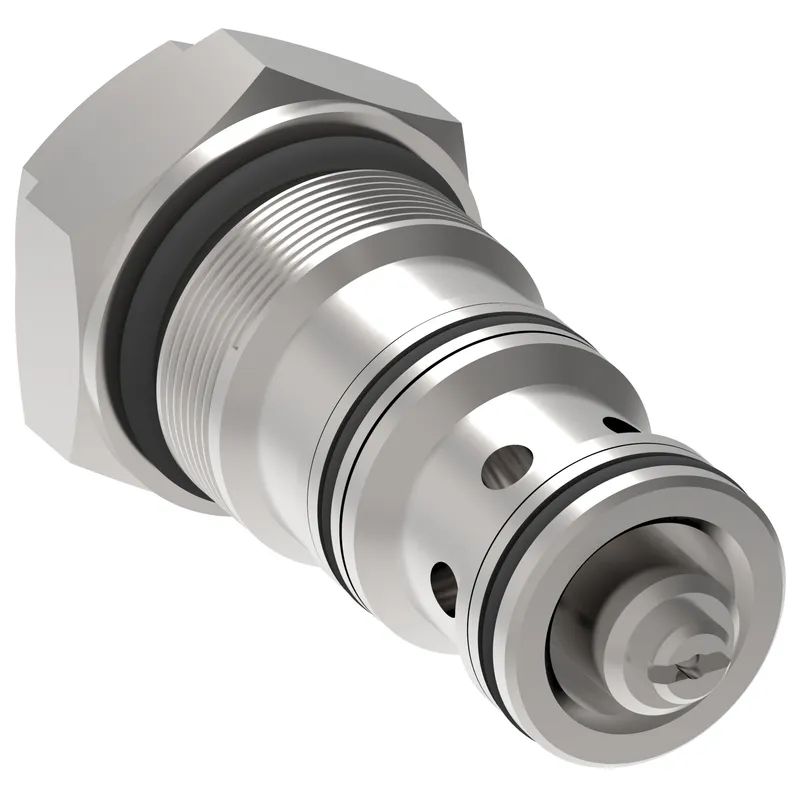

4CKD90P3 CHECK VALVE PILOT OP 4:1, 4CKD90-P-3

MPN: 401AA00077A
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 401AA00077A?

Danfoss 4CKD90P3 CHECK VALVE PILOT OP 4:1, 4CKD90-P-3, manufacturer part number 401AA00077A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Danfoss
Cavity	A12336
Flow rate LPM	90.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Pilot Operated Check Valve
Housing	No
Installation type	Screw-in Cartridge
Leakage	0.3 cc/min
Model Code 1	4CKD90-P-3
Number of housing ports	3
Number of valve ports	3
Operating temperature	-20 C to 90 C (-4 to194 F)
Operation	Pilot operated
Pilot piston seal	Yes
Pilot ratio	25:1
Port type	Cartridge Only
Pressure rating BAR	350.00
Product height in	1.259
Product height mm	31.979
Product length in	3.210
Product length mm	81.534
Product width in	1.259
Product width mm	31.979 mm
Recommended filtration level	18/13
Seal type	Buna-N
Special features	None
Style	Poppet
