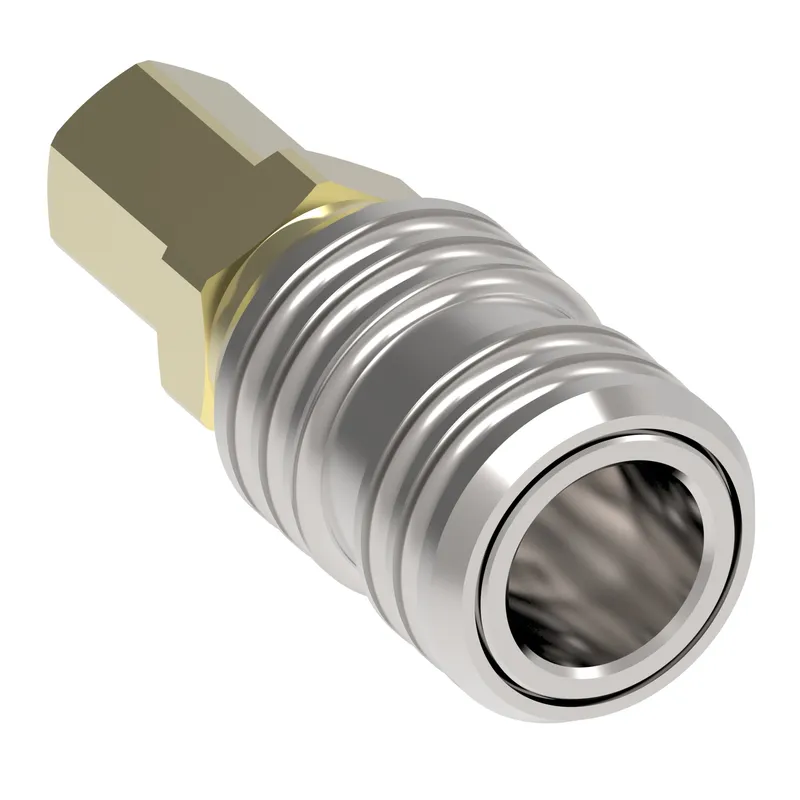

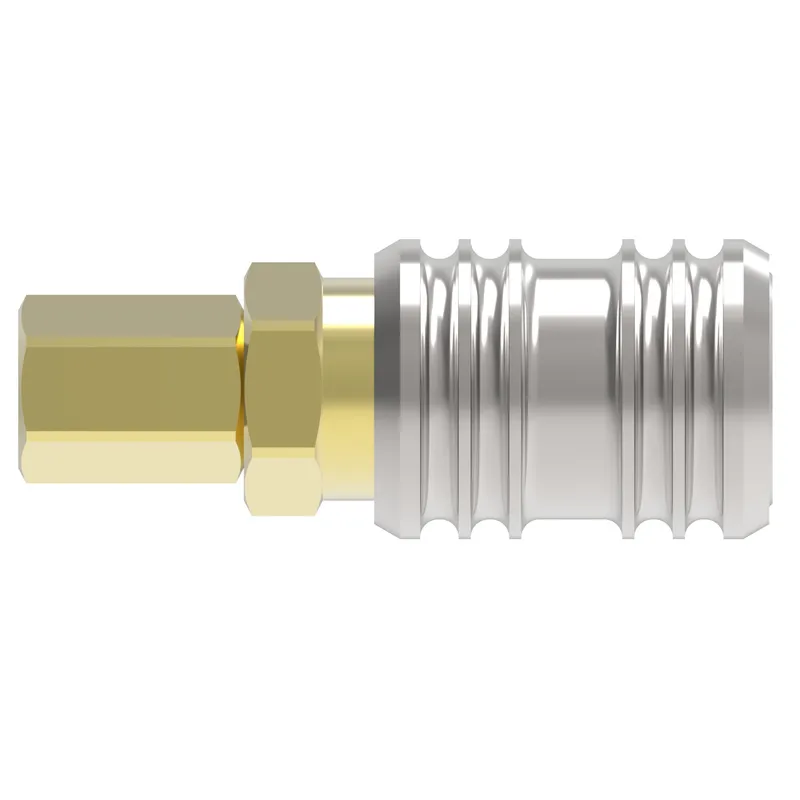

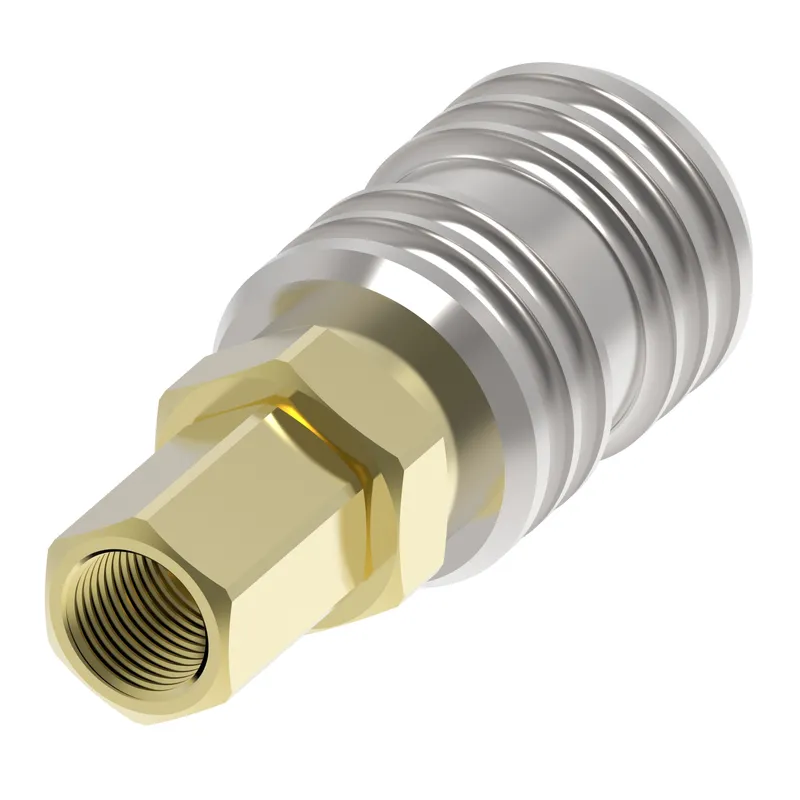

Danfoss 400

COUPLING, ,F,3/8,B,-4NPT

MPN: 400
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 400?

Danfoss COUPLING,400,F,3/8,B,-4NPT, manufacturer part number 400. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146102027
Angle shape	Straight
Body size	3/8
Brand	Danfoss
Burst pressure min bar	276
Burst pressure min psi	4000
Connection style	Manual connect
End size 1	-4
End size 2	-4
End type 1	Female Push to Connect
End type 2	Female pipe (NPTF)
Finish plating	Nickel
Flow rate GPM	336.00
Flow rate LPM	1271.90
Fluid compatibility	Compressed air, Gases and liquids
Hex size 1 IN	0.880
Hex size 1 MM	22.352
Item type	Female half
Latch type	Push/pull
Product height in	1.130
Product height mm	28.702
Product length in	2.100
Product length mm	53.340
Product material	Brass
Product width in	1.130
Product width mm	28.702 mm
Safety locking mechanism	Sleeve lock
Seal material	Nitrile (NBR)
Sub brand	Hansen
Thread size 1	1/4-18 NPT
Valve type	2 way
Working pressure max psi	1000
Working pressure max BAR	69
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40

400: frequently asked questions

When can 400 be shipped?

400 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 400 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 400 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 400, subject to availability and destination.
