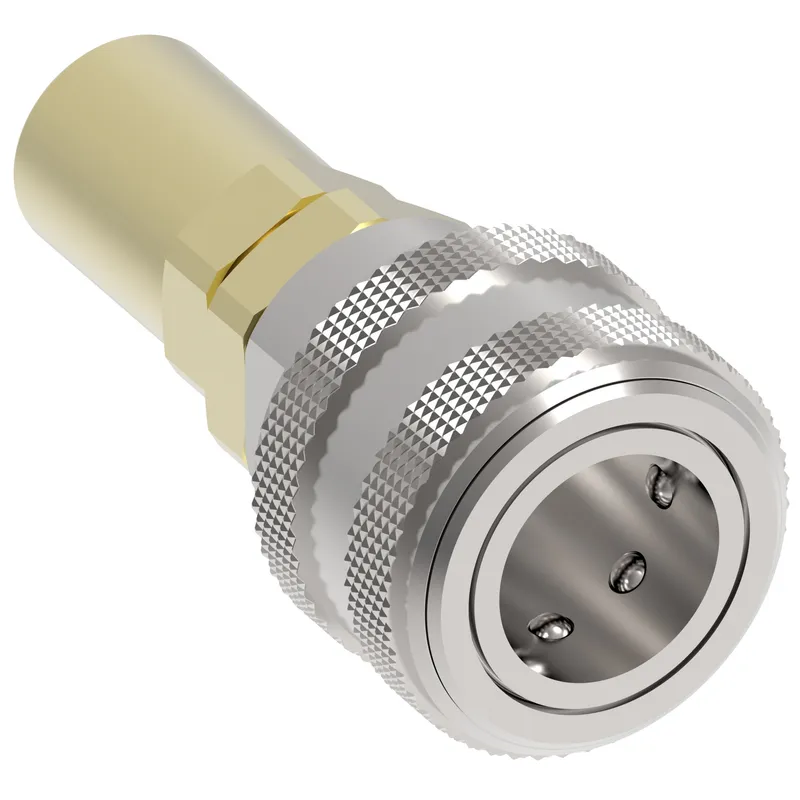

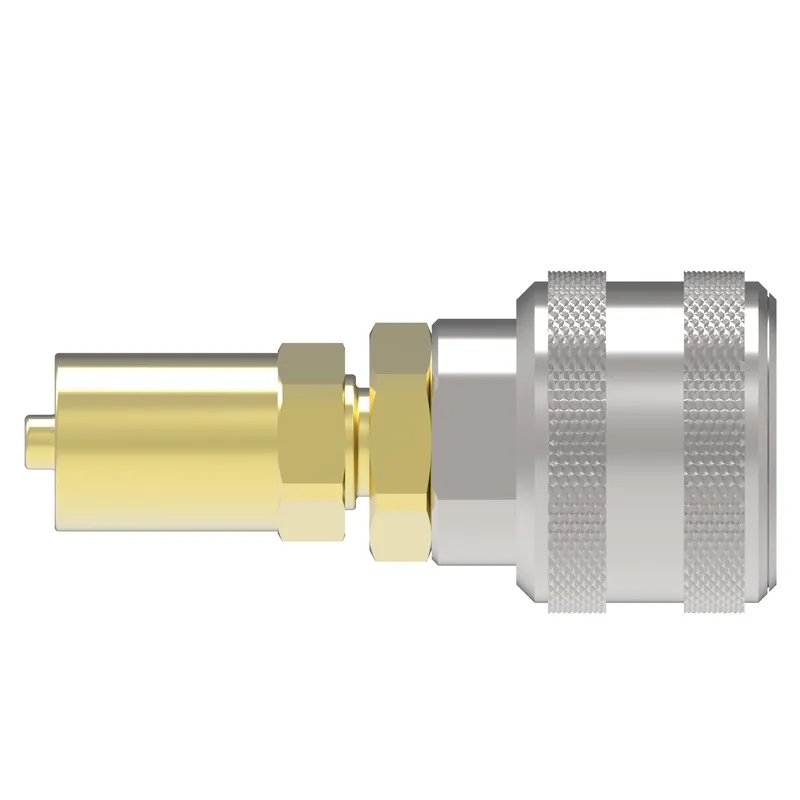

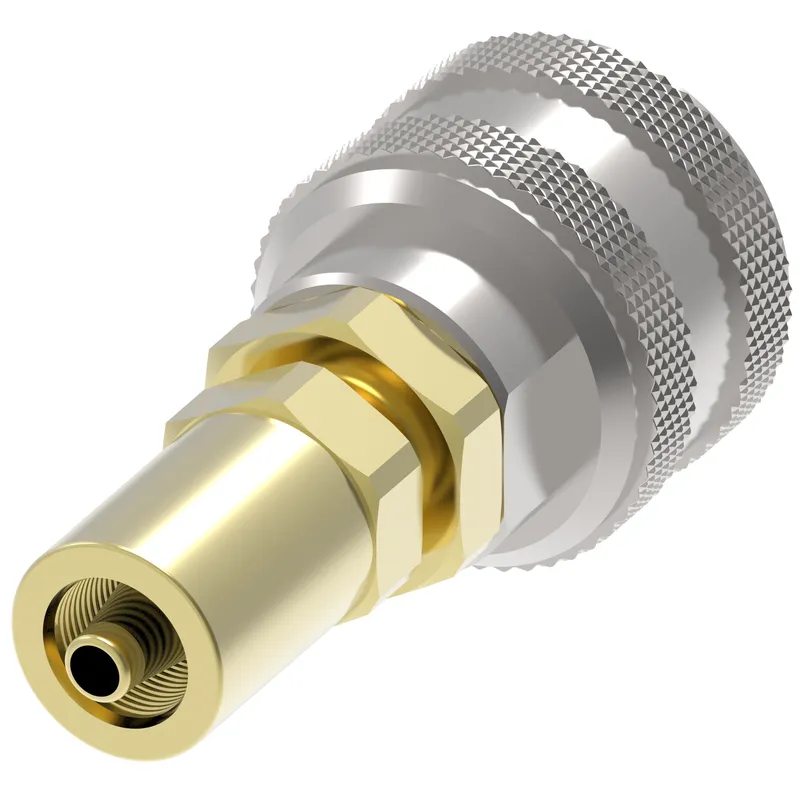

Danfoss 3SB5

Cplng, 3000 SERIES FEMALE, BRASS

MPN: 3SB5
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 3SB5?

Danfoss Cplng, 3000 SERIES FEMALE, BRASS, manufacturer part number 3SB5. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146166340
Angle shape	Straight
Body size	1/4
Brand	Danfoss
Burst pressure min bar	552
Burst pressure min psi	8000
Connection style	Manual connect
Flow rate GPM	180.00
Flow rate LPM	681.37
Fluid compatibility	Air, Gases and liquids
Hex size 1 IN	0.690
Hex size 1 MM	17.526
Item type	Female half
Latch type	Push/pull
Product length in	2.720
Product material	Brass
Seal material	Nitrile (NBR)
Sub brand	Hansen
Valve type	2 way
Working pressure max psi	2000
Working pressure max BAR	138
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
