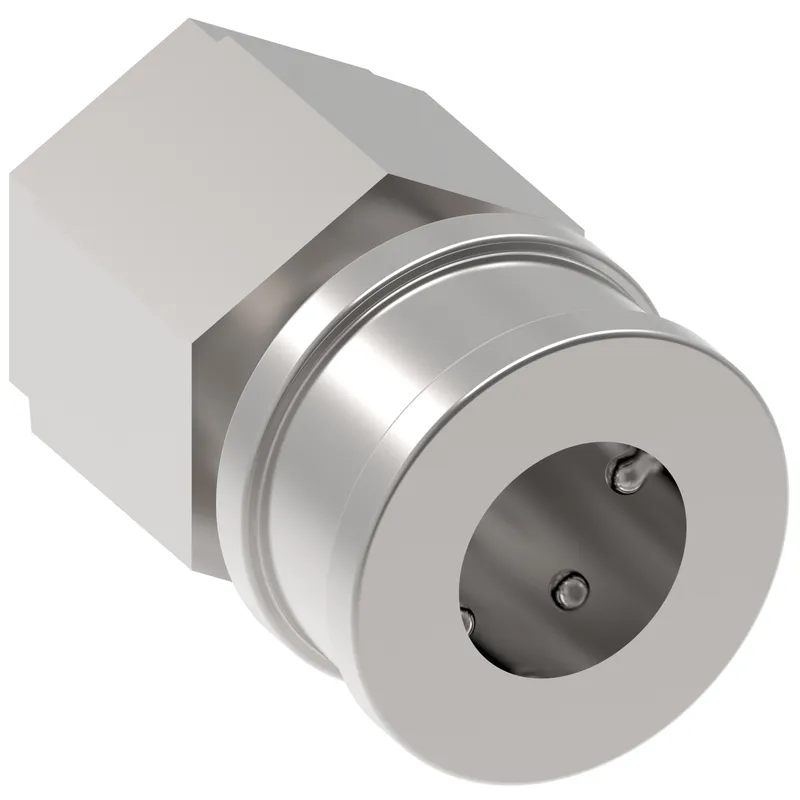

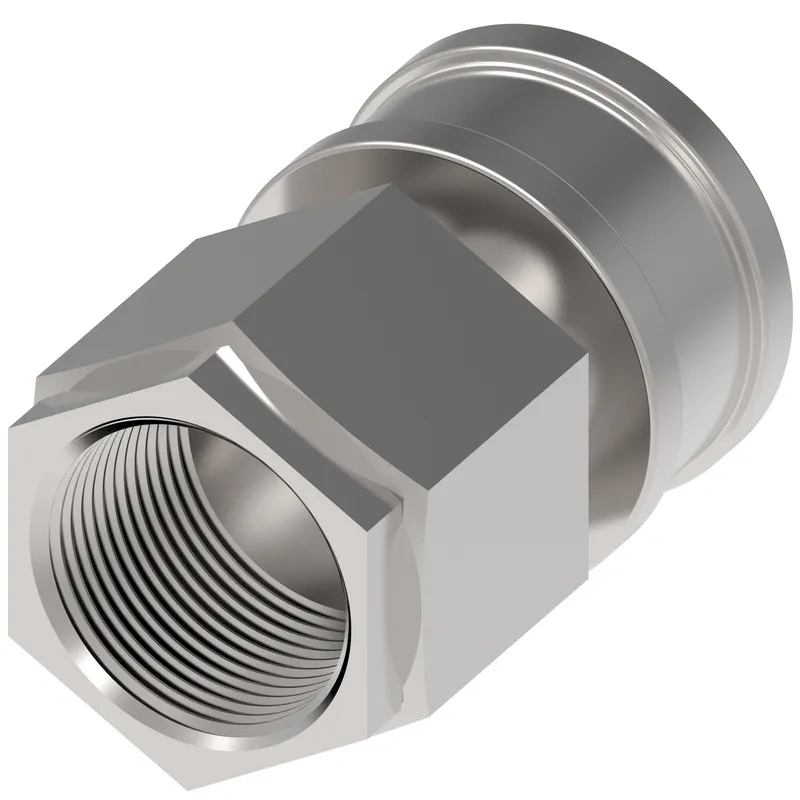

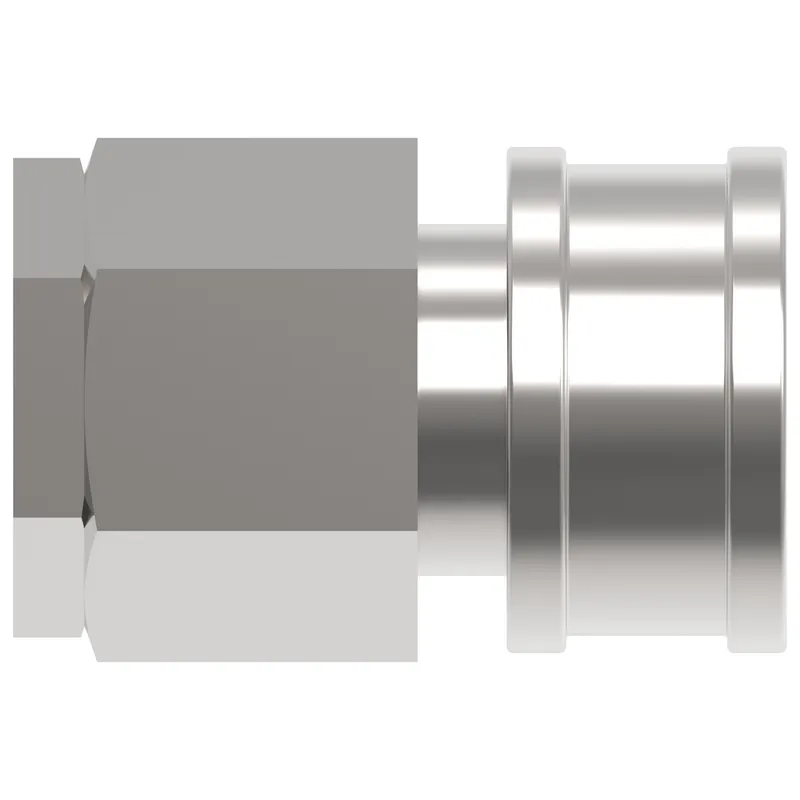

Danfoss 3H21143

COUPLING,HK,F,3/8,CS,-6NPTF,FKM

MPN: 3H21143
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 3H21143?

Danfoss COUPLING,HK,F,3/8,CS,-6NPTF,FKM, manufacturer part number 3H21143. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146160089
Air inclusion max cc	2.90
Angle shape	Straight
Application	Aerospace, Agriculture, Chemical, Construction, Consumer products, Fluid transfer, Food and beverage, General industry, Hvac, Hydraulics, Law enforcement/rescue, Medical, Military, Oil and gas, Transportation, Trucks
Body size	3/8
Certifications	ISO 7241-1 Series B
Connection style	Manual connect
End size 1	-6
End type 1	Female pipe (NPTF)
Finish plating	Zinc trivalent
Flow rate GPM	6.00
Fluid compatibility	Hydraulic service
Fluid loss cc	2.10000
Hex size 1 IN	0.880
Item type	Female half
Latch type	Push/pull
Product length in	2.560
Product material	Carbon steel
Safety locking mechanism	None
Seal material	Fluorocarbon (FKM)
Thread size 1	3/8-18 NPTF
Valve type	2 way
Working pressure max psi	4000
Working temperature max F	400
Working temperature min F	-15
