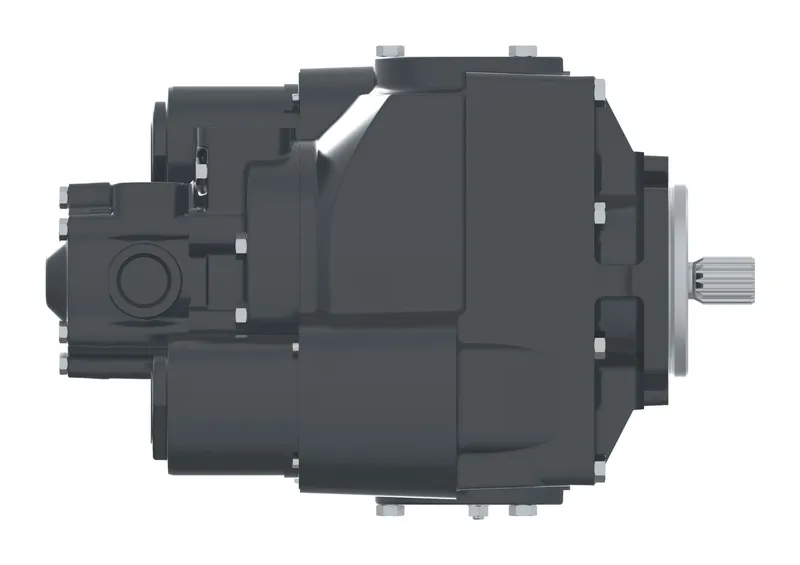

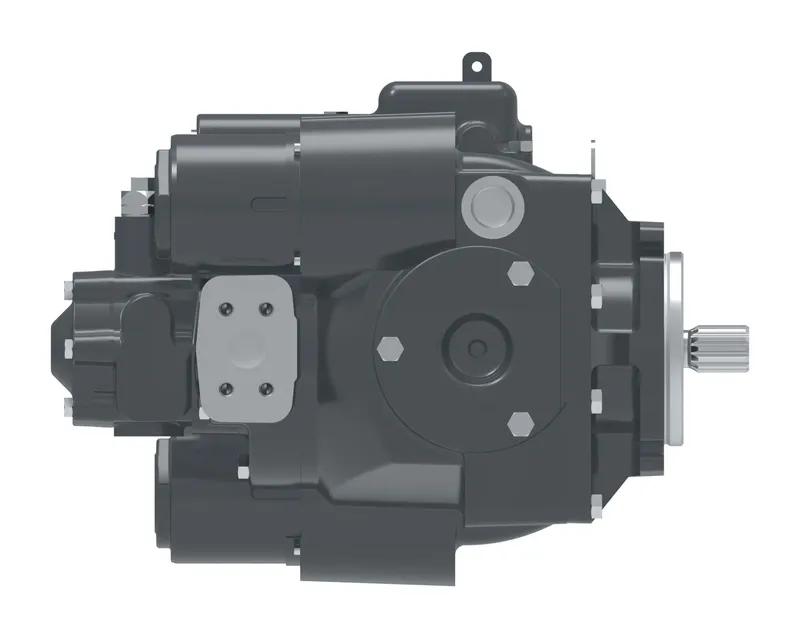

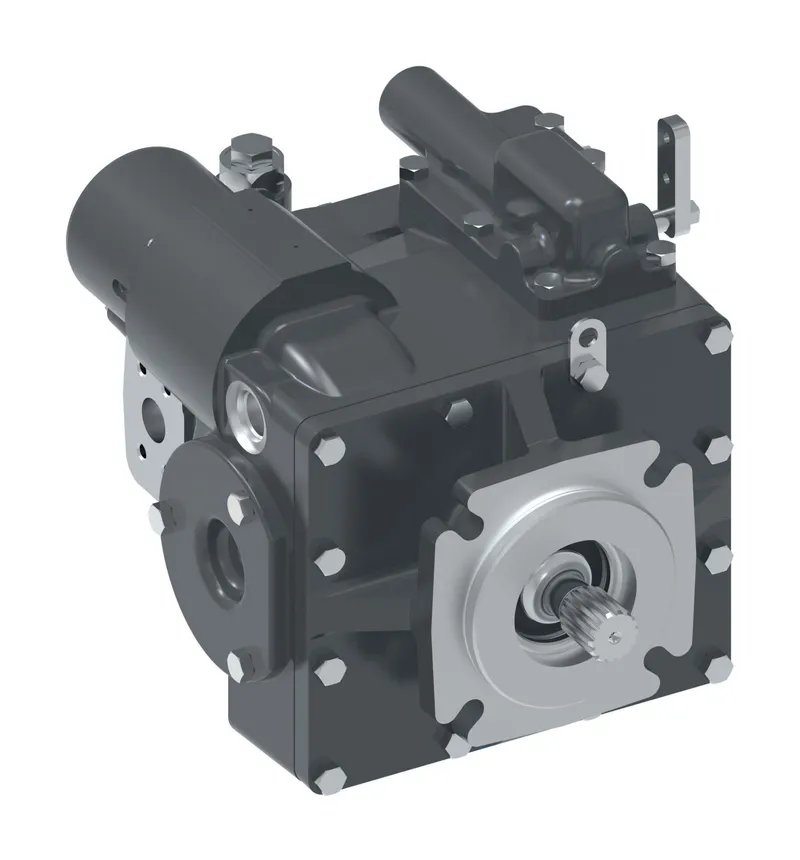

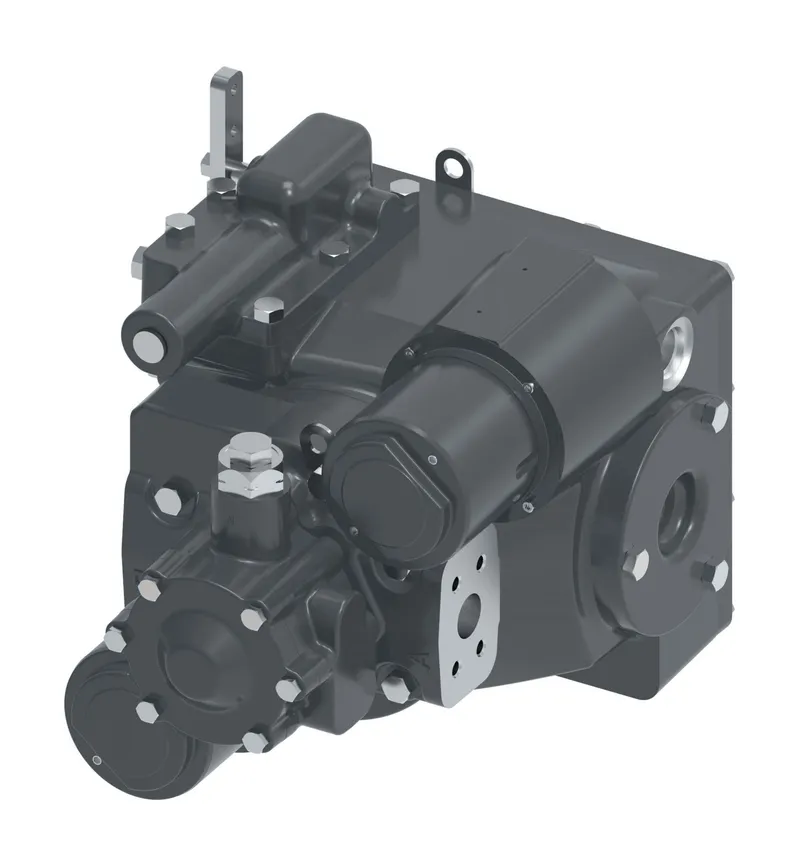

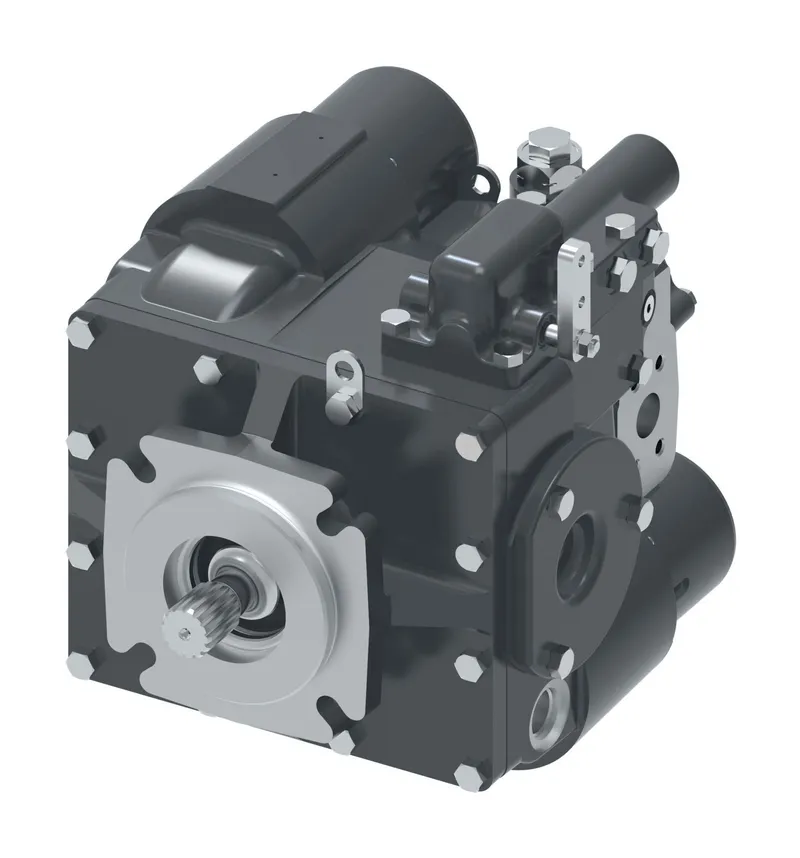

PUMP-VAR DISP, S1PV064 CW, ACA392321R1G00MCDD02W09020DAASCDB
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mobile closed-circuit piston pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3923-425 be shipped?
3923-425 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3923-425 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3923-425 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3923-425, subject to availability and destination.
Danfoss PUMP-VAR DISP, S1PV064 CW, ACA392321R1G00MCDD02W09020DAASCDB, manufacturer part number 3923-425. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Auxiliary mounting | No auxiliary mounting |
| Brand | Danfoss |
| Charge pump | Charge pump with J. Deere integral pressure filter mounted on the -B- port side, diagnostic fitting included and externaldischarge port (metric) M14 x 1.5 |
| Charge pump displacement | 1.06 cid [17.4 cc] |
| Charge pump special features | Steel core charge pump gasket |
| Control | Manual with wide band neutral |
| Control orifice upper servo S1 | 1.32 [.052] Diameter |
| Control orifice upper servo S2 | No control orifice S2 |
| Control special features | No control special features |
| Control supply orifice | 1.32 [.052] Diameter |
| CPRV setting | 220 psi [15 bar] |
| Design code | Design code B |
| Design type | Series 1, Models 33-64 |
| Displacement | 63.66 cm3/r (3.885 in3/r) at 18 deg |
| Flow rate gpm | 70.0 |
| Flow rate lpm | 264.8 |
| Identification | John Deere |
| Input rotation | Clockwise (Righthand) |
| Input shaft | 21 tooth 16/32 pitch spline (33/39/46/54/64 only) |
| Main ports | (1.00) - Code 62 per SAE J518 with high pressure shuttle block |
| Maximum output speed | 4160 |
| Maximum temperature C | 82.20 |
| Maximum temperature F | 180.00 |
| Model Code 1 | ACA392321R1G00MCDD02W09020DAAS |
| Model Code 2 | CDB |
| Mounting Flange | 4-bolt-C |
| Output torque lbf*in | 3926.3 |
| Output torque n*m | 443.6 |
| Paint | Painted finish green |
| Power limiter valve set port A | PLV Port A, None |
| Power limiter valve set port B | PLV Port B, None |
| Press override | Internal pressure override |
| Pressure override setting | 6350 psi [438 bar] |
| Product height in | 10.560 |
| Product height mm | 268.224 |
| Product length in | 19.760 |
| Product length mm | 501.904 |
| Product Series | Hydrostatic - Heavy duty variable pump |
| Product width in | 10.740 |
| Second disp of dual element | No dual element |
| Special pump assembly features | All metric ports |
| Type | Variable displacement pump |
| Valve plate | Propel |
| Working pressure bar | 438 |
| Working pressure psi | 6350 |
