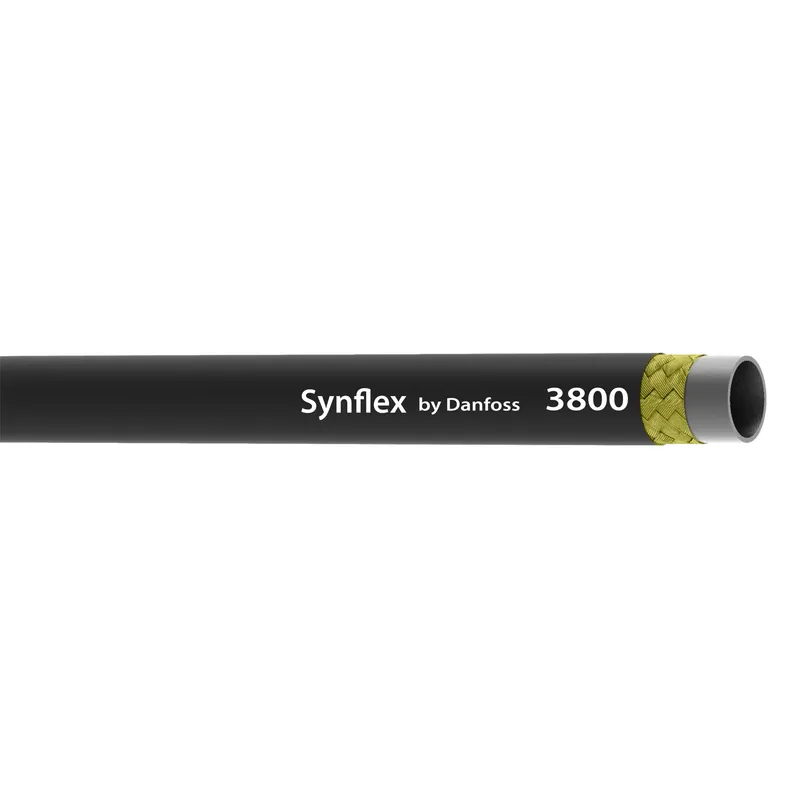

Danfoss 3800-08-250BX

HOSE-SYN, 3800, -8, 250FT, BX, R8

MPN: 3800-08-250BX
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 3800-08-250BX?

Danfoss HOSE-SYN, 3800, -8, 250FT, BX, R8, manufacturer part number 3800-08-250BX. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789346551
Abrasion resistance	Premium
Application	Water
Bend radius min (inch)	4.000
Bend radius min (mm)	101.600
Brand	Synflex by Danfoss
Burst pressure (bar)	980
Burst pressure (psi)	14200
Color	Black
Compliances	ASTM D380
Conditional temp range	-40F to 150F for water based
Conductivity	Conductive
Construction	1 Ply braid
Cover material	Polyethylene (PE)
Impulse cycle (cycles)	200000
Inside diameter (inch)	0.50
Inside diameter (mm)	12.70
Length (in)	3000.00000
Length (mm)	76200.00000
Outside diameter (inch)	0.84
Outside diameter (mm)	21.30
Package form	Box
Product height in	0.500
Product height mm	12.700
Product width in	0.500
Product width mm	12.700 mm
Qualified hose fittings	903
Reinforcement material	Fabric
Series	3800 Series
Size	-8
Tube material	Nylon lined
Working pressure max (bar)	245
Working pressure max (psi)	3550
Working temperature max (C)	93
Working temperature max (F)	200.0
Working temperature min (C)	-40
Working temperature min (F)	-40.0

3800-08-250BX: frequently asked questions

When can 3800-08-250BX be shipped?

3800-08-250BX is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3800-08-250BX in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3800-08-250BX and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3800-08-250BX, subject to availability and destination.
