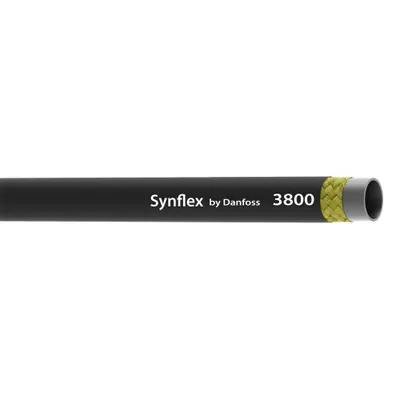

Danfoss 3800-06-2-250BX

TWIN:250/CTN:RAND:BLACK (2)3800-06

MPN: 3800-06-2-250BX
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 3800-06-2-250BX?

Danfoss TWIN:250/CTN:RAND:BLACK (2)3800-06, manufacturer part number 3800-06-2-250BX. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Abrasion resistance	Premium
Bend radius min (inch)	2.500
Bend radius min (mm)	63.500
Brand	Synflex by Danfoss
Burst pressure (bar)	1103
Burst pressure (psi)	16000
Color	Black
Compliances	SAE 100R8
Conditional temp range	-40F to 150F fire resistant, -40F to 150F for water based
Conductivity	Conductive
Cover material	Polyurethane (TPU)
Inside diameter (inch)	0.37
Inside diameter (mm)	9.40
Outside diameter (inch)	0.67
Outside diameter (mm)	17.02
Package form	Box
Qualified hose fittings	903, 90A, 98E
Reinforcement material	Aramid (Kevlar)
Size	-6
Working pressure max (bar)	276
Working pressure max (psi)	4000
Working temperature max (C)	100
Working temperature max (F)	212.0
Working temperature min (C)	-40
Working temperature min (F)	-40.0
