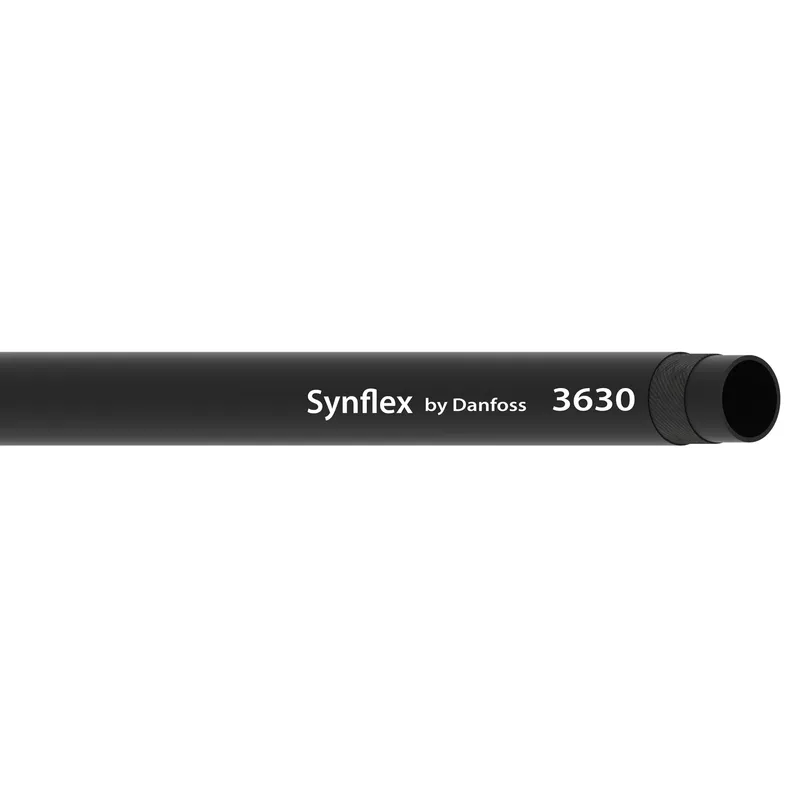

Danfoss 3630-06RD-500R
HOSEThrmAirWaterRED 3/8ID 500FT CONT RL
- MPN
- 3630-06RD-500R
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss 3630-06RD-500R?
Danfoss HOSEThrmAirWaterRED 3/8ID 500FT CONT RL, manufacturer part number 3630-06RD-500R. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Abrasion resistance | Premium |
| Bend radius min (inch) | 0.875 |
| Bend radius min (mm) | 22.225 |
| Brand | Synflex by Danfoss |
| Burst pressure (bar) | 69 |
| Burst pressure (psi) | 1000 |
| Color | Red |
| Conditional temp range | -10F to 130F with brass fttgs |
| Conductivity | Non-conductive |
| Cover material | Polyvinyl chloride (PVC) |
| Fixed Length | 152.400 |
| Inside diameter (inch) | 0.37 |
| Inside diameter (mm) | 9.40 |
| Outside diameter (inch) | 0.64 |
| Outside diameter (mm) | 16.26 |
| Package form | Reel |
| Qualified hose fittings | 39C, 903, 90A, 90H, 90L |
| Reinforcement material | Fiberglass |
| Size | -6 |
| Tube material | Polyvinyl chloride (PVC) |
| Tube wall thickness (inch) | 0.14 |
| Tube wall thickness (mm) | 3.43 |
| Working pressure max (bar) | 17 |
| Working pressure max (psi) | 250 |
| Working temperature max (C) | 66 |
| Working temperature max (F) | 150.0 |
| Working temperature min (C) | -23 |
| Working temperature min (F) | -10.0 |
3630-06RD-500R: frequently asked questions
When can 3630-06RD-500R be shipped?
3630-06RD-500R is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3630-06RD-500R in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3630-06RD-500R and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3630-06RD-500R, subject to availability and destination.
