Home / Danfoss (Drives) / Industrial vane pumps / Danfoss 358358-A

Danfoss (Drives)

Danfoss 358358-A

MPN: 358358-A
Category: Industrial vane pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 358358-A?

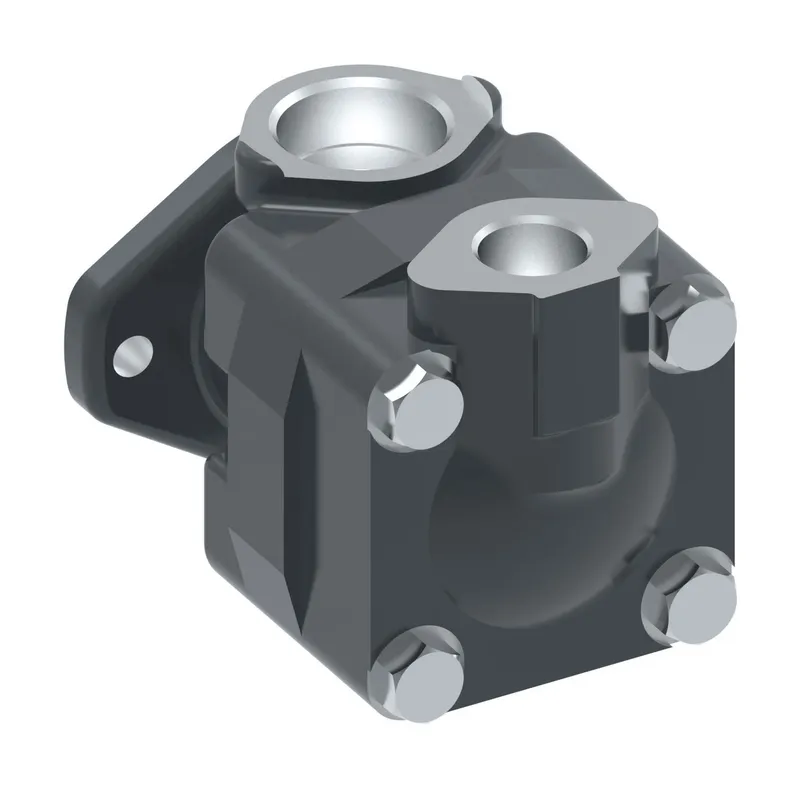

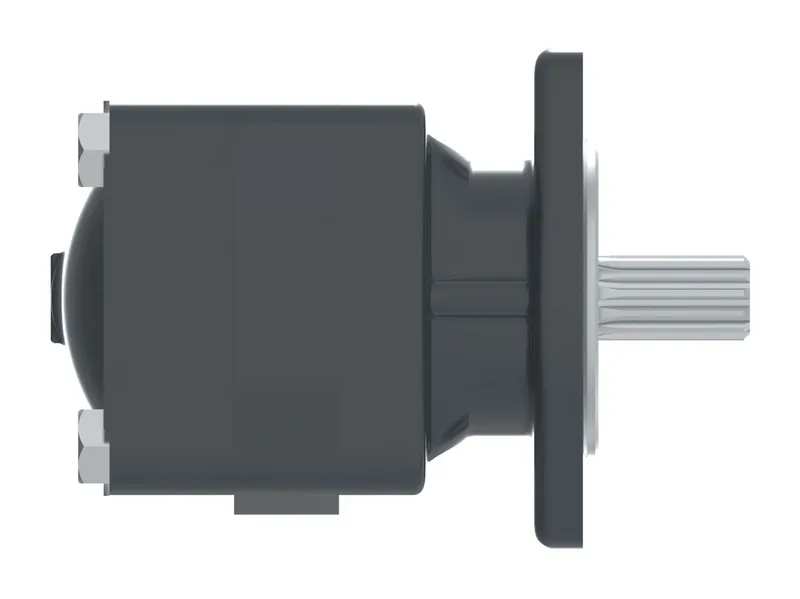

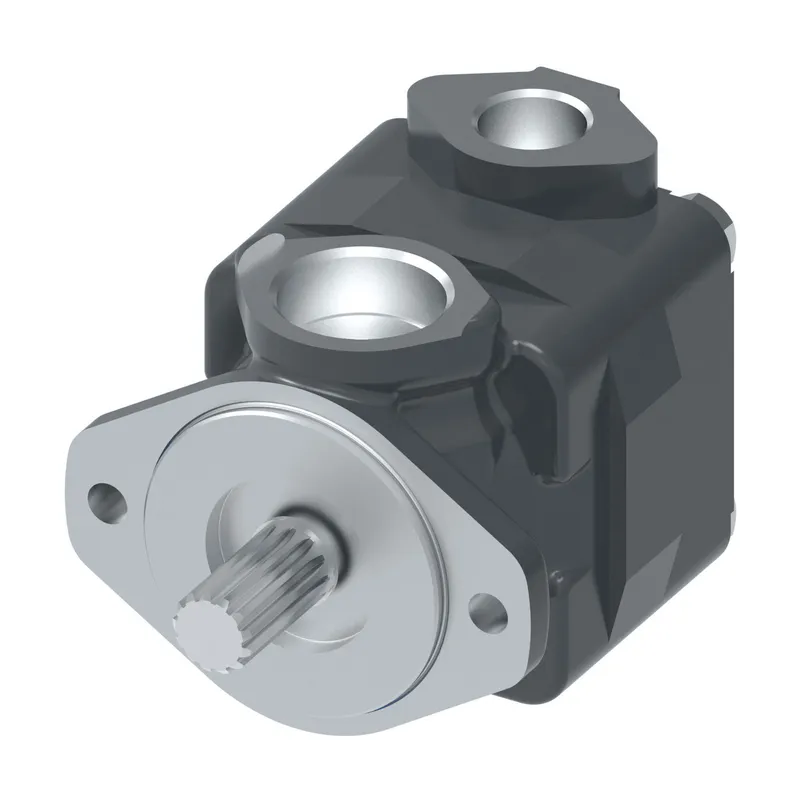

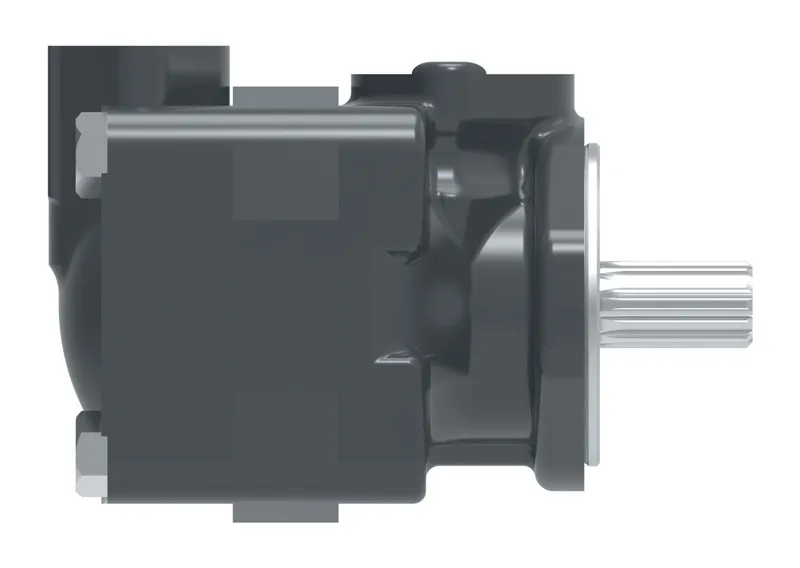

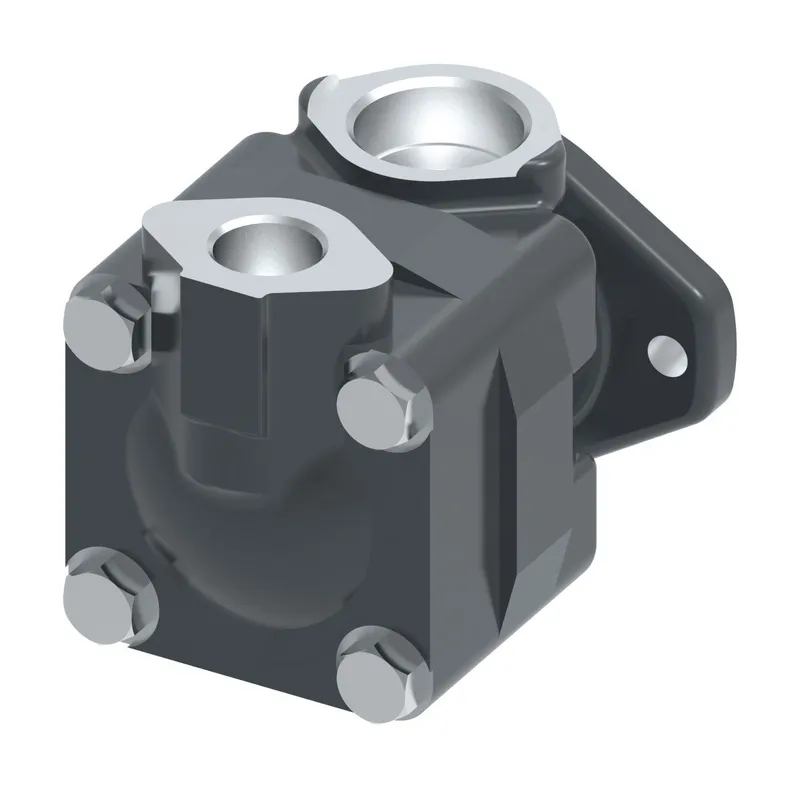

Danfoss V20 1S11S 1A11, V20 1S11S 1A11, manufacturer part number 358358-A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

SEALS TYPE	STANDARD SEAL
PUMP TYPE	VANE PUMP
Series	SERIES DESIGNATION
Cover type	STANDARD COVER
Mounting type	2 BOLT FLANGE SAE-A SIZE
INLET PORT TYPE	1.625-12UN-2B THREAD
RING CAPACITY	11 GPM
OUTLET PORT TYPE	COVER D,COVER STANDARD - 1.062-12 UN-2B THREAD. F COVER - PRESSURE PORT -.750-16 UN-2B THREAD , TANK PORT-1.0625-12 UN-2B THREAD
SHAFT SEAL AND BEARING	SINGLE LIP SEAL&SEALED BEARING
Shaft type	STRAIGHT.KEY
OUTLETCOVER PORT ORIENTATION	OPPOSITE TO INLET PORT
DESIGN CODE	DESIGN CODE FOR STANDARD
Shaft rotation	RH CW ROTATION VIEWED FROM SHAFT END
Brand	Vickers by Danfoss
IPM FRAME SIZE	V20 Single Pump
Model Code 1	V20 1S11S 1A11

358358-A: frequently asked questions

When can 358358-A be shipped?

358358-A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 358358-A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 358358-A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 358358-A, subject to availability and destination.
