Danfoss 3580-0800A

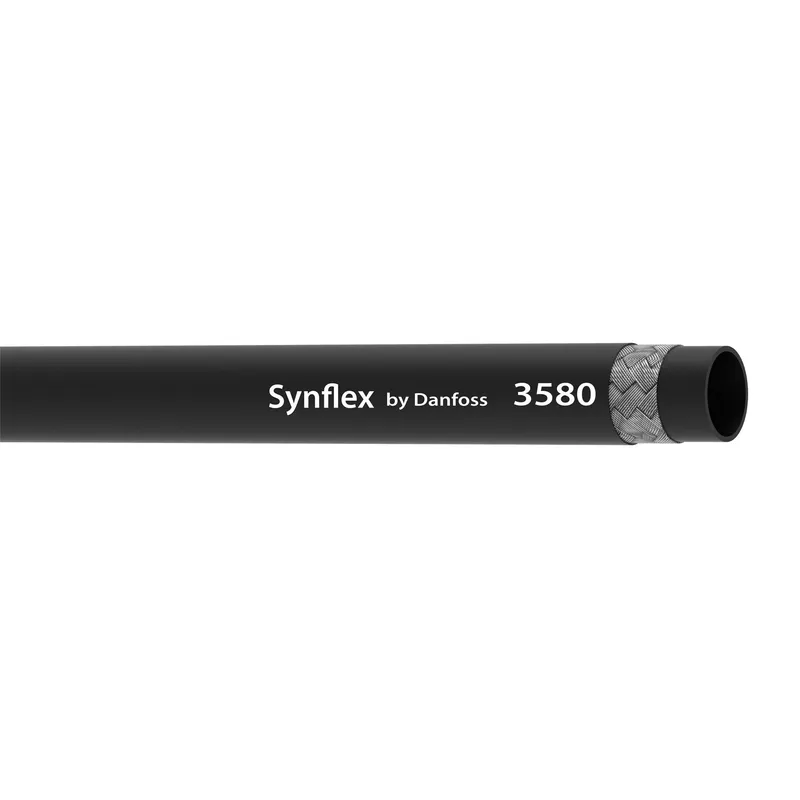

HOSE THERMO R1/R7 BLACK 1500FT PLYWOODRE
- MPN
- 3580-0800A
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss 3580-0800A?
Danfoss HOSE THERMO R1/R7 BLACK 1500FT PLYWOODRE, manufacturer part number 3580-0800A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 639789350794 |
| Abrasion resistance | Premium |
| Bend radius min (inch) | 3.250 |
| Bend radius min (mm) | 82.550 |
| Brand | Synflex by Danfoss |
| Burst pressure (bar) | 827 |
| Burst pressure (psi) | 12000 |
| Color | Black |
| Compliances | SAE 100R1, SAE 100R7 |
| Conditional temp range | -40F to 140F fire resistant, -40F to 140F for water based |
| Cover material | Polyurethane (TPU) |
| Fixed Length | 457.300 |
| Inside diameter (inch) | 0.50 |
| Inside diameter (mm) | 12.70 |
| Outside diameter (inch) | 0.77 |
| Outside diameter (mm) | 19.56 |
| Qualified hose fittings | 903, 90A |
| Reinforcement material | Brass plated steel wire |
| Size | -8 |
| Working pressure max (bar) | 207 |
| Working pressure max (psi) | 3000 |
| Working temperature max (C) | 107 |
| Working temperature max (F) | 225.0 |
| Working temperature min (C) | -40 |
| Working temperature min (F) | -40.0 |
