Danfoss 3580-06
HOSE,THERMO,BLACK R1/R9
- MPN
- 3580-06
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

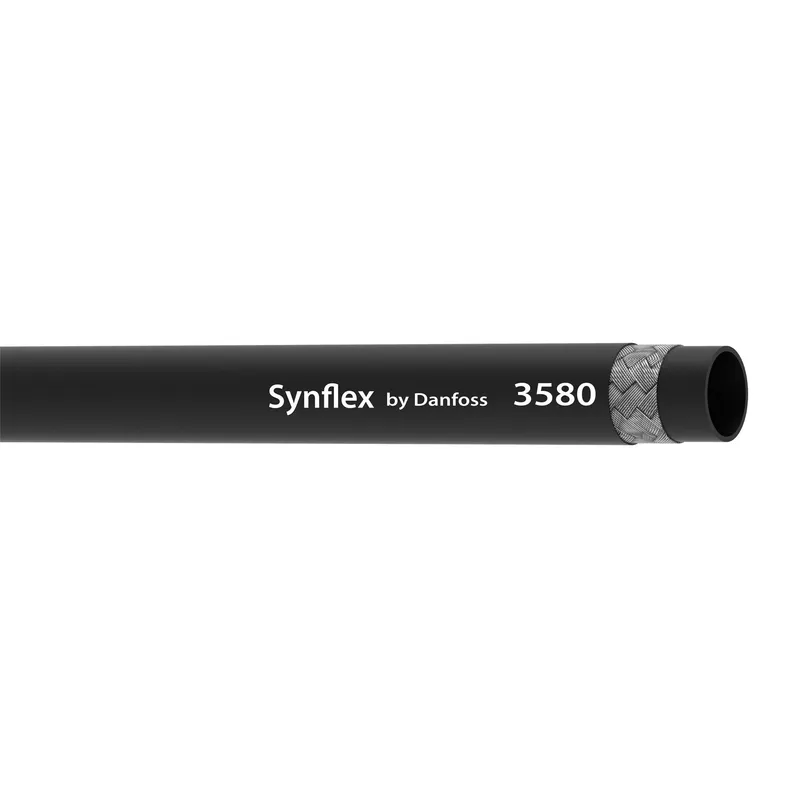

What is the Danfoss 3580-06?
Danfoss HOSE,THERMO,BLACK R1/R9, manufacturer part number 3580-06. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 639789346087 |
| Abrasion resistance | Premium |
| Bend radius min (inch) | 2.250 |
| Bend radius min (mm) | 57.150 |
| Brand | Synflex by Danfoss |
| Burst pressure (bar) | 896 |
| Burst pressure (psi) | 13000 |
| Color | Black |
| Compliances | SAE 100R1, SAE 100R7 |
| Conditional temp range | -40F to 225F fire resistant, -40F to 225F for water based |
| Conductivity | Non-conductive |
| Cover material | Polyurethane (TPU) |
| Inside diameter (inch) | 0.37 |
| Inside diameter (mm) | 9.40 |
| Outside diameter (inch) | 0.65 |
| Outside diameter (mm) | 16.51 |
| Package form | Bulk |
| Qualified hose fittings | 903, 90A |
| Reinforcement material | Brass plated steel wire |
| Size | -6 |
| Tube wall thickness (inch) | 0.14 |
| Tube wall thickness (mm) | 3.56 |
| Working pressure max (bar) | 224 |
| Working pressure max (psi) | 3250 |
| Working temperature max (C) | 107 |
| Working temperature max (F) | 225.0 |
| Working temperature min (C) | -40 |
| Working temperature min (F) | -40.0 |
3580-06: frequently asked questions
When can 3580-06 be shipped?
3580-06 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3580-06 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3580-06 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3580-06, subject to availability and destination.
