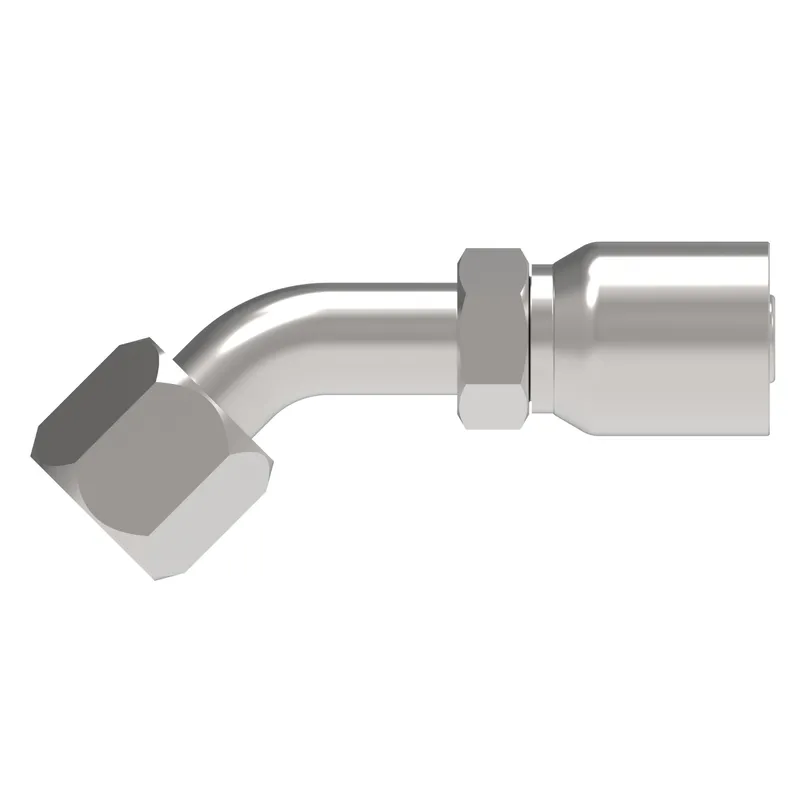

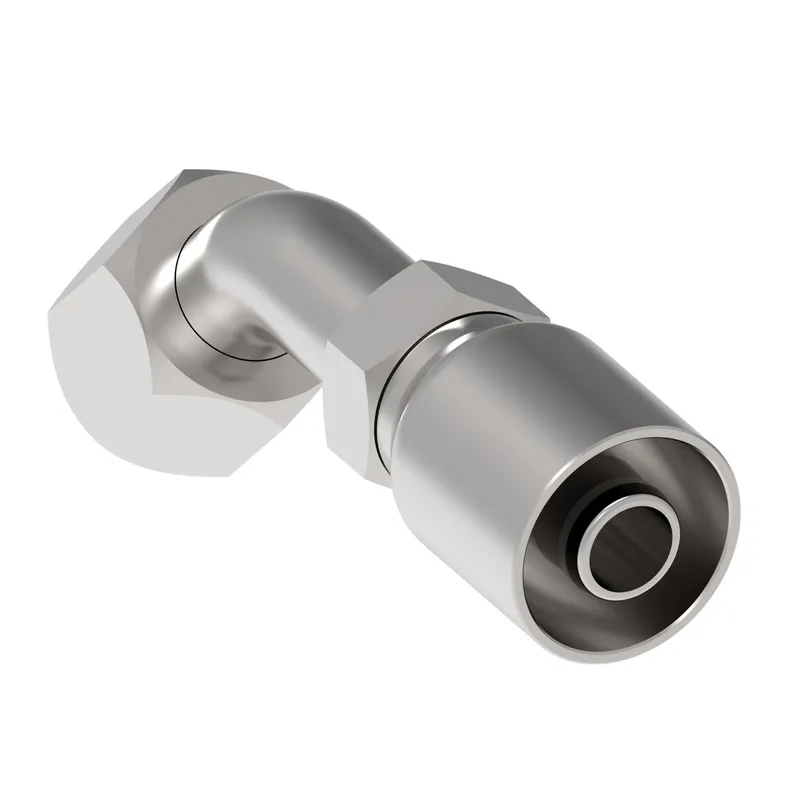

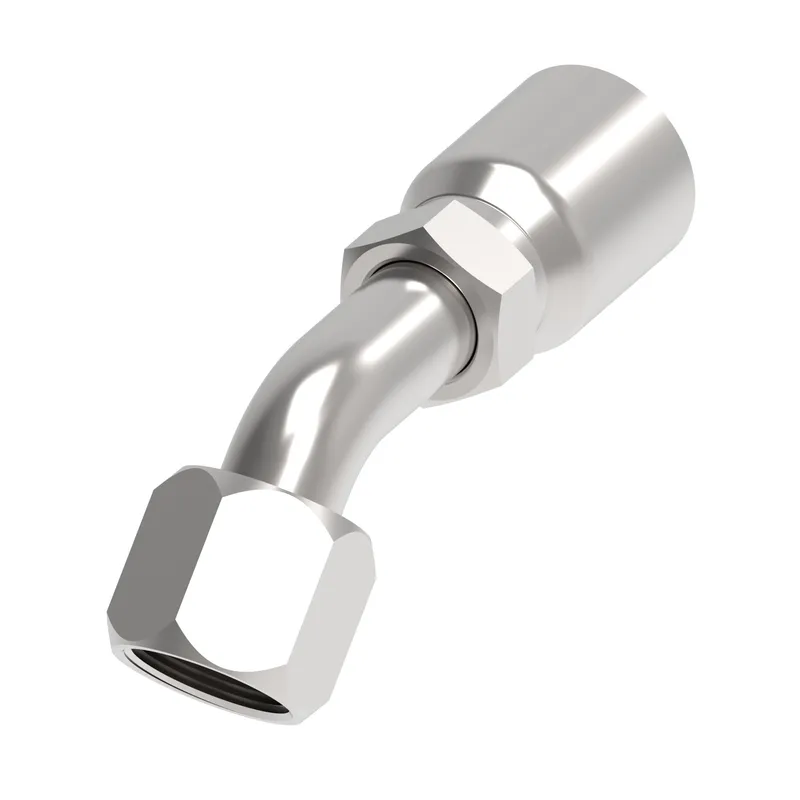

Danfoss 33612E-692

Ftng (Perm) Thermo Coupling

MPN: 33612E-692
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 33612E-692?

Danfoss Ftng (Perm) Thermo Coupling, manufacturer part number 33612E-692. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	725975843949
Angle shape	45 Degree
Brand	Weatherhead by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.050
Compatible hoses	H336, H335
Compatible tube OD IN	0.75
Compatible tube OD MM	19.050
Construction Style	Crimp
Drop dimension IN	1.000
Drop dimension MM	28.00
End size 1	-12
End type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.130
Hex size 1 MM	28.702
Hex size 2 IN	1.250
Hex size 2 MM	31.750
Hose cut off factor IN	2.450
Hose cut off factor MM	62.230
Hose size	-12
Inside diameter IN	0.6300
Inside diameter MM	16.0020
Product material	Carbon steel
Thread sealant	No
Tube OD 1 IN	0.750
Tube OD 1 MM	19.050
