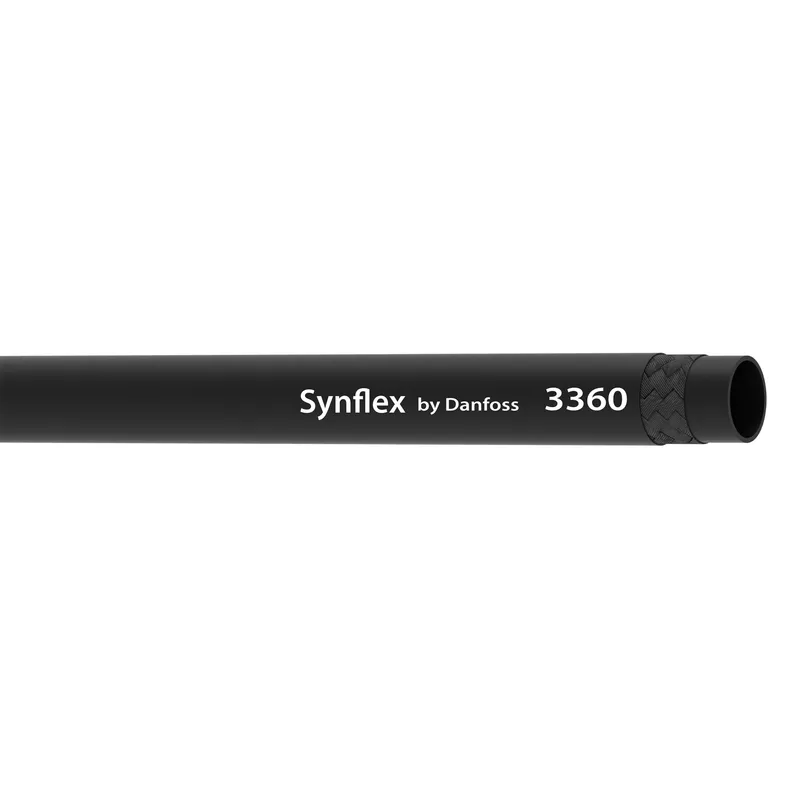

Danfoss 3360-10003
HOSE-250'/CTN-RAND-BLACK
- MPN
- 3360-10003
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss 3360-10003?
Danfoss HOSE-250'/CTN-RAND-BLACK, manufacturer part number 3360-10003. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 639789353511 |
| Abrasion resistance | Premium |
| Bend radius min (inch) | 4.000 |
| Bend radius min (mm) | 101.600 |
| Brand | Synflex by Danfoss |
| Burst pressure (bar) | 827 |
| Burst pressure (psi) | 12000 |
| Color | Black |
| Compliances | SAE 100R18 |
| Conditional temp range | 150F for water based |
| Conductivity | Non-conductive |
| Construction | 1 Ply braid |
| Cover material | Polyester (PET) |
| Fixed Length | 76.200 |
| Inside diameter (inch) | 0.63 |
| Inside diameter (mm) | 16.00 |
| Lay line style | Ink jet |
| Outside diameter (inch) | 1.07 |
| Outside diameter (mm) | 27.18 |
| Reinforcement material | Fiber |
| Series | 3360 Series |
| Size | -10 |
| Tube wall thickness (inch) | 0.22 |
| Tube wall thickness (mm) | 5.69 |
| Working pressure max (bar) | 207 |
| Working pressure max (psi) | 3000 |
| Working temperature max (C) | 66 |
| Working temperature max (F) | 150.0 |
| Working temperature min (C) | -40 |
| Working temperature min (F) | -40.0 |
3360-10003: frequently asked questions
When can 3360-10003 be shipped?
3360-10003 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3360-10003 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3360-10003 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3360-10003, subject to availability and destination.
