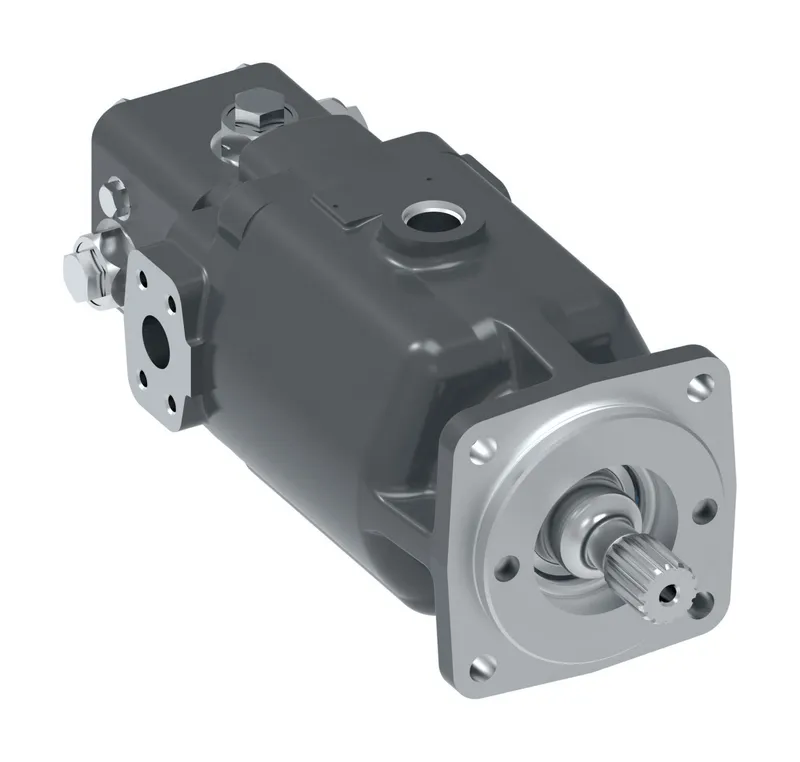

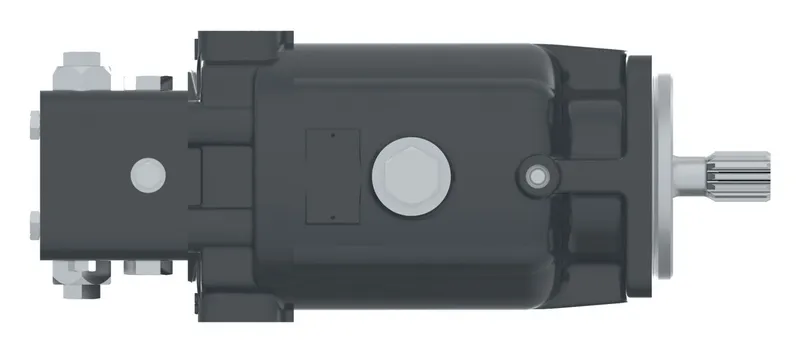

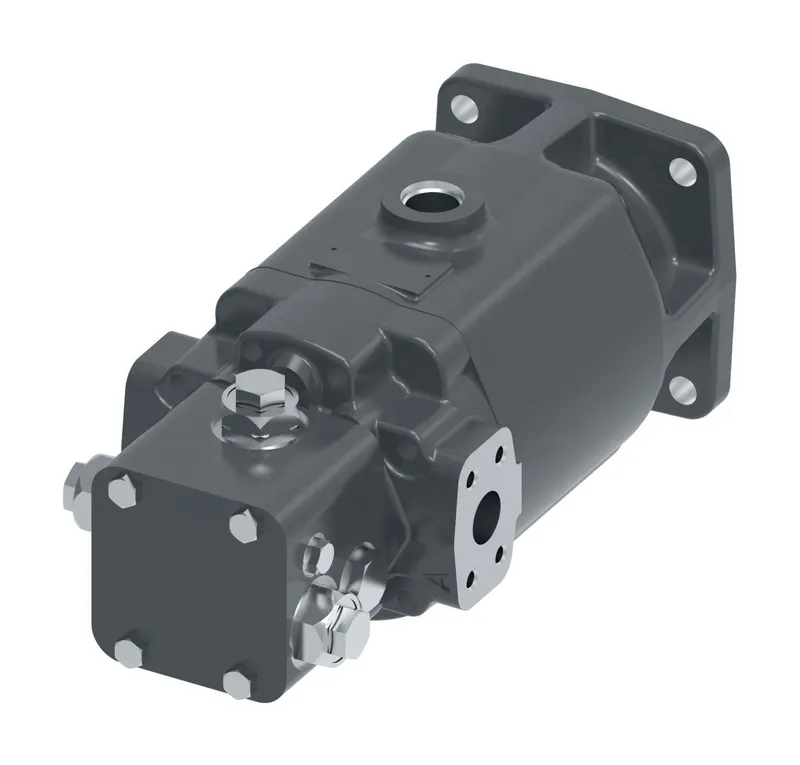

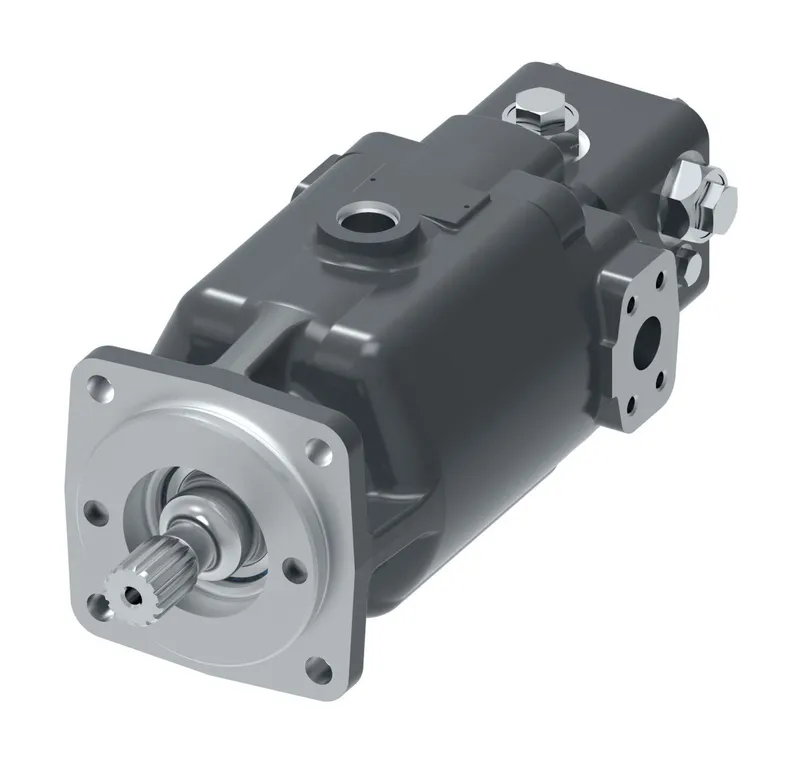

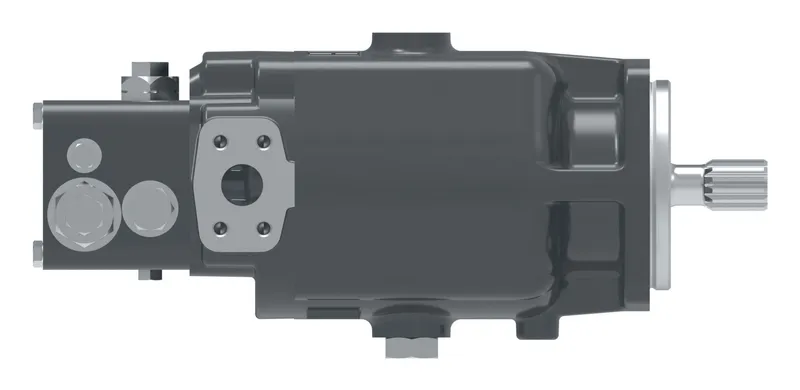

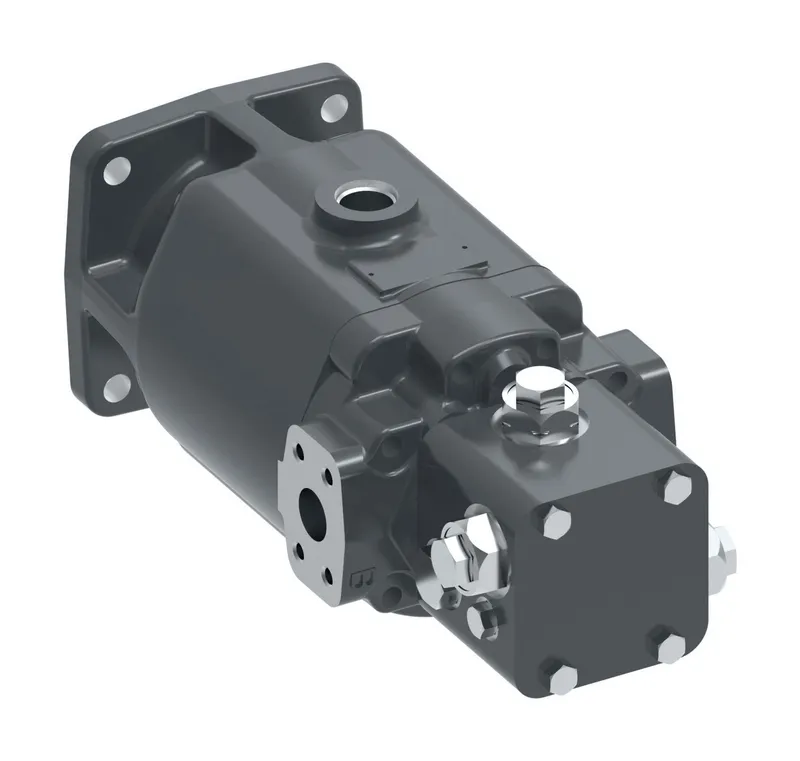

MOTOR-FIXED DISPL, S1MF054, HHD333321AB1B3F3C00000B
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Fixed displacement axial piston motors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3333-054 be shipped?
3333-054 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3333-054 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3333-054 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3333-054, subject to availability and destination.
Danfoss MOTOR-FIXED DISPL, S1MF054, HHD333321AB1B3F3C00000B, manufacturer part number 3333-054. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| CPRV setting | CPRV, 160 psi (11 bar) |
| CPRV type | Standard charge pressure relief valve |
| Design code | Design code B |
| Design type | Fixed clearance with lip seal (33/39/46/54/64 only) |
| Displacement | 3.316 cid (54.34 cc) |
| End cover and comp valve block | Valve block with shuttle valve, low-rate springs, charge pressure relief valve, and high pressure relief valves |
| Flow rate gpm | 62.5 |
| Flow rate lpm | 236.8 |
| High pres relief valve port A | Standard |
| High pres relief valve port B | Standard |
| HPRV setting port A | HPRV port A, 3000 psi (206.8 bar) |
| HPRV setting port B | HPRV port B, 1500 psi (103.4 bar) |
| Identification | Standard |
| Main ports | 1.00 code 61 opposite side ports (not for new applications) |
| Maximum output speed | 4357 |
| Maximum temperature C | 82.20 |
| Maximum temperature F | 180.00 |
| Model Code 1 | HHD333321AB1B3F3C00000B |
| Mounting Flange | 4-BOLT-C |
| Output shaft | 21 tooth 16/32 pitch spline (33/39/46/54/64 only) |
| Output torque lbf-in2 | 1583.3 |
| Output torque Nm | 178.9 |
| Paint | Standard, primer blue |
| Product height in | 6.000 |
| Product height mm | 152.400 |
| Product length in | 14.680 |
| Product length mm | 372.872 |
| Product Series | Heavy duty hydrostatic fixed displacement motor |
| Product type | Fixed displacement motor |
| Product width in | 6.000 |
| Product width mm | 152.4 |
| Special features | No special features |
| Speed sensor | No speed sensor |
| Working pressure bar | 207 |
| Working pressure psi | 3000 |
