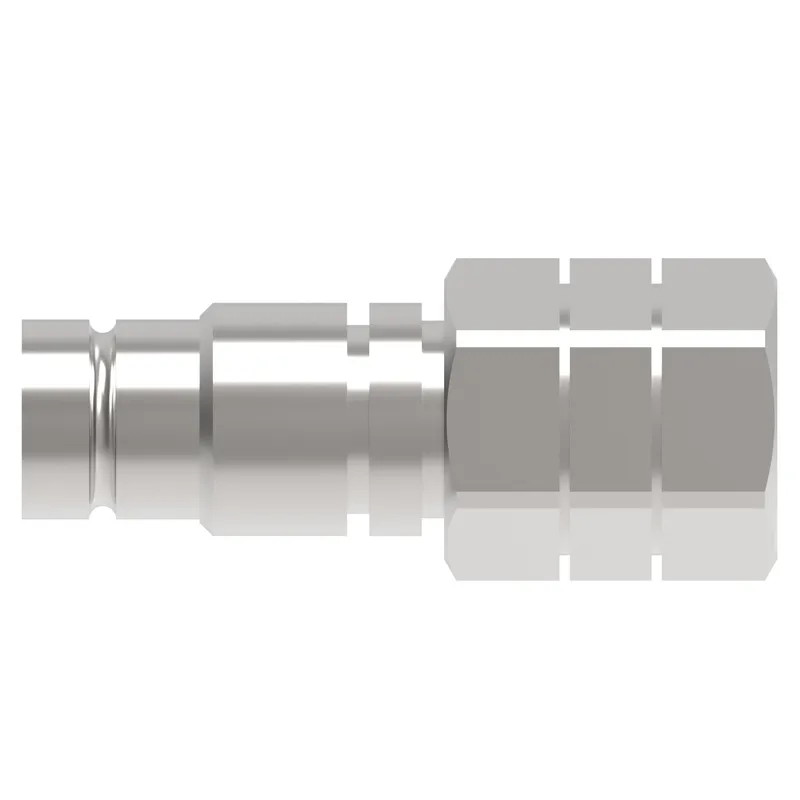

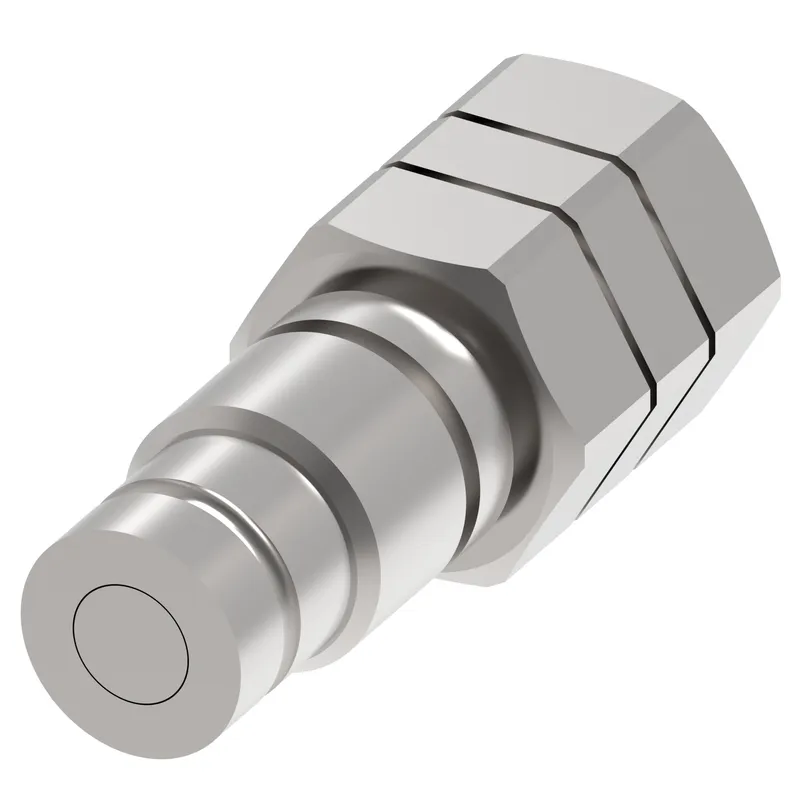

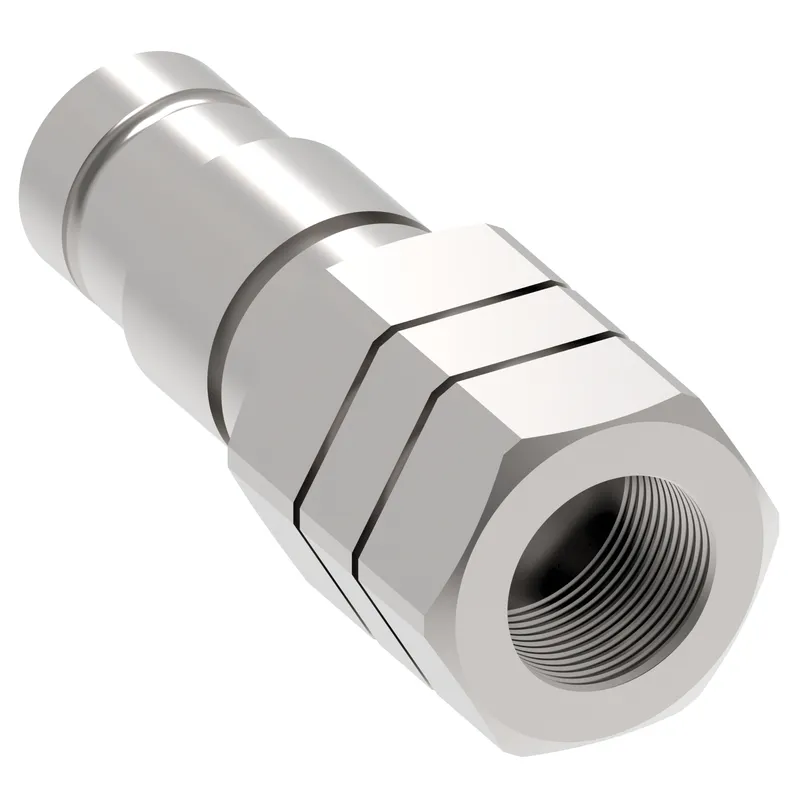

Danfoss 32FFP125

COUPLING,FF,M,1"1/4,CS,-20NPT,NBR

MPN: 32FFP125
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 32FFP125?

Danfoss COUPLING,FF,M,1"1/4,CS,-20NPT,NBR, manufacturer part number 32FFP125. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146156310
Air inclusion max cc	0.05
Angle shape	Straight
Application	Agriculture, Building material, Commercial vehicles, Fluid transfer, Hydraulics, Road vehicles
Body size	1 1/4"
Brand	Danfoss
Burst pressure min psi	13050
Certifications	ISO 16028
Compliances	PED 2014/68 EU Article 4.3, REACH, RoHS Compliant
Connection style	Manual connect
End size 1	-20
End type 1	Female Pipe (NPT)
Finish plating	Guardian sealtm
Flow rate GPM	68.70
Fluid compatibility	Hydraulic fluid
Fluid loss cc	0.17000
Hex size 1 IN	2.170
Item type	Male half
Latch type	Push to connect
Product material	Carbon steel
Safety locking mechanism	Sleeve lock
Seal material	Nitrile(NBR)+Polyurethane(AU)
Sub brand	Hansen
Thread size 1	1 1/4-11 1/2 NPTF
Torque lbs-ft	45.00
Valve type	2 way
Working pressure max psi	4350
Working temperature max F	212
Working temperature min F	-13
