Danfoss 317524

F3 DG4S4 012A 50 Recommend 02-119492, F3DG4S4012A50

MPN: 317524
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 317524?

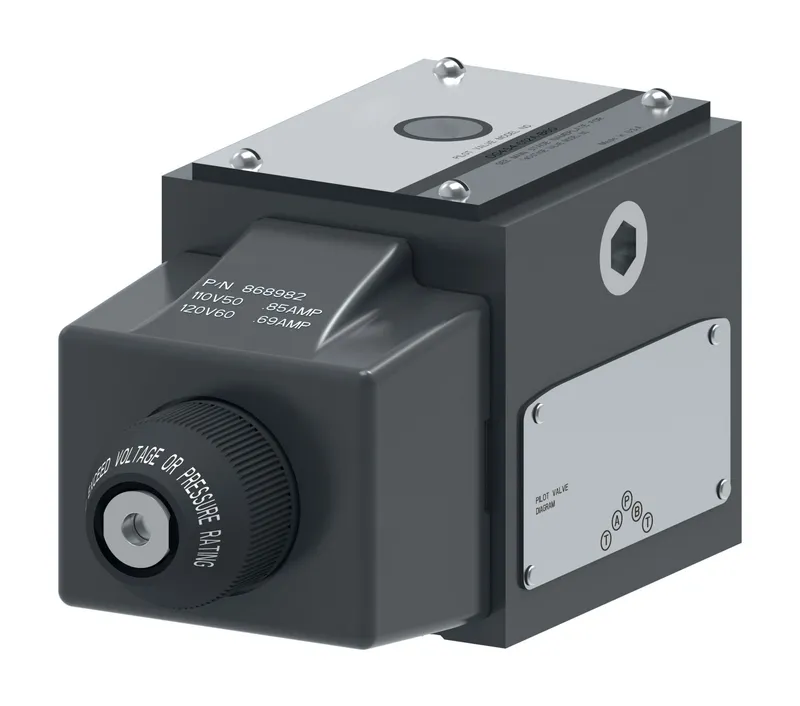

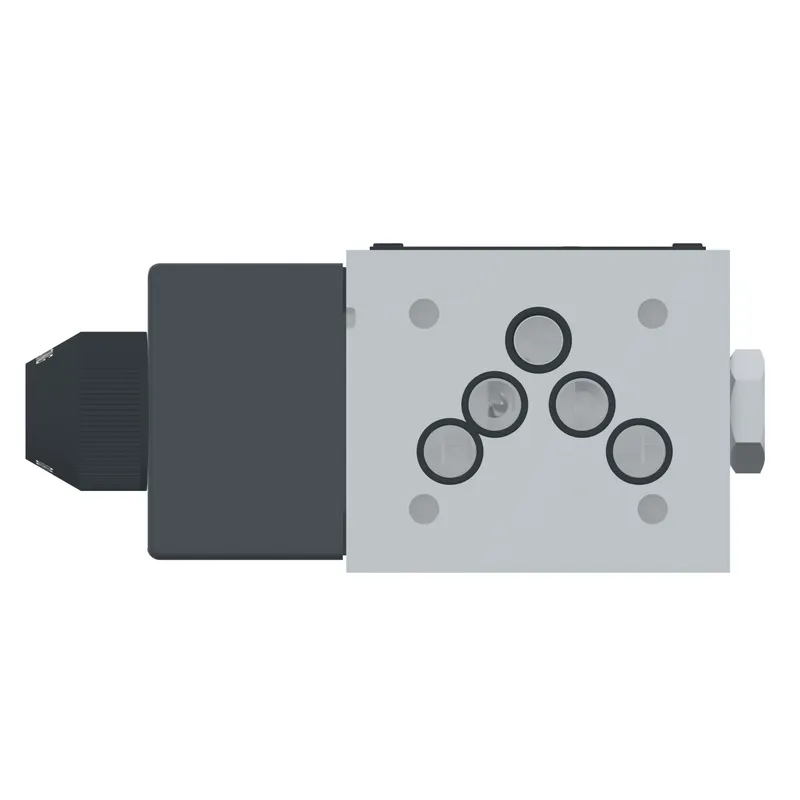

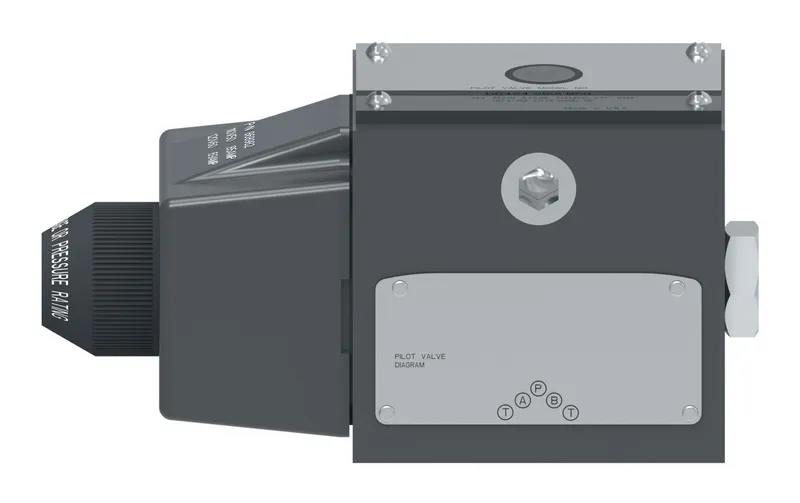

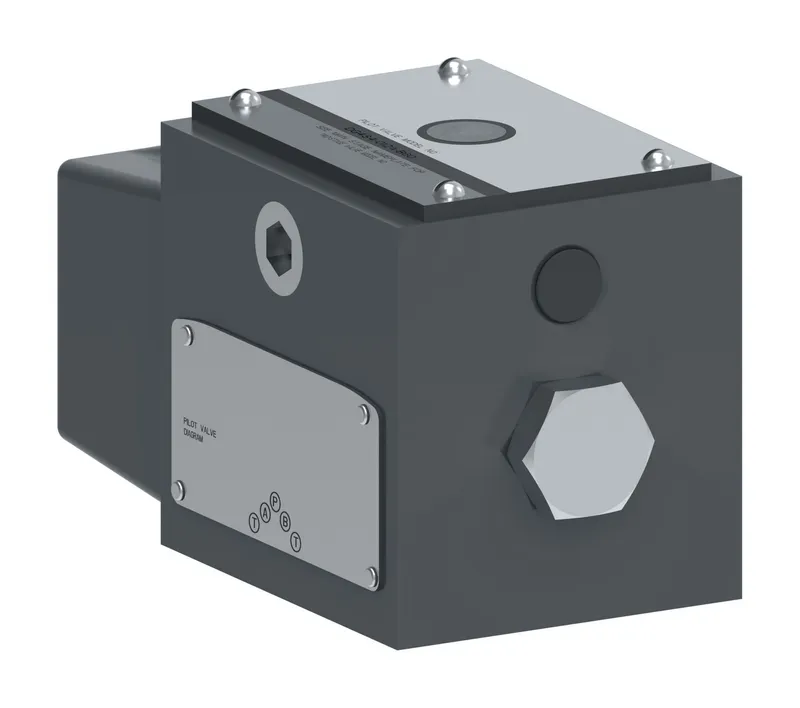

Danfoss F3 DG4S4 012A 50 Recommend 02-119492, F3DG4S4012A50, manufacturer part number 317524. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid operated
Brand	Vickers by Danfoss
Coil Rating	115 VAC 60Hz
Design Series	50 Series
Electrical Connection	Flying lead coil
Energ Time	18-25 ms
Flow rate upto GPM	20.0
Flow rate upto LPM	75.7
Fluid Cleanliness	20/18/15 micron
Fluid compatibility	Petroleum oils
Indicator Light	No
Interface	ISO4401-05
Manual override	None
Model Code 1	F3DG4S4012A50
Performance	Standard performance
Pressure rating BAR	210
Pressure rating PSI	3000
Product height in	3.850
Product length in	9.500
Product length mm	241.300
Product width in	2.810
Product width mm	71.374
Seal type	WATER GLYCOL
Solenoid Energising ID	Standard as per ANSI B93 9
Special features	None
Spool Position Monitor	No
Spool Type	Spool 2
Spring Arrangement	Spring offset
Stage	Single stage
Surge Suppr Damper	No
Tank port rating BAR	70
Tank port rating PSI	1000
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	50
Working temp max F	122
Working temp min C	20
Working temp min F	70

317524: frequently asked questions

When can 317524 be shipped?

317524 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 317524 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 317524 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 317524, subject to availability and destination.
