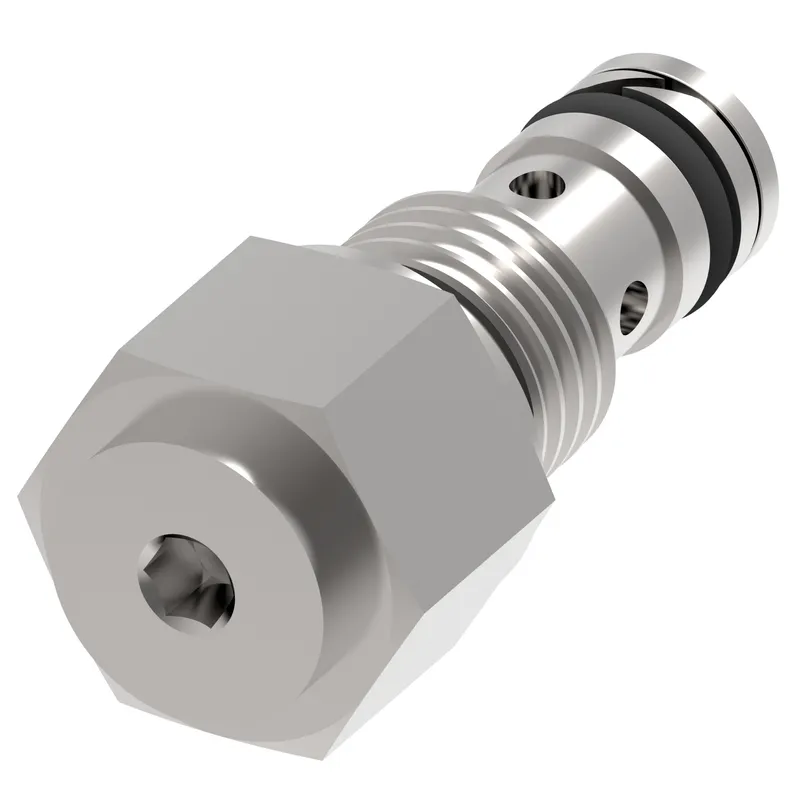

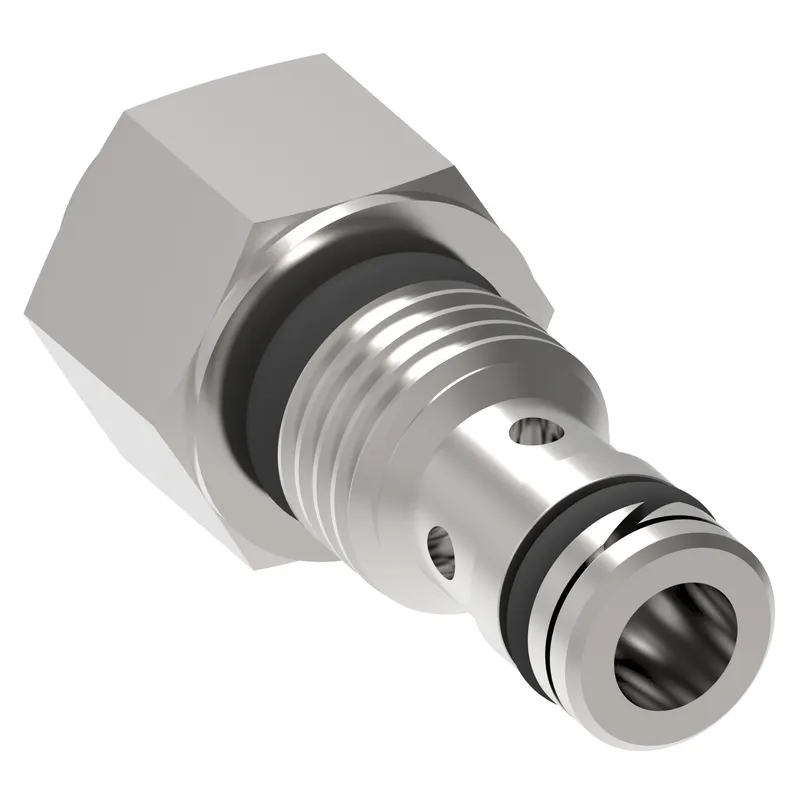

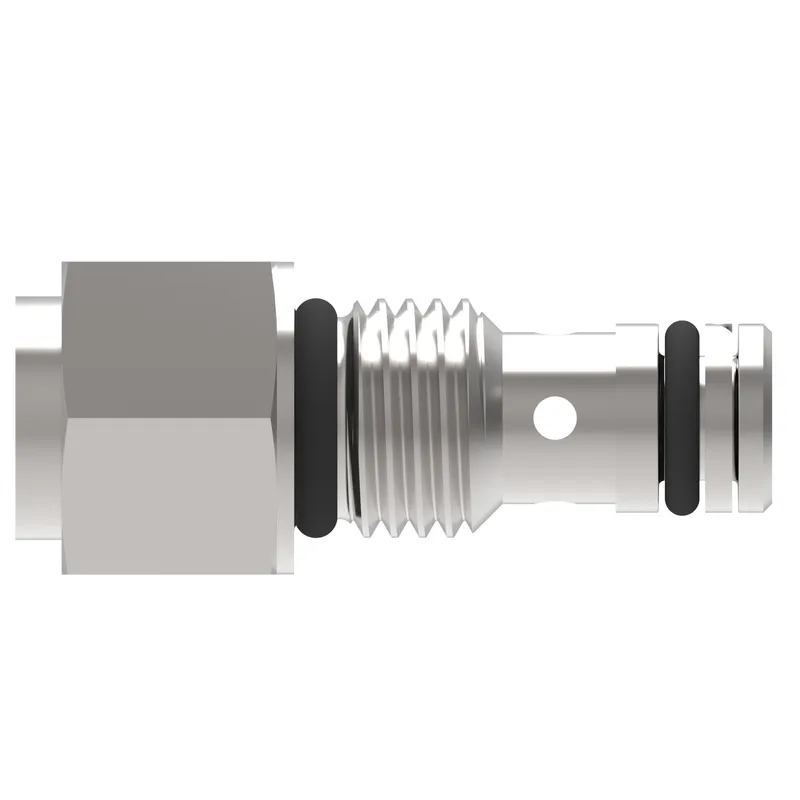

CV3-4-V-P-0-5, CV3-4-V-P-0-5

Name: CV3-4-V-P-0-5, CV3-4-V-P-0-5
Brand: Danfoss (Drives)
SKU: 301AA00046A

MPN: 301AA00046A · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Cartridge valves
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 301AA00046A be shipped?

301AA00046A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 301AA00046A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 301AA00046A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 301AA00046A, subject to availability and destination.

Danfoss CV3-4-V-P-0-5, CV3-4-V-P-0-5, manufacturer part number 301AA00046A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Vickers by Danfoss
Cavity	C-4-2
Cracking pressure BAR	0.34000000
Cracking pressure PSI	5.00000000
Flow rate GPM	2.00
Flow rate LPM	7.600
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Check Valve
Housing	No
Installation type	Screw-in Cartridge
Leakage	0.3 cc/min
Model Code 1	CV3-4-V-P-0-5
Number of valve ports	2
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Direct acting
Pressure rating BAR	350.00
Pressure rating PSI	5000.00
Product height in	0.563
Product height mm	14.288
Product length in	1.360
Product length mm	34.544
Product width in	0.563
Product width mm	14.288 mm
Proposition 65	Cancer and Reproductive Harm
Recommended filtration level	18/13
Seal type	Viton
Special features	None
Style	Poppet
