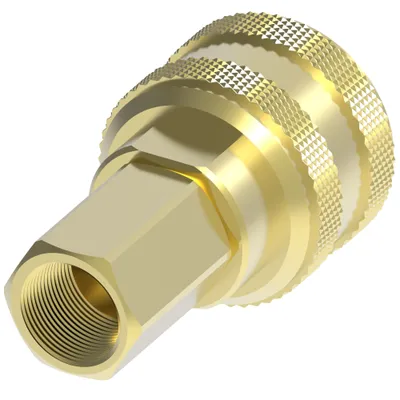

Danfoss 3000

COUPLING, ,F,1/4,B,-4NPT,NBR

MPN: 3000
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 3000?

Danfoss COUPLING,3000,F,1/4,B,-4NPT,NBR, manufacturer part number 3000. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146100757
Angle shape	Straight
Body size	1/4
Burst pressure min bar	552
Burst pressure min psi	8000
Connection style	Manual connect
End size 2	-4
End type 1	Female Push to Connect
End type 2	Female pipe (NPTF)
Finish plating	Nickel
Flow rate GPM	180.00
Flow rate LPM	681.37
Fluid compatibility	Air, Gases and liquids
Hex size 1 IN	0.690
Hex size 1 MM	17.526
Item type	Female half
Latch type	Push/pull
Product height in	1.190
Product height mm	30.226
Product length in	2.110
Product length mm	53.594
Product material	Brass
Product width in	1.190
Product width mm	30.226 mm
Safety locking mechanism	Pin lock
Seal material	Nitrile (NBR)
Valve type	2 way
Working pressure max psi	2000
Working pressure max BAR	138
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40

3000: frequently asked questions

When can 3000 be shipped?

3000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3000, subject to availability and destination.
