Danfoss 2UQS25HARD

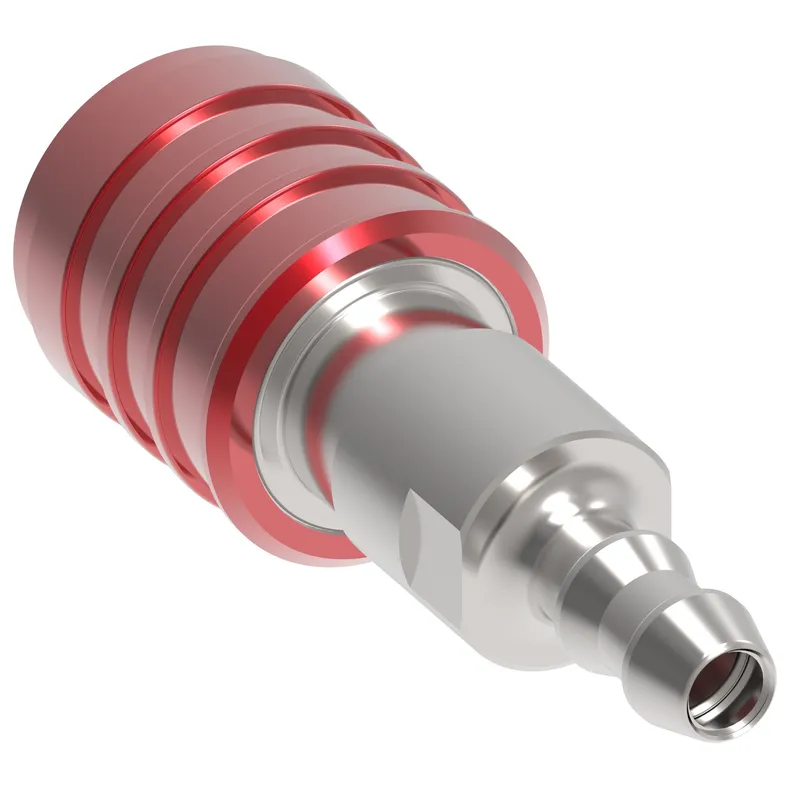

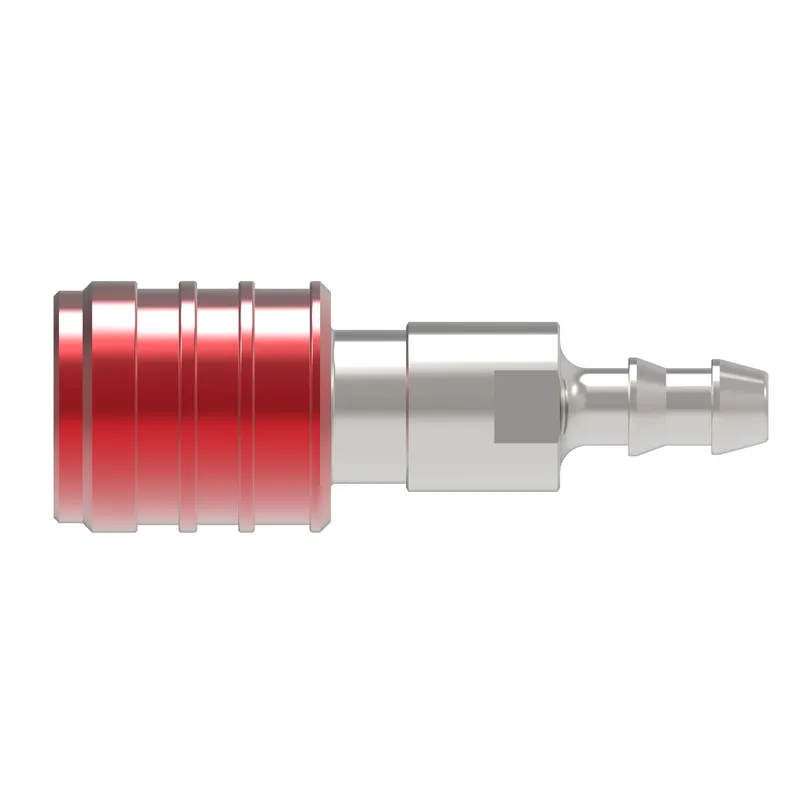

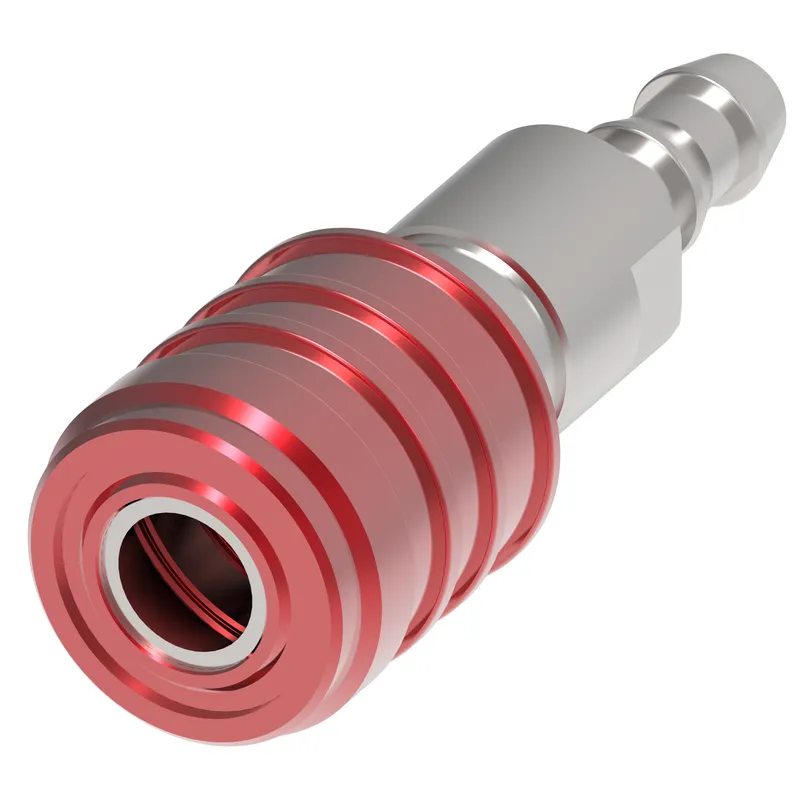

COUPLING,UQD,F,1/8,303,-4BARB,EPDM

MPN: 2UQS25HARD
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 2UQS25HARD?

Danfoss COUPLING,UQD,F,1/8,303,-4BARB,EPDM, manufacturer part number 2UQS25HARD. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789271051
Air inclusion max cc	4.00
Angle shape	Straight
Application	Cooling applications, Data centers, Electronics
Body size	1/8
Brand	Danfoss
Burst pressure min bar	60
Burst pressure min psi	870
Connection style	Manual connect
End type 1	Line/hose/tube
Flow rate GPM	0.60
Flow rate LPM	2.10
Fluid loss cc	7.00000
Hex size 1 IN	0.550
Hex size 1 MM	14.000
Item type	Female half
Latch type	Push to connect
Product material	303 Stainless steel
Seal material	Ethylene propylene (EPDM)
Sub brand	Hansen
Thread size 1	1/4 Hose
Valve type	2 way
Working pressure max psi	290
Working pressure max BAR	20
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
