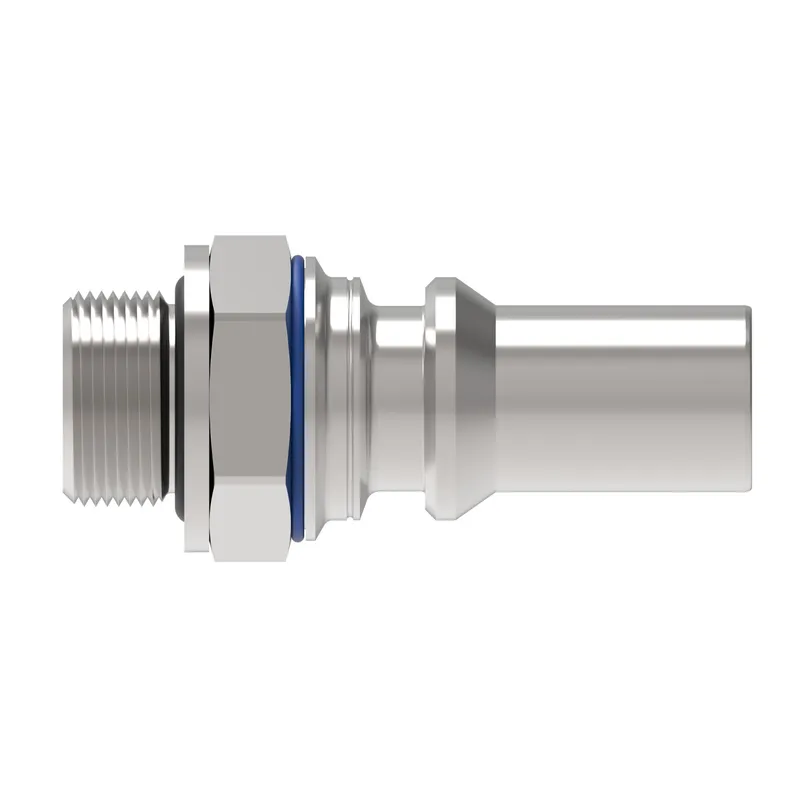

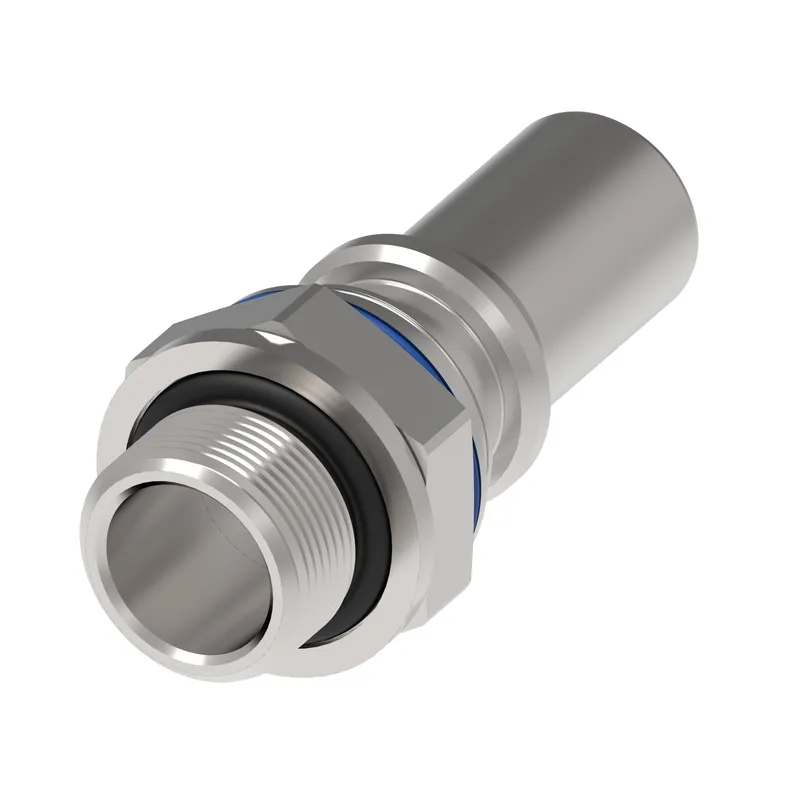

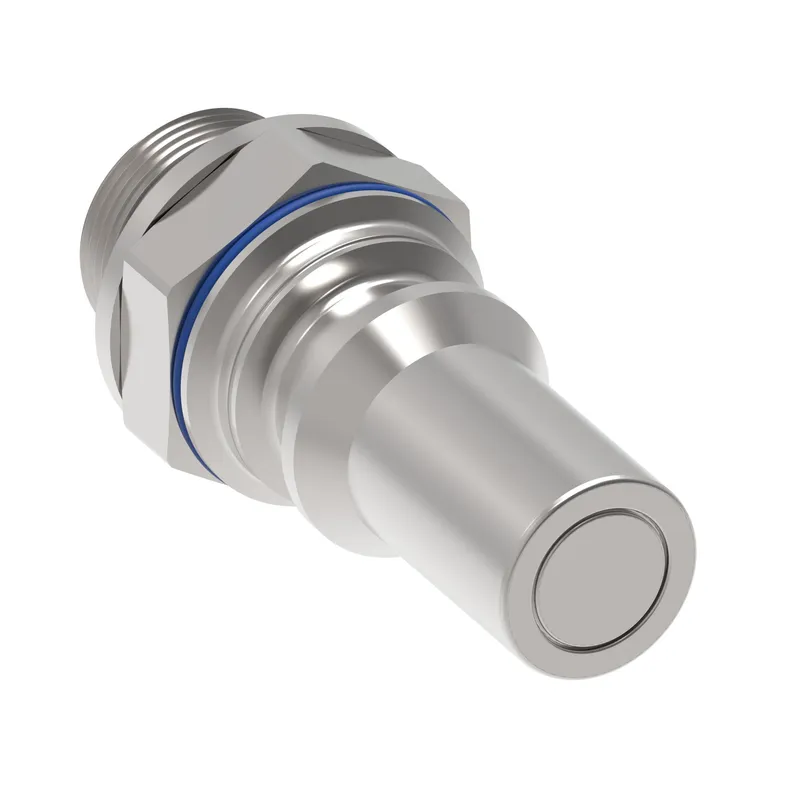

Danfoss 2UQP12MBSBL

COUPLING,UQD,M,1/8,303,-2MBS,EPDM

MPN: 2UQP12MBSBL
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 2UQP12MBSBL?

Danfoss COUPLING,UQD,M,1/8,303,-2MBS,EPDM, manufacturer part number 2UQP12MBSBL. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Air inclusion max cc	4.00
Angle shape	Straight
Application	Cooling applications, Data centers, Electronics
Body size	1/8
Brand	Danfoss
Burst pressure min bar	60
Burst pressure min psi	870
Connection style	Manual connect
End size 1	-2
End type 1	Male ORB BSPP
Flow rate GPM	0.60
Flow rate LPM	2.10
Fluid loss cc	7.00000
Hex size 1 IN	0.590
Hex size 1 MM	15.000
Item type	Male half
Latch type	Push to connect
Product material	303 Stainless steel
Seal material	Ethylene propylene (EPDM)
Sub brand	Hansen
Thread size 1	G 1/8
Valve type	2 way
Working pressure max psi	290
Working pressure max BAR	20
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40

2UQP12MBSBL: frequently asked questions

When can 2UQP12MBSBL be shipped?

2UQP12MBSBL is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 2UQP12MBSBL in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 2UQP12MBSBL and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 2UQP12MBSBL, subject to availability and destination.
